REAR WHEEL (RM85LK3)
RM85L 2004 (K4) USA (E03)

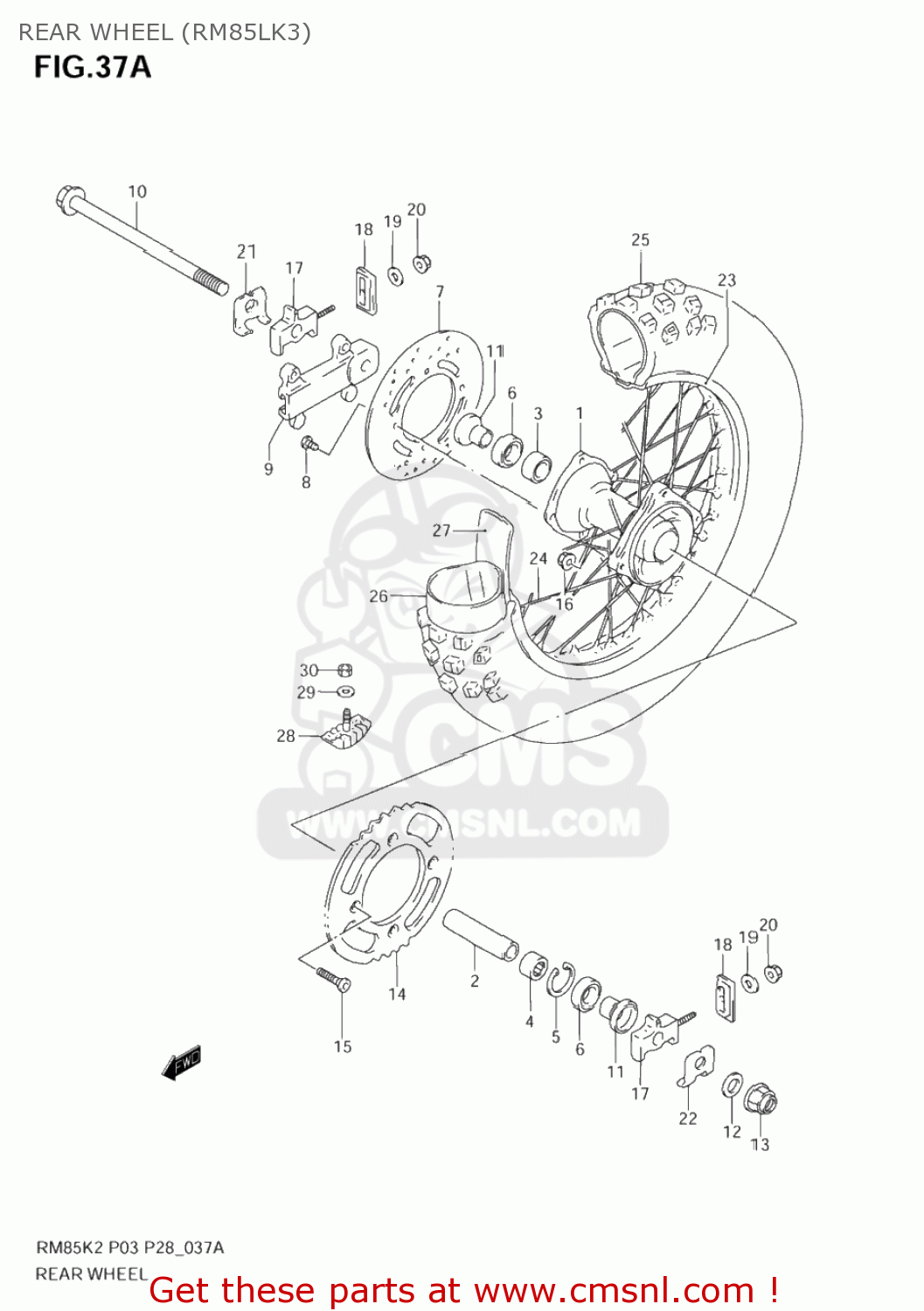

Rear wheel (rm85lk3) diagram RM85L 2004 (K4) USA (E03)
REAR WHEEL (RM85LK3) RM85L 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411102B43
ref: 1
HUB,RR WHEEL
€ 175.00
2
6473102B40
ref: 2
SPACER,RR HUB BEARING
€ 10.50
3
0812360027
ref: 3
BEARING
€ 16.00
4
0926215021
ref: 4
BEARING(15X35X11)
€ 14.00
5
0833141356
ref: 5
08331-41359
CIRCLIP
€ 2.00
6
0928320024
ref: 6
SEAL,OIL(20X35X7)
€ 5.50
7
6921102B40
ref: 7
69211-02B41
DISC,REAR BRAKE
€ 147.00
8
0212206123
ref: 8
02122-0612A
SCREW
€ 3.00
9
6972102B42
ref: 9
BRACKET,RR AXLE
€ 92.00
10
6471103B00
ref: 10
AXLE,RR
€ 28.50
11
6474103B00
ref: 11
64741-02B41
SPACER,REAR AX
€ 47.00
12
0916014033
ref: 12
09160-14062
WASHER
€ 3.00
13
0915914019
ref: 13
NUT
€ 8.50
14-1
6451103B00
ref: 14-1
SPROCKET,RR(47T)
€ 82.00
14-2
6451103B10
ref: 14-2
SPROCKET,RR(46T)
€ 82.00
14-3
6451103B20
ref: 14-3
SPROCKET,RR(48T)
€ 82.00
14-4
6451103B30
ref: 14-4
SPROCKET,RR(49T)
€ 82.00
15
0912008010
ref: 15
BOLT(8X30.5)
€ 2.50
16
0915908067
ref: 16
NUT
€ 5.50
17
6141002B02
ref: 17
ADJUSTER,CHAIN
€ 147.50
18
6142102B00
ref: 18
61421-02B0V
PLATE,CHAIN ADJUSTER
€ 7.00
19
0832201063
ref: 19
08322-0106B
WASHER
€ 2.00
20
0831921068
ref: 20
08319-2106A
NUT 6MM
€ 2.00
21
6471202B00
ref: 21
WASHER,CHAIN ADJUSTER RH
€ 2.50
22
6471302B00
ref: 22
WASHER,CHAIN ADJUSTER,L
€ 2.00
23
6531103B50
ref: 23
RIM,RR WHEEL(1.60X16)
€ 169.50
24
6532003B51
ref: 24
SPOKE ASSY,RR WHEEL
€ 36.50
25
6511003BA0
ref: 25
TIRE,RR(90/100 16 52M D737)
€ 119.00
25
6511003BA0
ref: 25
TIRE,RR(90/100 16 52M D737)
€ 119.00
26
6520003B90
ref: 26
TUBE ASSY,WHEEL INNER
€ 27.50
27
6526103B80
ref: 27
65261-03B50
PROTECTOR, INNER TUBE
€ 5.50
28
6527043D00
ref: 28
STOPPER,BEAD(1.85)
€ 30.50
29
0832201083
ref: 29
08322-0108A
WASHER
€ 1.50
30
0831000083
ref: 30
08310-0008A
NUT
€ 1.50
