CRANKSHAFT (MODEL S/T)
RMX250 1996 (T) USA (E03)

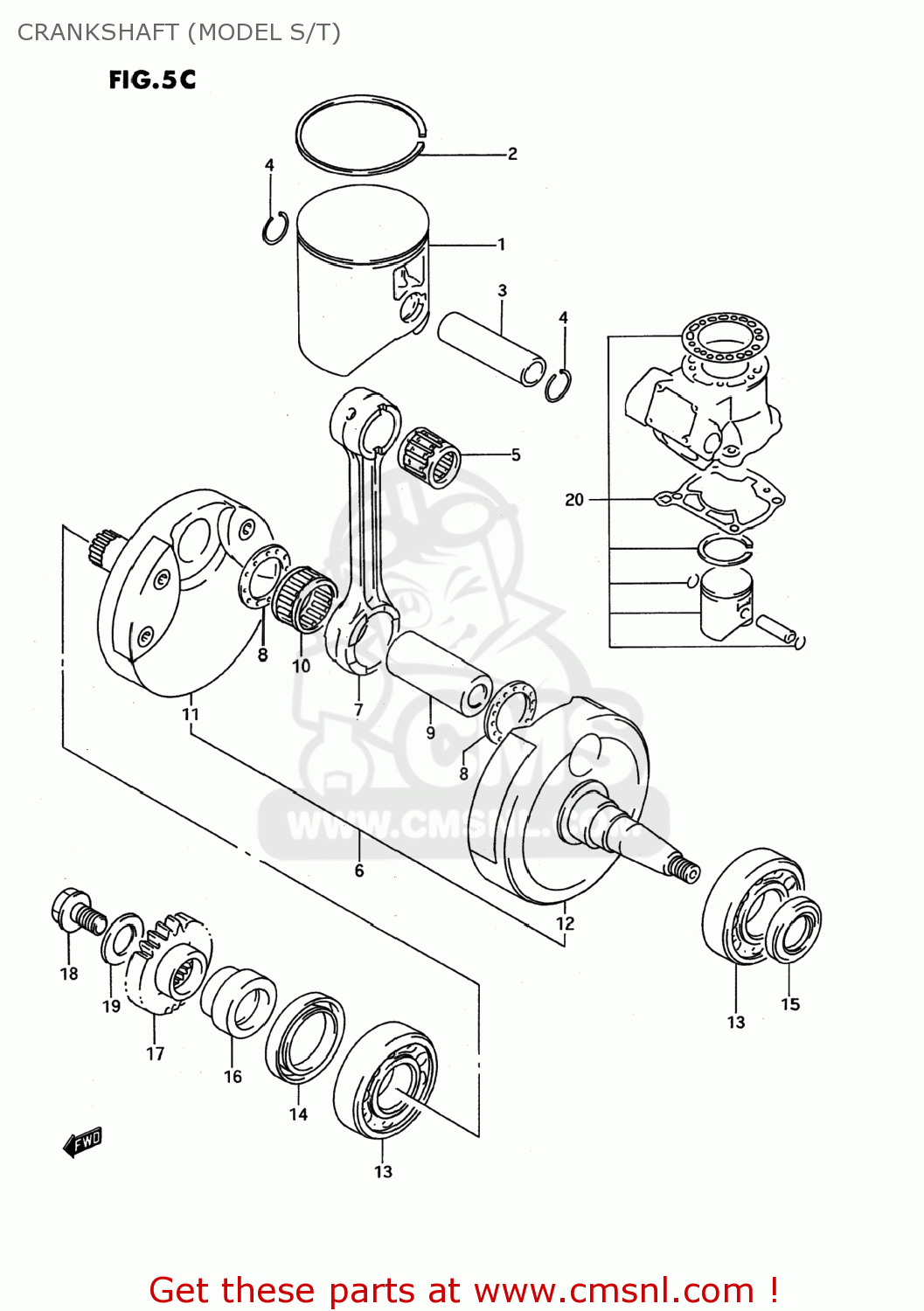

Crankshaft (model s/t) diagram RMX250 1996 (T) USA (E03)
CRANKSHAFT (MODEL S/T) RMX250 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211005D030F0
ref: 1-1
PISTON (67.00MM)
€ 84.50
1-2
1211029E200F0
ref: 1-2
PISTON
€ 71.50
2-1
1214141620
ref: 2-1
RING,PISTON
€ 22.50
2-2
1214128E00
ref: 2-2
RING,PISTON
€ 24.50
3
1215128C00
ref: 3
12151-37F00
PIN,PISTON
€ 13.00
4
0938118002
ref: 4
CIRCLIP
€ 1.50
5
0926318016
ref: 5
BEARING(18X23X22)
€ 14.00
6
1220029E10
ref: 6
CRANKSHAFT ASSEMBLY
€ 658.00
7
1216128C30
ref: 7
ROD,CONNECTING
€ 92.00
8
0916024027
ref: 8
WASHER(24X38.5X1.5)
€ 19.50
9
1221105D00
ref: 9
PIN,CRANK
€ 33.00
10
0926324026
ref: 10
BEARING(24X30X20)
€ 62.50
11
1222028E10
ref: 11
CRANKSHAFT,R
€ 278.00
12
1226029E10
ref: 12
CRANKSHAFT COMP,LEFT
€ 289.00
13
0926228029
ref: 13
09262-28036
BEARING
€ 101.00
14
0928338018
ref: 14
SEAL,OIL(38X52X8)
€ 19.50
15
0928325083
ref: 15
SEAL,OIL(25X37X6)
€ 5.00
16
1235928E10
ref: 16
SPACER,PRIMARY DRIVE GEAR
€ 15.00
17
2111114320
ref: 17
21111-14321
GEAR,PRIMARY DRIVE (NT:
€ 46.50
18
2114127C11
ref: 18
09103-10339
BOLT,PRIMARY DRIVE GEAR
€ 11.50
19
0916411004
ref: 19
WASHER
€ 6.00
20-1
1210029831
ref: 20-1
TOP END KIT,ENGINE
€ 137.50
20-2
1210029850
ref: 20-2
TOP END KIT,ENGINE
€ 301.50
