REAR BRAKE
RMX250 1996 (T) USA (E03)

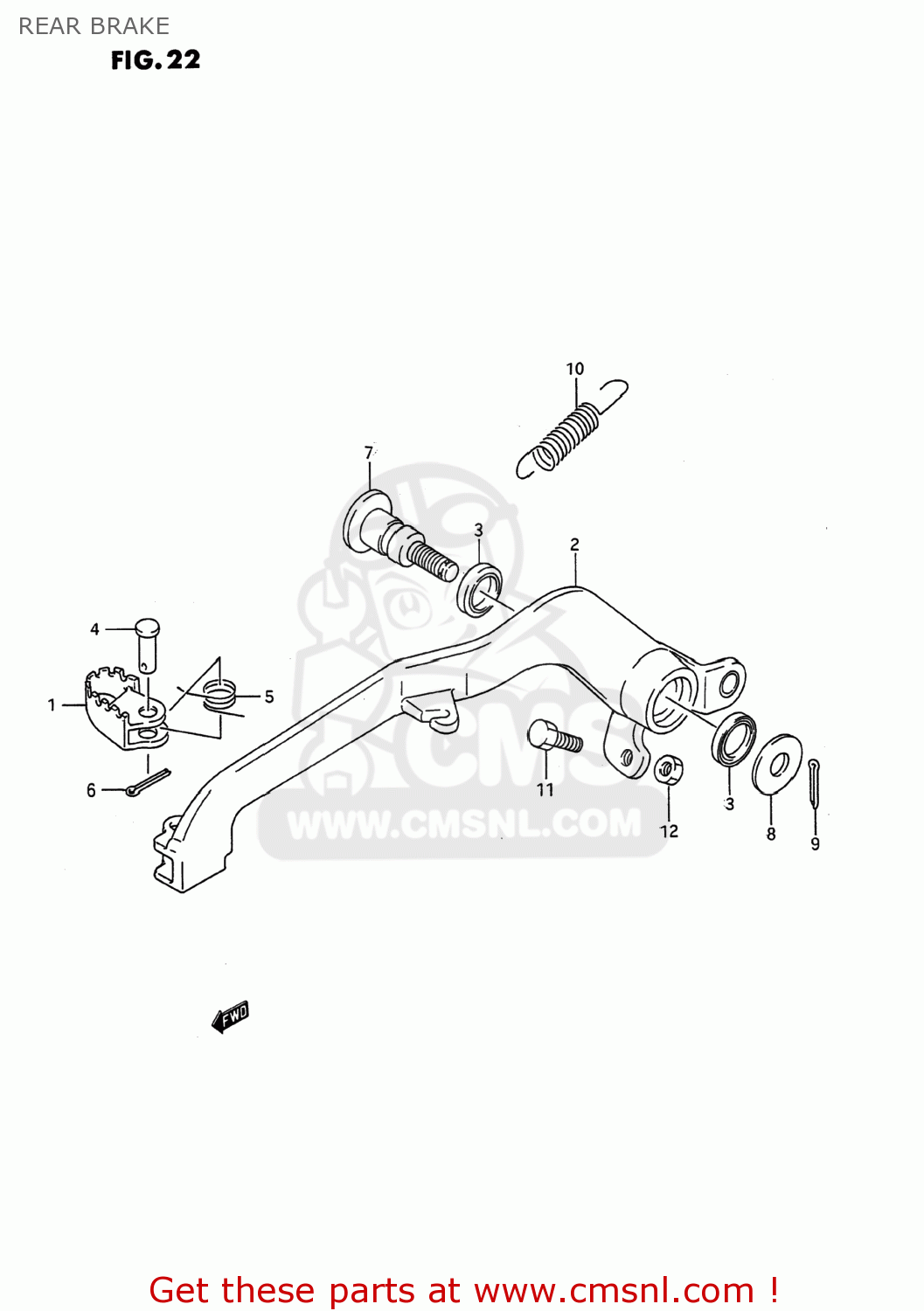

Rear brake diagram RMX250 1996 (T) USA (E03)
REAR BRAKE RMX250 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311027C00
ref: 1-1
PEDAL,BRAKE
€ 15.00
1-2
4311043D00
ref: 1-2
PEDAL,BRAKE
€ 6.00
2-1
4312028C00
ref: 2-1
ARM COMP,BRAKE PEDAL
€ 121.50
2-2
4312028C20
ref: 2-2
43120-28C00
ARM COMP,BRAKE PEDAL
€ 121.50
2-3
4312028C30
ref: 2-3
43120-28E10
ARM,BRAKE PEDAL
€ 136.00
2-4
4312028E10
ref: 2-4
ARM,BRAKE PEDAL
€ 136.00
3
0928415006
ref: 3
SEAL,OIL(15X21X3)
€ 3.50
4
0920006062
ref: 4
PIN(6X23.5)
€ 2.50
5-1
0944411005
ref: 5-1
SPRING
€ 3.00
5-2
0944411006
ref: 5-2
SPRING
€ 3.50
6
0411120158
ref: 6
04111-2015A
PIN
€ 1.50
7
4314227C00
ref: 7
SHAFT,BRAKE PEDAL
€ 15.00
8
0821110261
ref: 8
WASHER
€ 2.50
9
0411120208
ref: 9
04111-2020A
PIN 20X20
€ 1.50
10
0944311039
ref: 10
09443-11039-XC0
SPRING
€ 21.50
11
0910006009
ref: 11
BOLT(6X23)
€ 1.50
12-1
0831000067
ref: 12-1
NUT
€ 2.50
12-2
0831000063
ref: 12-2
08310-0006A
NUT 6MM
€ 2.00
