EXHAUST VALVE (MODEL L/M/N)
RMX250 1996 (T) USA (E03)

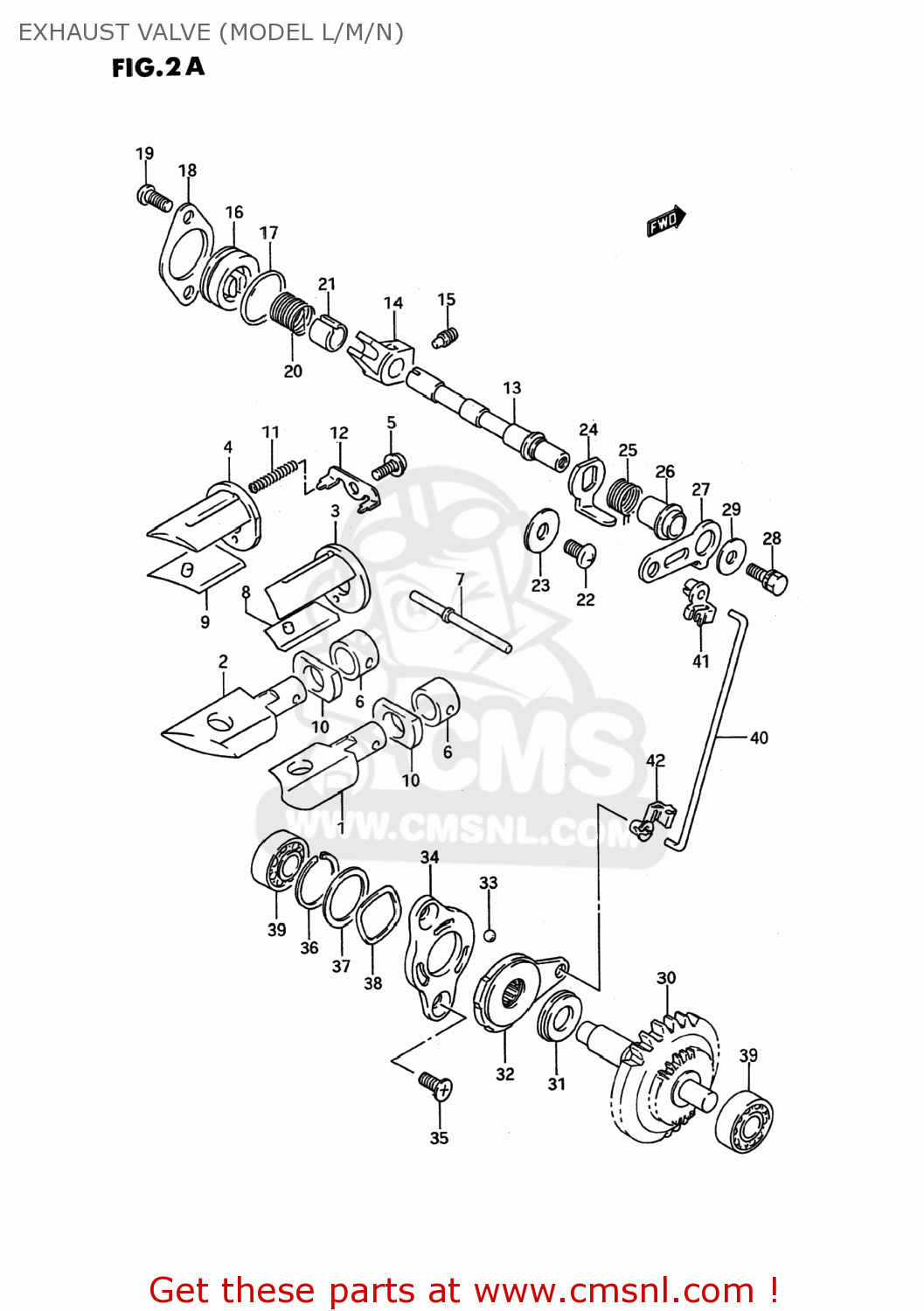

Exhaust valve (model l/m/n) diagram RMX250 1996 (T) USA (E03)
EXHAUST VALVE (MODEL L/M/N) RMX250 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1125428C10
ref: 1
VALVE,EXHAUST,R
€ 142.00
2
1125528C10
ref: 2
VALVE,EXHAUST,L
€ 142.00
3
1126128C10
ref: 3
GUIDE,EXHAUST VALVE,R
€ 125.00
4
1126228C10
ref: 4
GUIDE,EXHAUST VALVE,L
€ 126.00
5
0211215128
ref: 5
02142-05127
SCREW
€ 1.50
6
1126326C00
ref: 6
11263-29E00
HOLDER,EXHAUST VALVE
€ 13.50
7
1125301B31
ref: 7
11253-01B32
PIN,EXHAUST VALVE 48.5MM
€ 20.50
8
1128028C10
ref: 8
VALVE,EXHAUST NO.2,R
€ 76.00
9
1129028C10
ref: 9
VALVE,EXHAUST NO.2,L
€ 67.50
10
1127305D00
ref: 10
SPACER,EXHAUST VALVE NO.2
€ 0.00
11
0944003010
ref: 11
SPRING
€ 4.00
12
1125228C10
ref: 12
11252-28C11
STOPPER,EXHAUST VALVE
€ 7.50
13
1125928C00
ref: 13
11259-28C01
SHAFT,EXHAUST VALVE
€ 50.50
14
1126400B23
ref: 14
11264-00B24
ARM,EXHAUST VALVE SHAFT
€ 17.00
15
0913406013
ref: 15
SCREW(6X10)
€ 4.50
16
1125827C00
ref: 16
11258-27C01
CAP,EXHAUST VALVE
€ 52.00
17
0928023002
ref: 17
O RING(D:1.9,ID:22.6)
€ 2.50
18
1126500B21
ref: 18
11265-00B22
RETAINER,EXHAUST VALVE
€ 2.50
19
0211205128
ref: 19
02112-05127
SCREW
€ 2.50
20
0944416005
ref: 20
SPRING
€ 4.00
21
1126900B20
ref: 21
SPACER,EXHAUST VALVE SPRING
€ 19.00
22
0211206087
ref: 22
SCREW
€ 2.00
23
0821106202
ref: 23
WASHER
€ 2.00
24
1126700B20
ref: 24
11267-00B21
LEVER,EXHAUST VALVE NO
€ 5.50
25
0944415010
ref: 25
SPRING
€ 5.50
26
1126801B00
ref: 26
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
27
1126628C10
ref: 27
LEVER,EXHAUST VALVE NO.1
€ 22.50
28
0113405126
ref: 28
01570-05123
BOLT
€ 2.00
29
0916005017
ref: 29
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
30
1267028C10
ref: 30
GOVERNOR ASSY,EXHAUST VALVE
€ 61.00
31
0926310002
ref: 31
BEARING(10X22X2.8)
€ 8.50
32
1268001820
ref: 32
ACTUATOR,EXHAUST VALVE
€ 47.50
33
0611106003
ref: 33
BALL
€ 1.50
34
1268200B20
ref: 34
STARTER,EXHAUST VALVE ACTUATOR
€ 25.00
35
0912005003
ref: 35
SCREW(5X10)
€ 2.00
36
0938019003
ref: 36
CIRCLIP
€ 2.50
37
0918119004
ref: 37
SHIM(19.1X25X0.3)
€ 4.00
38
0916419001
ref: 38
WASHER
€ 7.00
39
0926208005
ref: 39
BEARING(8X22X7)
€ 12.50
40
1268528C10
ref: 40
ROD,EXHAUST VALVE
€ 6.00
41
1268601B00
ref: 41
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
42
1268701B00
ref: 42
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
