MUFFLER

RMX250 1996 (T) USA (E03)

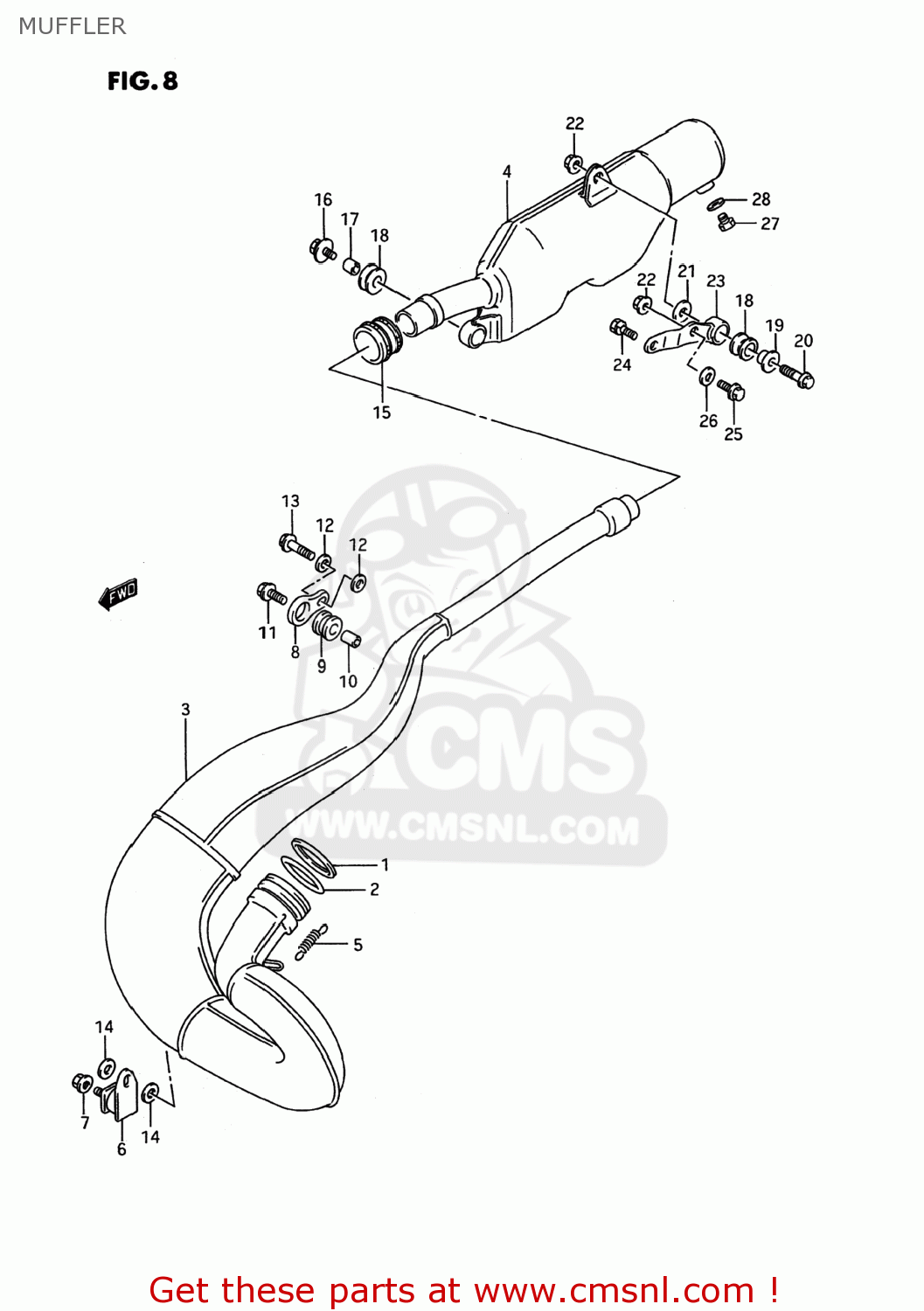

Muffler diagram RMX250 1996 (T) USA (E03)

MUFFLER RMX250 1996 (T) USA (E03)
MUFFLER RMX250 1996 (T) USA (E03)
MUFFLER RMX250 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1417228C00
ref: 1-1
WASHER,EXHAUST PIPE
1417228C00
€ 2.00
1-2
1417228C30
ref: 1-2
WASHER,EXHAUST PIPE
1417228C30
€ 2.00
2-1
1417128C01
ref: 2-1
O RING,EX PIPE
1417128C01
€ 20.50
2-2
1417128C30
ref: 2-2
O RING,EXHAUST PIPE
1417128C30
€ 19.00
3-1
1431005D00H01
ref: 3-1
BODY,MUFFLER,FIRST
€ 385.00
3-2
1431005D20H01
ref: 3-2
BODY,MUFFLER,FIRST
€ 179.50
3-3
1431005D40H01
ref: 3-3
BODY,MUFFLER 1ST
€ 0.00
4-1
1433005D02H01
ref: 4-1
BODY,MUFFLER,SECOND
€ 367.50
4-2
1433005D40H01
ref: 4-2
BODY COMP,MUFFLER,SECOND
€ 377.50
5-1
0944311024
ref: 5-1
09443-11024-XC0
SPRING
0944311024
€ 20.50
5-2
0944312042
ref: 5-2
09443-12042-XC0
SPRING
0944312042
€ 10.50
6
1477041101
ref: 6
DAMPER,MUFFLER SUPPORT
1477041101
€ 13.50
7
0831931087
ref: 7
NUT
0831931087
€ 2.50
8-1
1476101B00
ref: 8-1
PLATE,MUFFLER MTG
1476101B00
€ 10.50
8-2
1476127C00
ref: 8-2
PLATE,MUFFLER MTG
1476127C00
€ 7.00
9
1476201B01
ref: 9
CUSHION,MUFFLER
1476201B01
€ 3.00
10-1
0918006136
ref: 10-1
SPACER(6.4X9X16)
0918006136
€ 4.00
10-2
0918006062
ref: 10-2
09180-06268
SPACER (6.4X9X13.5)
0918006062
€ 2.00
11-1
0154706167
ref: 11-1
BOLT
0154706167
€ 2.00
11-2
0154706163
ref: 11-2
01547-0616B
BOLT
0154706163
€ 2.50
12-1
0916006027
ref: 12-1
09160-06077
WASHER (6.5X20X1.2)
0916006027
€ 2.00
12-2
0916006027
ref: 12-2
09160-06077
WASHER (6.5X20X1.2)
0916006027
€ 2.00
13-1
0913906057
ref: 13-1
SCREW(6X25)
0913906057
€ 2.50
13-2
0154706257
ref: 13-2
BOLT
0154706257
€ 2.50
13-3
0154706253
ref: 13-3
01547-0625B
SCREW
0154706253
€ 2.50
14-1
0916008065
ref: 14-1
09160-08126
WASHER
€ 1.50
14-2
0916008053
ref: 14-2
09160-08039
WASHER (8.5X19X2.3)
0916008053
€ 2.00
15-1
1477128C01
ref: 15-1
14771-28C02
CONNECTOR,MUFFLER
1477128C01
€ 52.50
15-2
1477128C02
ref: 15-2
CONNECTOR,MUFFLER
1477128C02
€ 52.50
16
0911808080
ref: 16
BOLT(8X35)
0911808080
€ 2.50
17
0918008102
ref: 17
09180-08194
SPACER (8.6X12X17.5)
0918008102
€ 3.00
18
0932012043
ref: 18
CUSHION
0932012043
€ 8.00
19
0918008151
ref: 19
SPACER(8.6X12X17.5)
0918008151
€ 6.00
20-1
0151708355
ref: 20-1
01550-0835A
BOLT
€ 3.50
20-2
0155008353
ref: 20-2
01550-0835A
BOLT
0155008353
€ 3.50
21
0916008002
ref: 21
09160-08135
WASHER (8.5X29X1.6)
0916008002
€ 2.00
22-1
0831616088
ref: 22-1
08316-10087
NUT
0831616088
€ 2.50
22-2
0831610083
ref: 22-2
08316-1008B
NUT
0831610083
€ 3.00
23
1476005D00
ref: 23
BRACKET COMP,MUFFLER SUPPORT
1476005D00
€ 15.50
24-1
0151706166
ref: 24-1
BOLT
€ 2.50
24-2
0155006163
ref: 24-2
01550-0616A
BOLT
0155006163
€ 2.50
25-1
0151708256
ref: 25-1
01550-0825A
BOLT
€ 2.50
25-2
0155008203
ref: 25-2
01550-0820A
BOLT
0155008203
€ 3.00
26
0916008054
ref: 26
WASHER(8.5X20X1.6)
0916008054
€ 1.50
27
0924712103
ref: 27
PLUG(12X9)
0924712103
€ 3.50
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
