Buy Suzuki RMX Parts Online


EXHAUST VALVE (MODEL P/R/S/T)

RMX250 1996 (T) USA (E03)

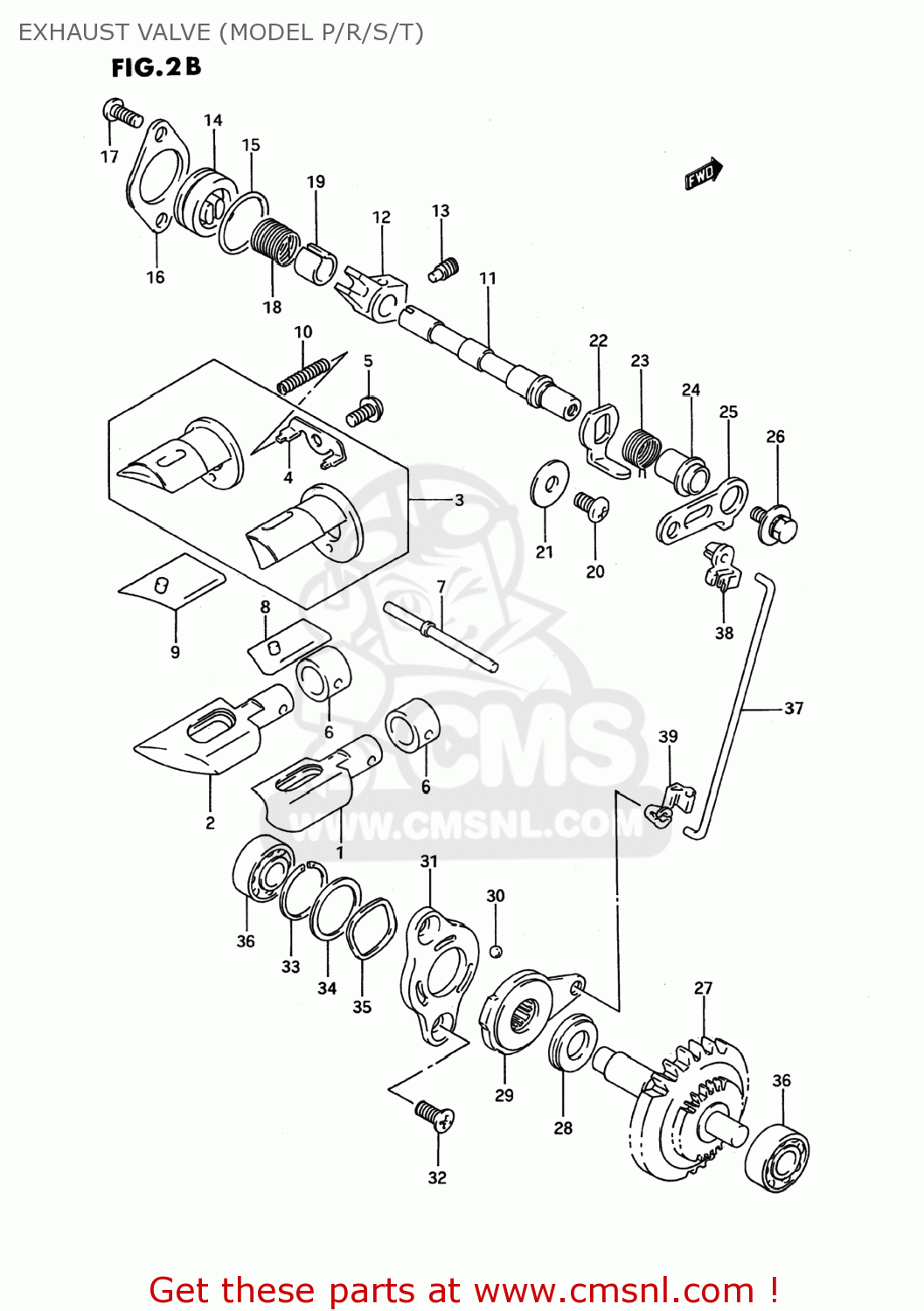

Exhaust valve (model p/r/s/t) diagram RMX250 1996 (T) USA (E03)

EXHAUST VALVE (MODEL P/R/S/T) RMX250 1996 (T) USA (E03)
EXHAUST VALVE (MODEL P/R/S/T) RMX250 1996 (T) USA (E03)
EXHAUST VALVE (MODEL P/R/S/T) RMX250 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1125429E01
ref: 1-1
VALVE,EXHAUST,LOWER,RIGHT
€ 166.50
1-2
1125429E20
ref: 1-2
VALVE,EXHAUST,LOWER,RIGHT
1125429E20
€ 161.00
2-1
1125529E01
ref: 2-1
VALVE,EXHAUST,LOWER,LEFT
€ 166.50
2-2
1125529E20
ref: 2-2
VALVE,EXHAUST LOW,L
€ 161.00
3
1126029810
ref: 3
GUIDE SET,EXHAUST VALVE
1126029810
€ 289.00
4
1125228C11
ref: 4
STOPPER,EXHAUST VALVE NO.2
1125228C11
€ 7.50
5-1
0211215128
ref: 5-1
02142-05127
SCREW
€ 1.50
5-2
0214215123
ref: 5-2
02142-1512B
SCREW
0214215123
€ 2.00
5-3
0214205123
ref: 5-3
02142-0512A
SCREW 5X12
0214205123
€ 1.50
6
1126329E00
ref: 6
SPACER,EXHAUST VALVE
1126329E00
€ 13.50
7
1125301B31
ref: 7
11253-01B32
PIN,EXHAUST VALVE 48.5MM
1125301B31
€ 20.50
8-1
1128029E01
ref: 8-1
11280-29E02
VALVE,EXHAUST,MIDDLE,RIGHT
€ 78.50
8-2
1128029E11
ref: 8-2
VALVE,EXHAUST MIDDLE,R
1128029E11
€ 89.50
9-1
1129029E01
ref: 9-1
11290-29E02
VALVE,EXHAUST,MIDDLE,LEFT
€ 81.00
9-2
1129029E11
ref: 9-2
VALVE,EXHAUST MIDDLE,L
1129029E11
€ 79.00
10
0944003010
ref: 10
SPRING
0944003010
€ 4.00
11
1125928C00
ref: 11
11259-28C01
SHAFT,EXHAUST VALVE
€ 50.50
12
1126400B23
ref: 12
11264-00B24
ARM,EXHAUST VALVE SHAFT
1126400B23
€ 17.00
13
0913406013
ref: 13
SCREW(6X10)
0913406013
€ 4.50
14
1125827C00
ref: 14
11258-27C01
CAP,EXHAUST VALVE
1125827C00
€ 52.00
15
0928023002
ref: 15
O RING(D:1.9,ID:22.6)
0928023002
€ 2.50
16
1126500B21
ref: 16
11265-00B22
RETAINER,EXHAUST VALVE
€ 2.50
17-1
0211205128
ref: 17-1
02112-05127
SCREW
€ 2.50
17-2
0211205123
ref: 17-2
02112-0512A
SCREW
0211205123
€ 1.50
17-3
0216205123
ref: 17-3
02162-0512A
BOLT
0216205123
€ 2.00
18
0944416005
ref: 18
SPRING
0944416005
€ 4.00
19
1126900B20
ref: 19
SPACER,EXHAUST VALVE SPRING
1126900B20
€ 19.00
20-1
0211206087
ref: 20-1
SCREW
0211206087
€ 2.00
20-2
0154706103
ref: 20-2
01547-0610B
BOLT
0154706103
€ 3.00
21
0821106202
ref: 21
WASHER
0821106202
€ 2.00
22
1126700B21
ref: 22
LEVER,EXHAUST VALVE NO.2
1126700B21
€ 5.50
23
0944415010
ref: 23
SPRING
0944415010
€ 5.50
24
1126801B00
ref: 24
11268-01B01
SPACER,EXHAUST VALVE
1126801B00
€ 8.50
25
1126628C10
ref: 25
LEVER,EXHAUST VALVE NO.1
1126628C10
€ 22.50
26
0911805005
ref: 26
BOLT(5X12)
0911805005
€ 4.00
27-1
1267028C10
ref: 27-1
GOVERNOR ASSY,EXHAUST VALVE
1267028C10
€ 61.00
27-2
1267029E10
ref: 27-2
12670-29E11
GOVERNOR ASSEMBLY,EXHAUST
€ 97.00
28
0926310002
ref: 28
BEARING(10X22X2.8)
0926310002
€ 8.50
29
1268001820
ref: 29
ACTUATOR,EXHAUST VALVE
1268001820
€ 47.50
30
0611106003
ref: 30
BALL
0611106003
€ 1.50
31
1268200B20
ref: 31
STARTER,EXHAUST VALVE ACTUATOR
1268200B20
€ 25.00
32
0912005003
ref: 32
SCREW(5X10)
0912005003
€ 2.00
33
0938019003
ref: 33
CIRCLIP
0938019003
€ 2.50
34
0918119004
ref: 34
SHIM(19.1X25X0.3)
0918119004
€ 4.00
35
0916419001
ref: 35
WASHER
0916419001
€ 7.00
36
0926208005
ref: 36
BEARING(8X22X7)
0926208005
€ 12.50
37
1268528C10
ref: 37
ROD,EXHAUST VALVE
1268528C10
€ 6.00
38
1268601B00
ref: 38
BUSH,EXHAUST VALVE ROD NO.1
1268601B00
€ 2.00
39
1268701B00
ref: 39
BUSH,EXHAUST VALVE ROD NO.2
1268701B00
€ 2.00
