FUEL COCK

RMX250 1996 (T) USA (E03)

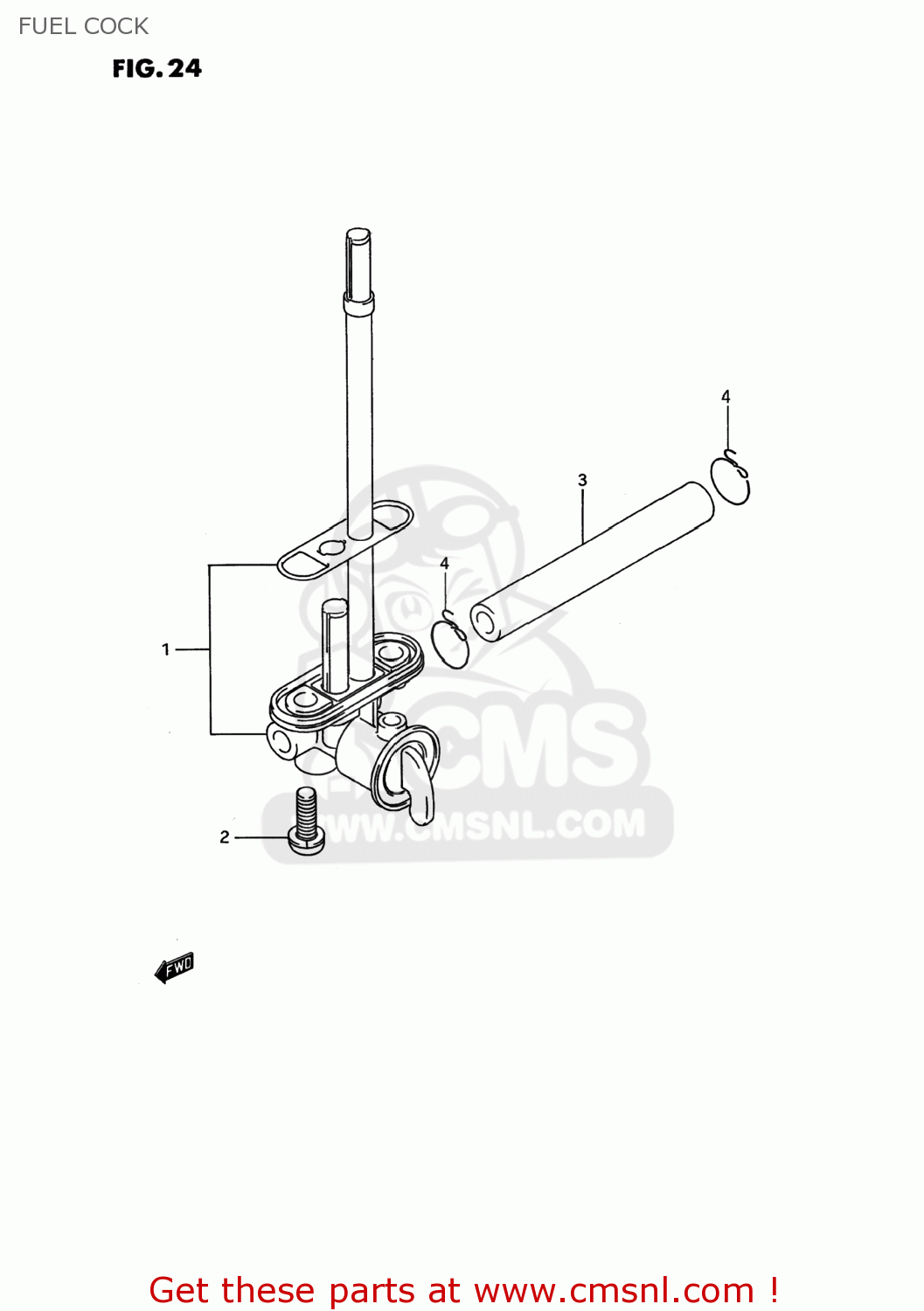

Fuel cock diagram RMX250 1996 (T) USA (E03)

FUEL COCK RMX250 1996 (T) USA (E03)

FUEL COCK RMX250 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4430005D00
ref: 1

COCK ASSY,FUEL

€ 77.50

2-1

0211236167
ref: 2-1

SCREW

€ 2.00

2-2

0211236163
ref: 2-2
02112-3616A

SCREW

€ 2.50

3-1

0935465113600
ref: 3-1

HOSE(6.5X11.5X600)

€ 26.00

3-2

4442105D00
ref: 3-2
44421-05D01

HOSE

€ 6.00

3-3

4442105D01
ref: 3-3

HOSE,FUEL

€ 6.00

4

0940111101
ref: 4

CLIP

€ 2.50
