CONTROL CABLE
RV125 1977 (B) USA (E03)

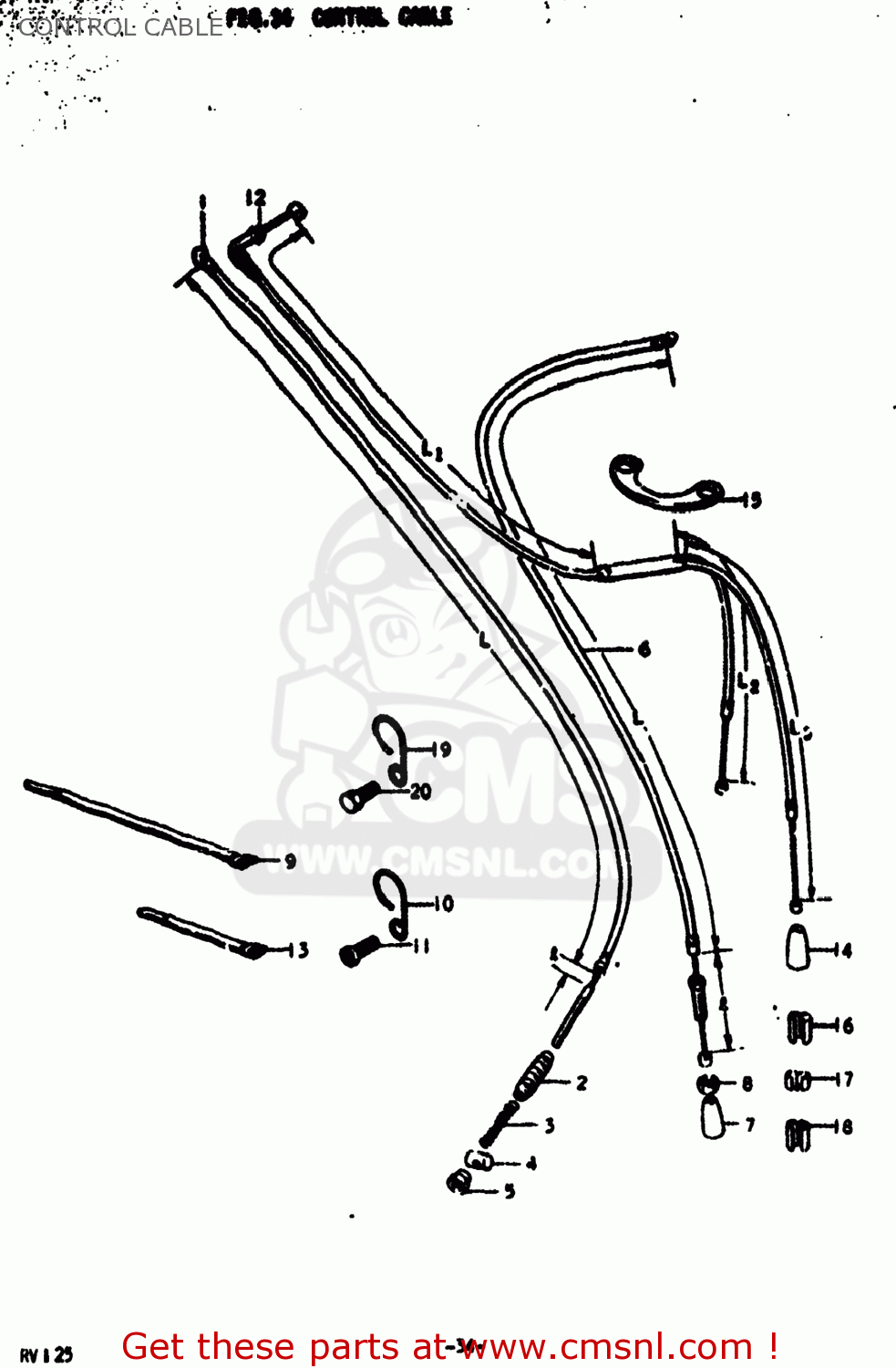

Control cable diagram RV125 1977 (B) USA (E03)
CONTROL CABLE RV125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5810028100
ref: 1
58100-28090
CABLE ASSEMBLY,FRONT BRAKE
€ 23.50
1
5810028100
ref: 1
58100-28090
CABLE ASSEMBLY,FRONT BRAKE
€ 23.50
2
0928707001
ref: 2
SEAL,DUST(7X16X75)
€ 2.00
3
0944006003
ref: 3
SPRING
€ 2.00
4
0920910001
ref: 4
PIN,10X19
€ 2.00
5
0915005101
ref: 5
NUT
€ 3.00
6
5820028000
ref: 6
CABLE ASSY,CLUTCH
€ 22.50
7
0928707002
ref: 7
SEAL,DUST(7X18X30)
€ 2.50
8
0831211088
ref: 8
08310-00087
NUT
€ 2.00
9
0940718301
ref: 9
CLAMP
€ 6.00
10-1
5145531000
ref: 10-1
51455-31010
GUIDE,CABLE
€ 5.00
10-2
0940313401
ref: 10-2
CLIP
€ 3.50
11
0211206128
ref: 11
02112-06127
SCREW 6X12
€ 2.00
12
5830028000
ref: 12
58300-28002
CABLE ASSEMBLY,THROTTLE
€ 35.00
13
0940711302
ref: 13
09407-18301
CLAMP
€ 6.00
14
0928707002
ref: 14
SEAL,DUST(7X18X30)
€ 2.50
15
5862128000
ref: 15
GUIDE,CABLE
€ 5.00
16
0940800001
ref: 16
CLIP
€ 2.50
17
0940800002
ref: 17
CLIP
€ 2.00
18
0940800004
ref: 18
CLAMP
€ 1.50
19
5145527300
ref: 19
GUIDE,CABLE
€ 0.00
20
0111206108
ref: 20
01500-06107
BOLT
€ 2.00
