FRONT FORK (RV125K)
RV125 1977 (B) USA (E03)

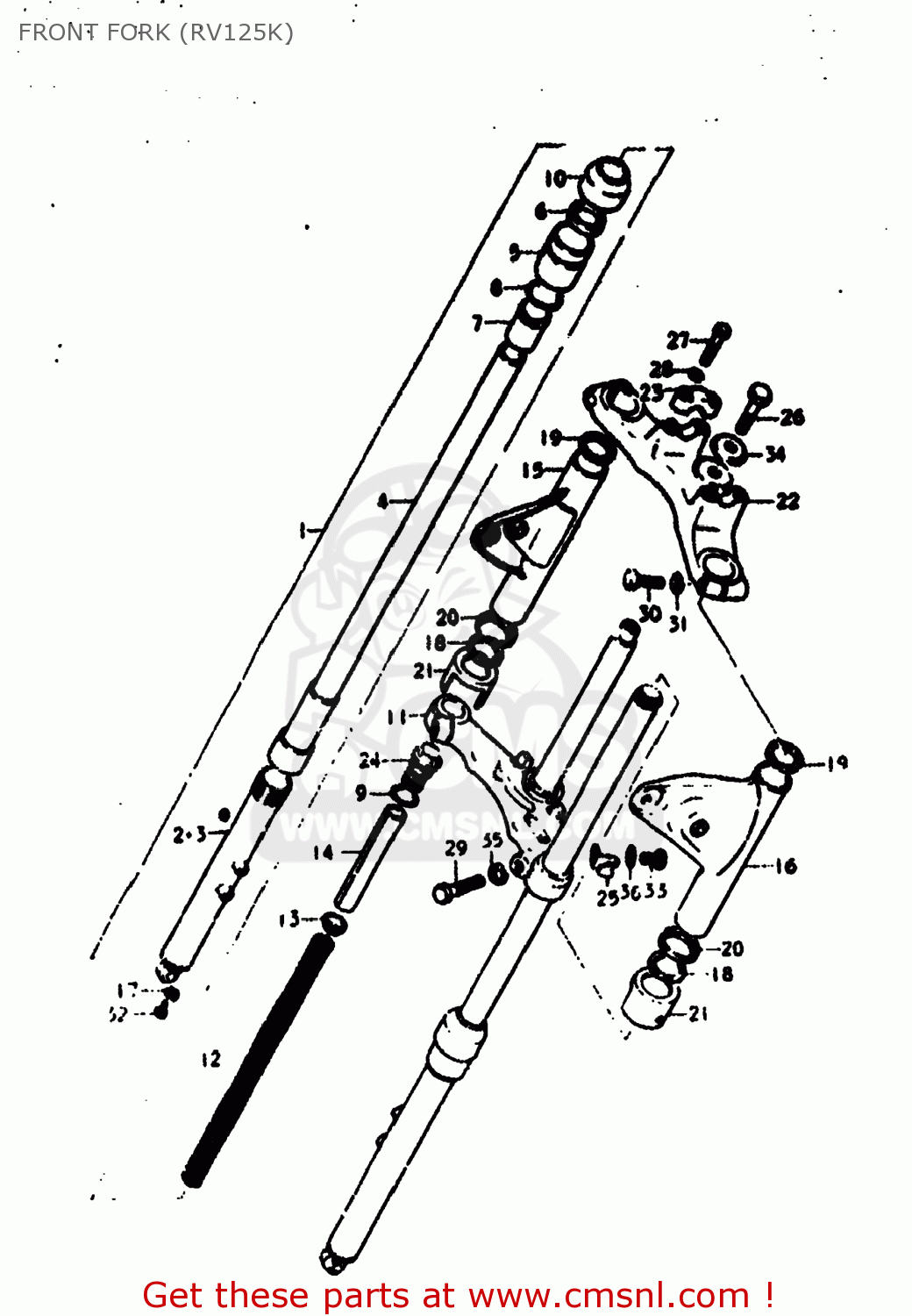

Front fork (rv125k) diagram RV125 1977 (B) USA (E03)
FRONT FORK (RV125K) RV125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110027310709
ref: 1
51106-27310
DAMPER SET
€ 144.50
2
5113025610
ref: 2
TUBE,OUTER,RIGHT
€ 39.00
3
5114025610
ref: 3
TUBE,OUTER,LEFT
€ 39.00
4
5111025210
ref: 4
TUBE,FORK,INNER
€ 129.50
5
5115025011
ref: 5
NUT,FORK OUTER TUBE
€ 19.50
6
5115308011
ref: 6
SEAL,OIL
€ 10.50
7
5115225010
ref: 7
51152-25011
BUSHING,GUIDE
€ 6.00
8
5115407010
ref: 8
O RING,OIL SEAL LWR
€ 7.00
9
5118125010
ref: 9
51181-29400
O-RING,FORK INNER TUBE
€ 2.50
10
5117325010
ref: 10
SEAL,DUST
€ 10.00
11
5141027310
ref: 11
51410-27750
STEM,STEERING
€ 128.00
12-1
5117127310
ref: 12-1
51171-27311
SPRING,FRONT FORK
€ 8.50
12-2
5117127311
ref: 12-2
SPRING,FRONT FORK
€ 8.50
13
5117225210
ref: 13
GUIDE,SPRING
€ 0.00
14-1
5117625010
ref: 14-1
SPACER,SPRING
€ 0.00
14-2
5117627670
ref: 14-2
SPACER,SPRING
€ 5.50
15
5153027310709
ref: 15
51500-27820-126
BRACKET,HEADLAMP HOUSING
€ 34.50
16
5154027310709
ref: 16
51500-27820-126
BRACKET,HEADLAMP,LEFT
€ 34.50
17
5118303010
ref: 17
GASKET,DRAIN,PLUG (NAS)
€ 3.00
18
5155307110
ref: 18
CUSHION,HEADLAMP BRACKET
€ 1.50
19
5155120210
ref: 19
SEAT,HEADLAMP BRACKET
€ 4.00
20
5155125010
ref: 20
SEAT,HEADLAMP BRACKET
€ 0.00
21
5155427310
ref: 21
CUSHION,HEADLAMP BRACKET
€ 4.50
22
5131127310
ref: 22
HEAD,STEERING STEM
€ 69.50
23
5621127110
ref: 23
HOLDER,HANDLEBAR
€ 12.50
24
5135125011
ref: 24
BOLT,FR FORK
€ 16.50
25
5145305110
ref: 25
CLIP,BRAKE CABLE
€ 4.50
26
5135120010
ref: 26
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
27
0122108358
ref: 27
Bolt
€ 3.50
28
0832121086
ref: 28
08321-0108A
WASHER,LOCK,8.
€ 2.50
29-1
5145128011
ref: 29-1
BOLT,FORK INNER TUBE F
€ 11.50
29-2
5145128012
ref: 29-2
BOLT,FR FORK LWR(12X33)
€ 11.50
30-1
5145115112
ref: 30-1
BOLT,FORK INNER TUBE F
€ 2.50
30-2
5145115113
ref: 30-2
01104-10388
BOLT,FORK INNER TUBE F
€ 2.50
31
0832121108
ref: 31
08321-01107
LOCK WASHER
€ 2.00
32
0211104087
ref: 32
02112-04087
SCREW
€ 1.50
33
0211206108
ref: 33
02112-06107
SCREW
€ 1.50
34
5135622011
ref: 34
WASHER
€ 6.00
35
0832121128
ref: 35
08321-01127
WASHER,LOCK 12
€ 2.50
36
0832121068
ref: 36
08321-01067
LOCK WASHER
€ 2.50
