RV125 1977 (B) USA (E03)

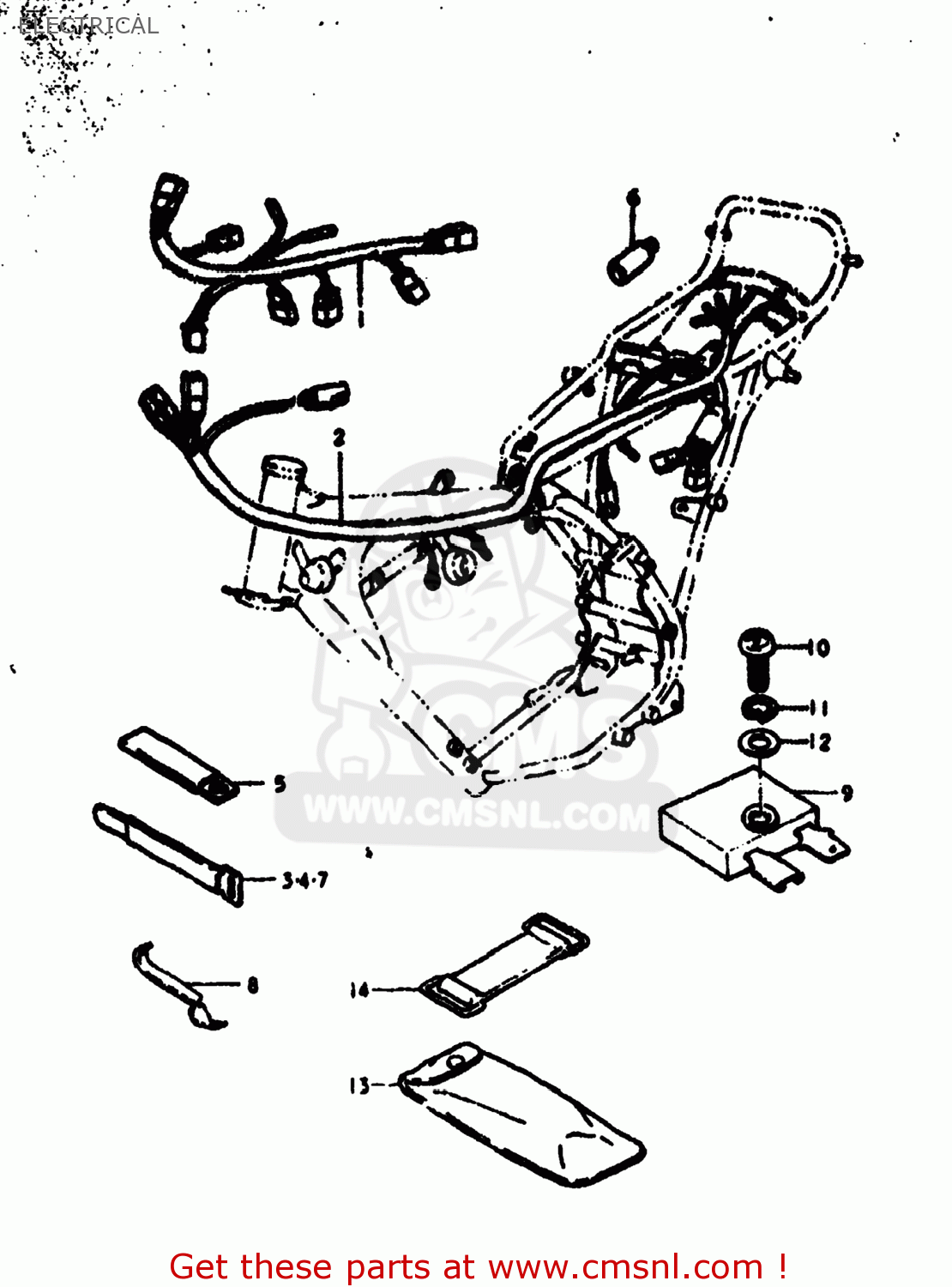

Electrical diagram RV125 1977 (B) USA (E03)
ELECTRICAL RV125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661027610
ref: 1-1
36610-27612
HARNESS,WIRING
€ 30.50
1-1
3661027610
ref: 1-1
36610-27612
HARNESS,WIRING
€ 30.50
1-2
3661027611
ref: 1-2
36610-27612
HARNESS,WIRING
€ 30.50
2-1
3662027300
ref: 2-1
HARNESS,WIRING NO.2
€ 52.00
2-2
3662027700
ref: 2-2
36620-27603
HARNESS,WIRING NO.2
€ 52.00
2-3
3662027603
ref: 2-3
HARNESS,WIRING NO.2
€ 52.00
3
0940718301
ref: 3
CLAMP
€ 6.00
3
0940718301
ref: 3
CLAMP
€ 6.00
4
0940711302
ref: 4
09407-18301
CLAMP
€ 6.00
4
0940711302
ref: 4
09407-18301
CLAMP
€ 6.00
5
0940300069
ref: 5
CLAMP
€ 8.50
6
3661834000
ref: 6
BOOT,WIRING HARNESS
€ 3.00
7
0940725301
ref: 7
CLAMP(L:250)
€ 4.50
8
3388122200
ref: 8
BAND
€ 1.50
9-1
3280027160
ref: 9-1
32800-16A00
RECTIFIER ASSEMBLY
€ 10.50
9-2
3280027161
ref: 9-2
RECTIFIER ASSEMBLY
€ 10.50
9-3
3280019061
ref: 9-3
32800-16A00
RECTIFIER ASSEMBLY
€ 10.50
10
0211105207
ref: 10
02112-05207
SCREW
€ 3.00
11
0832121058
ref: 11
08321-0105A
LOCK WASHER
€ 2.00
12
0832221058
ref: 12
08322-01057
WASHER
€ 2.50
13
0980000108
ref: 13
09800-21028
TOOL SET
€ 43.50
14
0946200033
ref: 14
BAND
€ 6.50
