RV125 1977 (B) USA (E03)

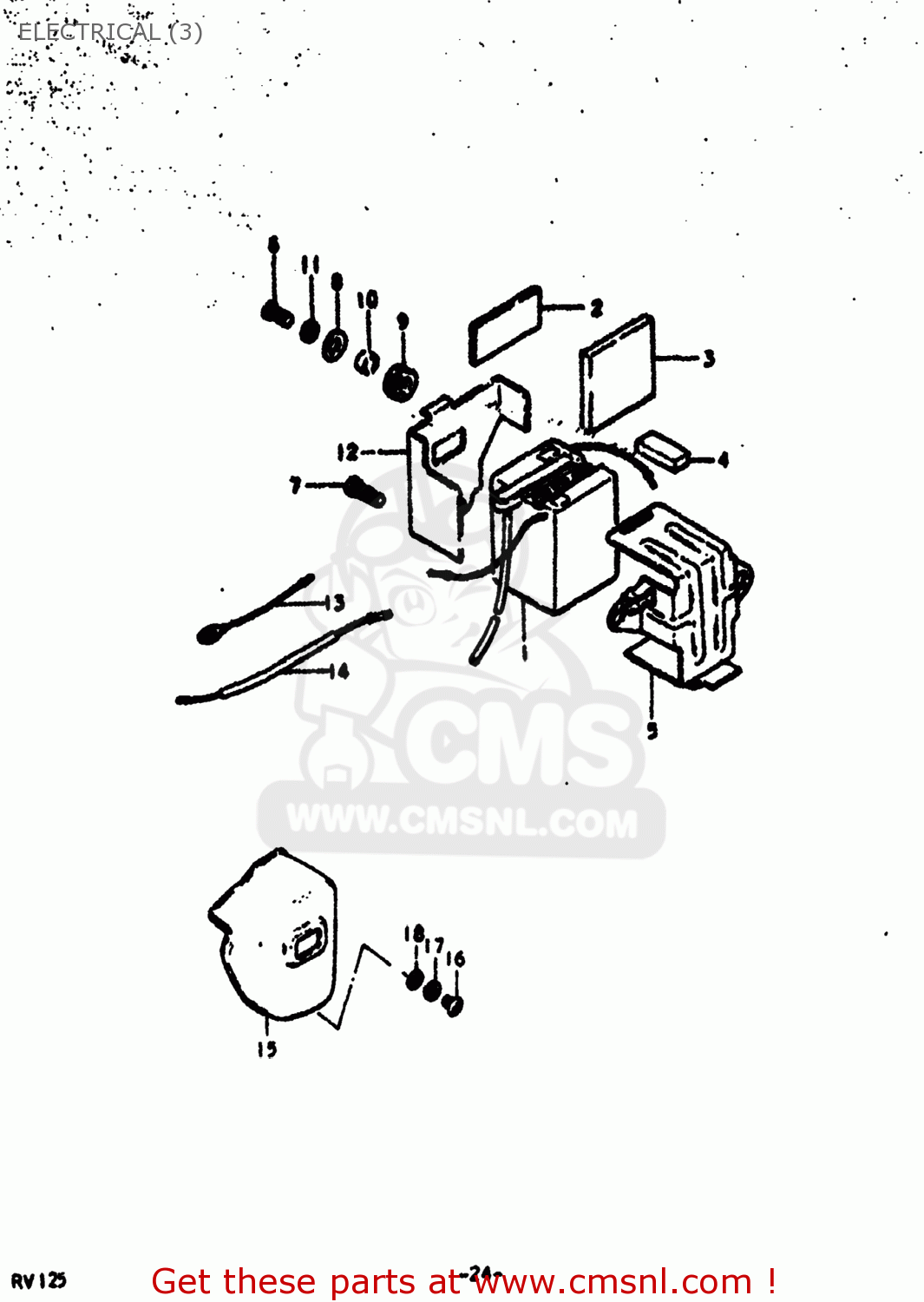

Electrical (3) diagram RV125 1977 (B) USA (E03)
ELECTRICAL (3) RV125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361003010
ref: 1
BATTERY ASSY(6N4-2A4.2AH)
€ 42.00
2
3365104100
ref: 2
CUSHION,BATTERY
€ 5.00
3
3365125000
ref: 3
CUSHION,BATTERY
€ 1.50
4
3365228000
ref: 4
33651-37000
CUSHION 20X45X6
€ 6.00
5
4154027300
ref: 5
HOLDER,BATTERY
€ 38.50
6
0111206168
ref: 6
01500-06167
BOLT
€ 3.00
7
0111206208
ref: 7
01500-06207
BOLT
€ 2.00
8
0916006027
ref: 8
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
9
0932008007
ref: 9
09320-08021
CUSHION
€ 4.00
10
0918007005
ref: 10
09180-06259
SPACER (7X9X7)
€ 2.50
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
4156027300
ref: 12
BRACKET,BATTERY HOLDER
€ 5.50
13
3686227690
ref: 13
LEAD WIRE
€ 9.00
14
3686127300
ref: 14
WIRE,BATTERY LEAD
€ 3.00
15-1
4156627300163
ref: 15-1
41566-27300
PLATE,BATTERY HOLDER
€ 57.00
15-2
4156627300293
ref: 15-2
41566-27300
PLATE,BATTERY HOLDER
€ 57.00
15-3
415662730000N
ref: 15-3
41566-27300
PLATE,BATTERY HOLDER
€ 57.00
15-4
415662730003J
ref: 15-4
41566-27300
PLATE,BATTERY HOLDER
€ 57.00
16
0211206168
ref: 16
02112-06167
SCREW
€ 2.50
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
0916906011
ref: 18
WASHER
€ 6.50
