CRANKCASE COVER (MODEL Z)
SP250 1982 (Z) USA (E03)

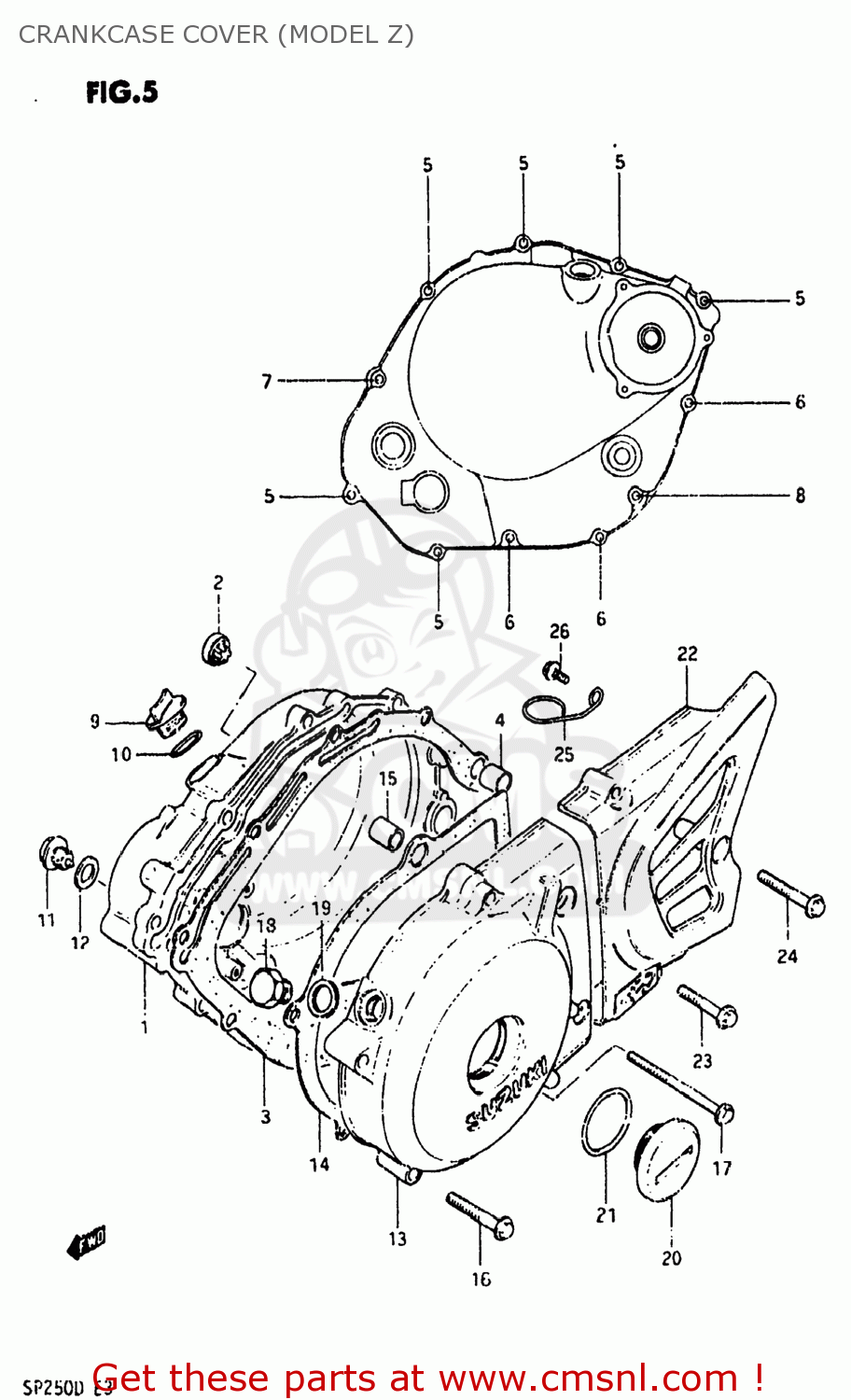

Crankcase cover (model z) diagram SP250 1982 (Z) USA (E03)
CRANKCASE COVER (MODEL Z) SP250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134038200
ref: 1
11340-38201
COVER,CLUTCH
€ 79.00
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148238200
ref: 3
11482-38212
GASKET,CLUTCH COVER (MCA)
€ 33.50
4
0920613001
ref: 4
04211-13189
PIN
€ 2.50
5
0154706258
ref: 5
01547-06257
BOLT
€ 2.50
6
0154706358
ref: 6
01547-06357
BOLT (6X35)
€ 2.50
7
0154706408
ref: 7
01547-06407
BOLT (6X40)
€ 2.50
8
0154706458
ref: 8
01547-06457
BOLT
€ 2.50
9
0925920007
ref: 9
PLUG(20X10)
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
€ 2.00
11
0924714012
ref: 11
09247-14026
PLUG (14X12)
€ 3.50
12
0916814004
ref: 12
GASKET(14X19.2X2) (NAS)
€ 2.50
13
1135138200
ref: 13
11351-38230
COVER
€ 156.50
14
1148338200
ref: 14
11483-38210
GASKET,MAGNETO COVER (MCA)
€ 14.00
15
0920613001
ref: 15
04211-13189
PIN
€ 2.50
16
0154706358
ref: 16
01547-06357
BOLT (6X35)
€ 2.50
17
0154706508
ref: 17
01547-06507
BOLT (6X50)
€ 2.50
18
0924712104
ref: 18
PLUG,12X9
€ 2.50
19
0916812002
ref: 19
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
20
0925936006
ref: 20
PLUG
€ 4.00
21
0928033004
ref: 21
O RING(D:3.1,ID:32.7)
€ 2.50
22
1136138200
ref: 22
11361-38230
COVER,ENGINE SPROCKET
€ 43.50
23
0154405308
ref: 23
01547-05307
BOLT (5*30)
€ 2.00
24
0154405358
ref: 24
BOUT
€ 2.50
25
5862117200
ref: 25
GUIDE
€ 5.50
26
0151706108
ref: 26
01550-06107
BOLT
€ 2.50
