REAR WHEEL
SP250 1982 (Z) USA (E03)

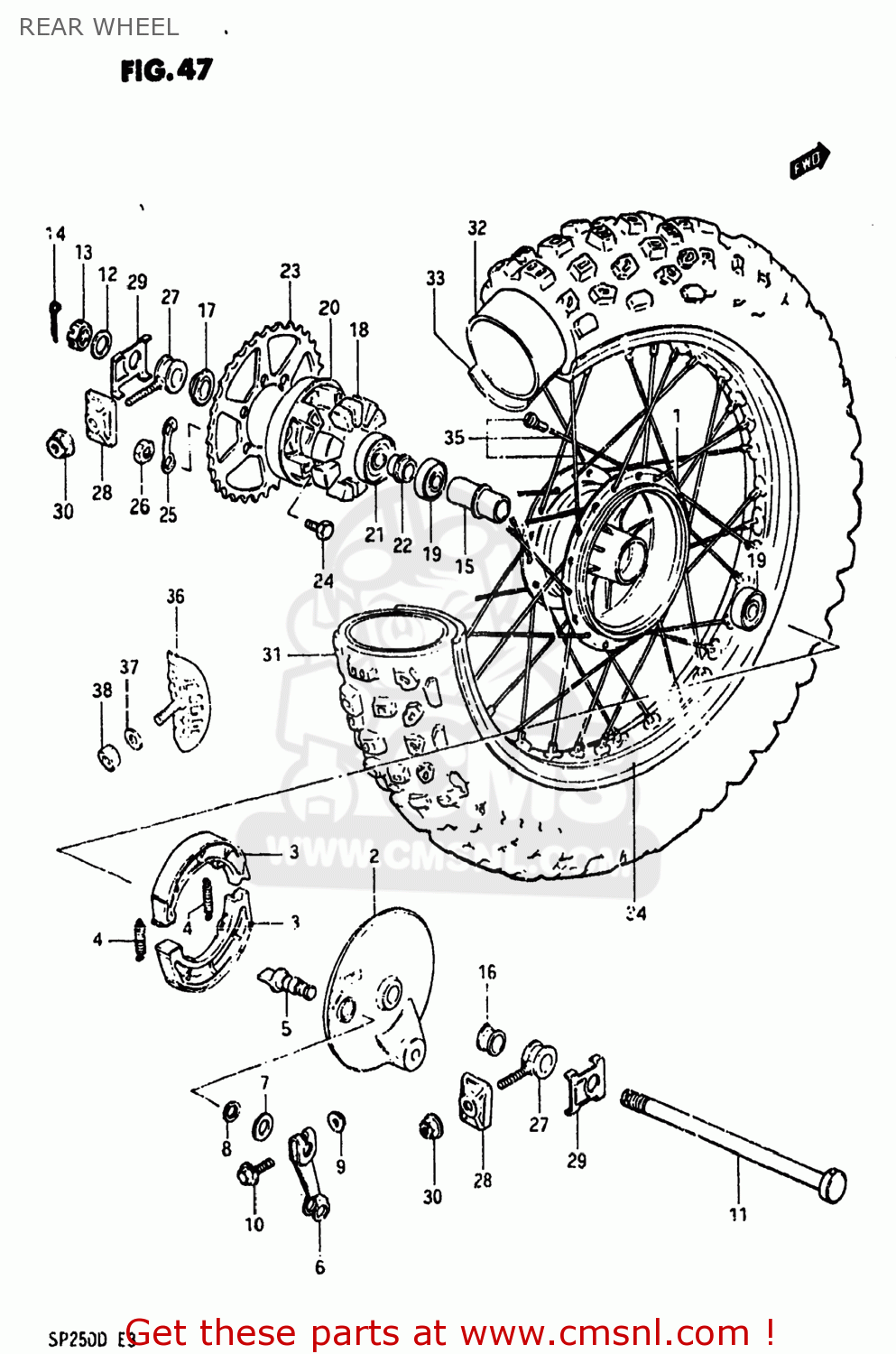

Rear wheel diagram SP250 1982 (Z) USA (E03)
REAR WHEEL SP250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411038200
ref: 1
DRUM,REAR HUB
€ 268.00
2
6421038200
ref: 2
PANEL,REAR HUB
€ 139.00
3
5441007002
ref: 3
54401-07810
SHOE,BRAKE
€ 35.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5
5444129303
ref: 5
54441-29305
CAM,FRONT BRAKE
€ 13.00
6
6445129900
ref: 6
64451-38210
LEVER,REAR BRAKE CAM
€ 32.50
7
0916014001
ref: 7
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
8
0928014003
ref: 8
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
9
0831616068
ref: 9
08319-31067
NUT
€ 2.50
10
0151706358
ref: 10
01550-06357
BOLT 6X35
€ 2.50
11
6471138200
ref: 11
64711-09B00
AXLE,REAR
€ 51.00
12
0832221168
ref: 12
08322-01167
WASHER
€ 2.00
13
0914116001
ref: 13
NUT
€ 6.50
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15
6473140600
ref: 15
SPACER,REAR HUB BEARING
€ 0.00
16
6474138200
ref: 16
SPACER,REAR AXLE,RIGHT
€ 7.50
17
6475038200
ref: 17
64750-38201
SPACER,REAR AXLE
€ 9.00
18-1
6465138200
ref: 18-1
64651-38201
CUSHION,REAR DRUM
€ 5.50
18-2
6465138201
ref: 18-2
ABSORBER,RR SHOCK
€ 5.50
19
0814362037
ref: 19
BEARING
€ 18.50
20
6461138200
ref: 20
DRUM,REAR SPROCKET MOUNT
€ 111.00
21
0812362047
ref: 21
BEARING
€ 17.00
22
6473338200
ref: 22
SPACER,REAR HUB BEARING
€ 10.50
23
6451138200
ref: 23
SPROCKET,RR(NT:42)
€ 39.50
24
0911908036
ref: 24
09119-08078
BOLT
€ 5.00
25
0916908011
ref: 25
WASHER
€ 2.50
26
0831012088
ref: 26
08310-00087
NUT
€ 2.00
27
6141038200
ref: 27
ADJUSTER,CHAIN
€ 17.50
28
6142138200
ref: 28
PLATE,CHAIN ADJUSTER
€ 3.50
29
6471238200
ref: 29
WASHER,CHAIN ADJUSTER GUIDE
€ 3.50
30
0831931088
ref: 30
08319-3108A
NUT
€ 2.50
31-1
6510038210
ref: 31-1
65100-38230
TIRE
€ 0.00
31-2
6510038230
ref: 31-2
TIRE 4.60-17
€ 0.00
32-1
6520044300
ref: 32-1
65200-49030
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
32-2
6520038220
ref: 32-2
65200-49030
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
33-1
6526144300
ref: 33-1
55261-02B40
PROTECTOR,WHEEL,INNER
€ 3.50
33-2
5526120330
ref: 33-2
55261-02B40
PROTECTOR,WHEEL,INNER
€ 3.50
34-1
6531138200
ref: 34-1
RIM,REAR WHEEL
€ 110.50
34-2
6531138240
ref: 34-2
RIM, WHEEL (215X17AL) (GOLD)
€ 248.50
35
6532038200
ref: 35
SPOKE ASSY,RR WHEEL
€ 45.50
36
6527014200
ref: 36
65270-28E00
STOPPER,BEAD
€ 38.00
37
0832211088
ref: 37
08322-01087
WASHER
€ 2.00
38
0831012088
ref: 38
08310-00087
NUT
€ 2.00
