FRAME COVER (MODEL Z)

SP250 1982 (Z) USA (E03)

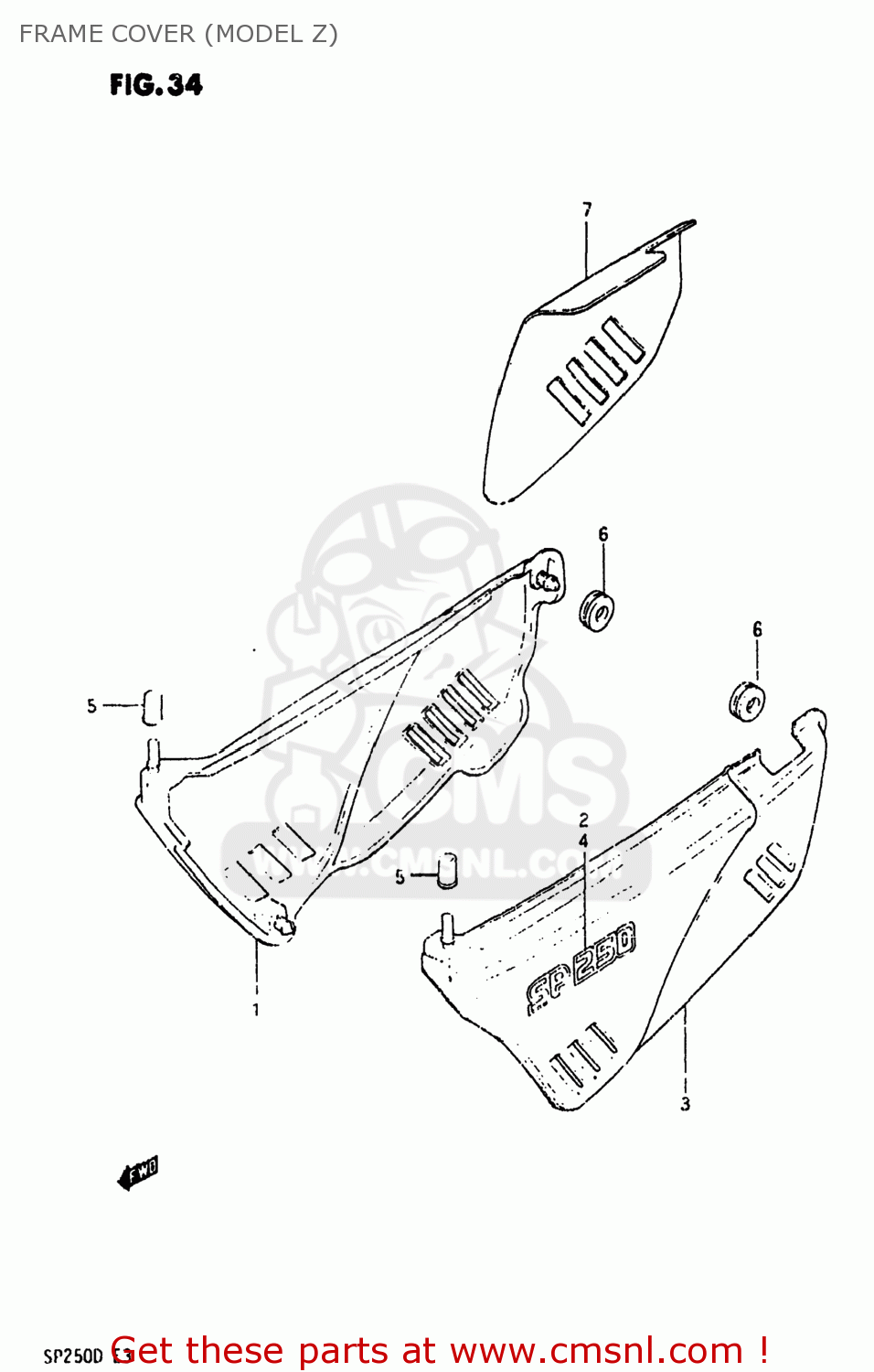

Frame cover (model z) diagram SP250 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) SP250 1982 (Z) USA (E03)
FRAME COVER (MODEL Z) SP250 1982 (Z) USA (E03)
FRAME COVER (MODEL Z) SP250 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
471113821007P
ref: 1
47111-38212-13L
COVER,FRAME,RIGHT
€ 67.00
2
681313820073H
ref: 2
EMBLEM
€ 4.00
3
472113823007P
ref: 3
47211-38231
COVER,FRAME,LEFT
472113823007P
€ 53.50
4
681313820073H
ref: 4
EMBLEM
€ 4.00
5
0932003005
ref: 5
09320-03004
CUSHION
0932003005
€ 2.00
6
0932008018
ref: 6
CUSHION
0932008018
€ 4.00
7
4712238201
ref: 7
47122-38202
HEAT SHIELD,FRAME COVER
€ 34.00
