SEAT
SP250 1982 (Z) USA (E03)

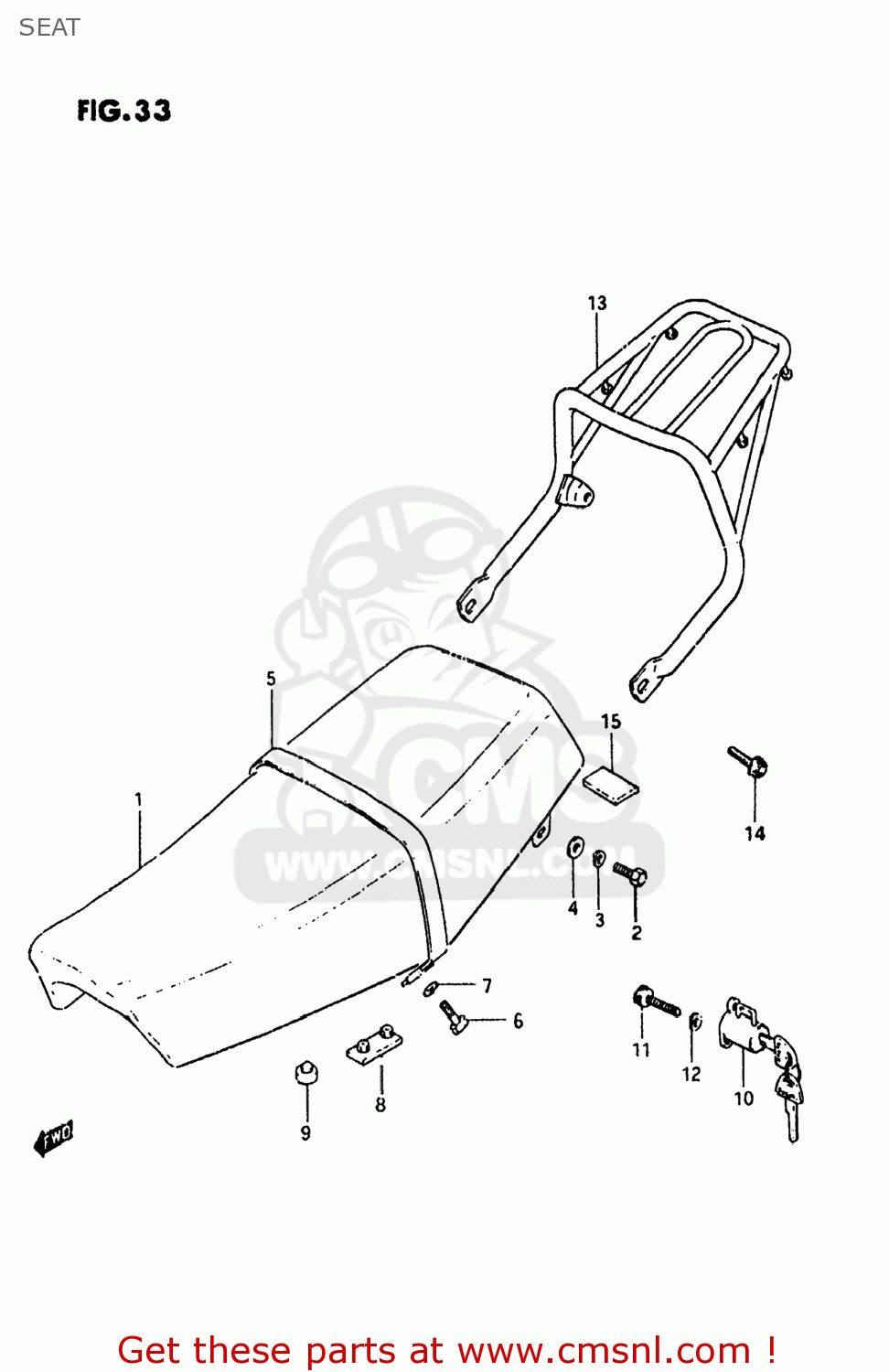

Seat diagram SP250 1982 (Z) USA (E03)
SEAT SP250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
451003820047U
ref: 1-1
45100-38201-49R
SEAT ASSEMBLY
€ 112.50
1-2
451003820149R
ref: 1-2
SEAT ASSEMBLY
€ 112.50
2
0110708168
ref: 2
01500-0816B
BOLT
€ 2.00
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
0832211088
ref: 4
08322-01087
WASHER
€ 2.00
5-1
451803820048H
ref: 5-1
BAND,SEAT GRIP
€ 0.00
5-2
451803820049R
ref: 5-2
45180-38200-48H
BAND, SEAT GRIP (BLUE)
€ 0.00
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
0932108009
ref: 8
CUSHION
€ 4.00
9
0932910001
ref: 9
CUSHION
€ 2.50
10
9570035821
ref: 10
95700-49850
LOCK ASSEMBLY,HELMET
€ 57.50
11
0910606024
ref: 11
07130-0610B
BOLT 6X11
€ 2.50
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
4631038200
ref: 13
CARRIER
€ 80.00
14
0151708258
ref: 14
01550-08257
BOLT
€ 2.50
15
9498238200
ref: 15
94982-38201
TAPE, SEAT UNDER
€ 1.50
