STAND - REAR BRAKE
SP250 1982 (Z) USA (E03)

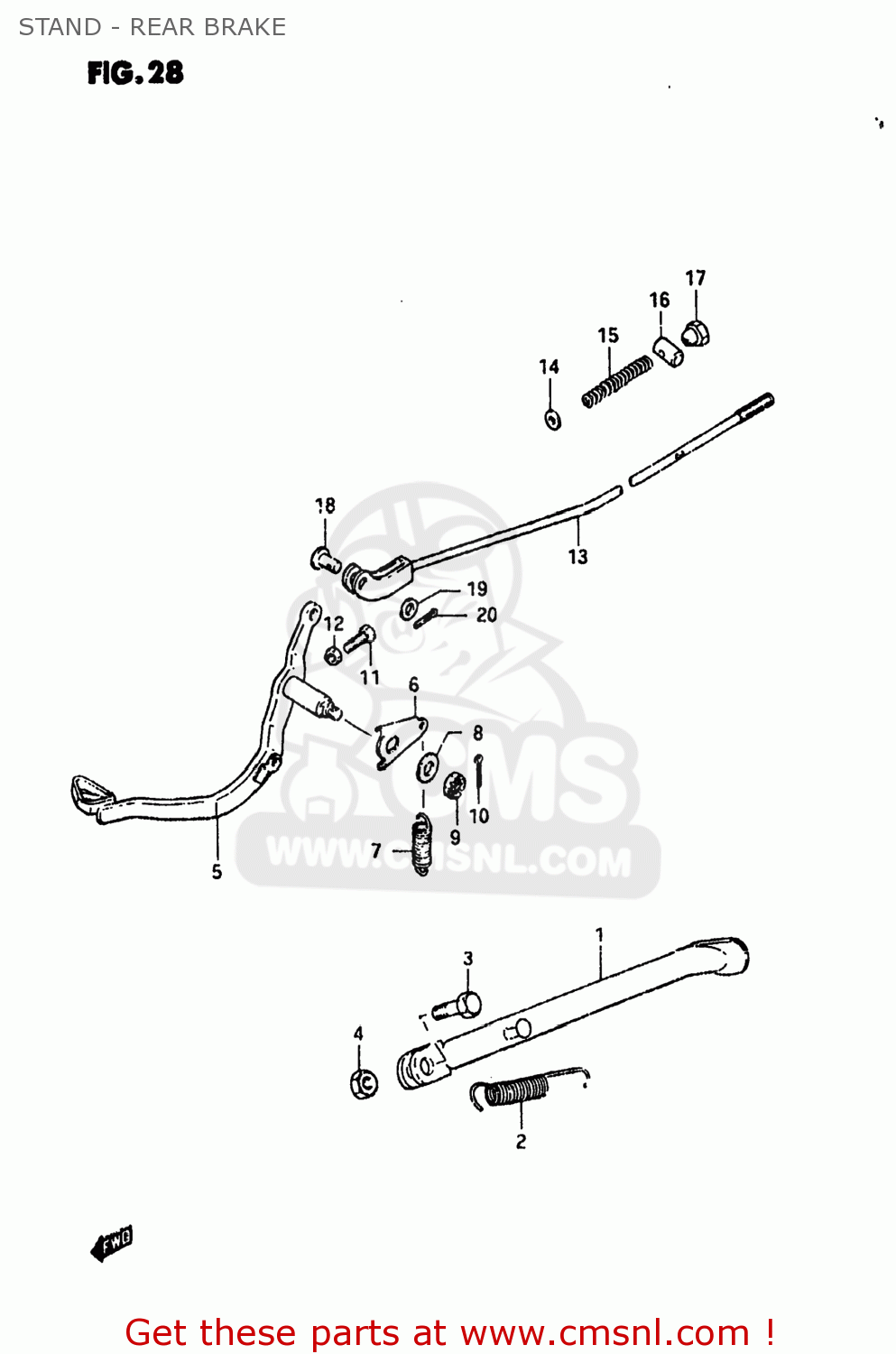

Stand - rear brake diagram SP250 1982 (Z) USA (E03)
STAND - REAR BRAKE SP250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231038200
ref: 1
42310-38240-019
STAND,SIDE
€ 26.50
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4311038200
ref: 5
PEDAL,BRAKE
€ 40.50
6
4312838200
ref: 6
ARM,BRAKE RETURN SPRING
€ 3.50
7
0944314020
ref: 7
09443-14015
SPRING
€ 3.00
8
0821108202
ref: 8
WASHER
€ 1.50
9
0831441088
ref: 9
08314-4008B
NUT 8MM
€ 2.50
10
0411120208
ref: 10
04111-2020A
PIN 20X20
€ 1.50
11
0910006009
ref: 11
BOLT(6X23)
€ 1.50
12
0831011068
ref: 12
08310-00067
NUT
€ 2.50
13
4330038200
ref: 13
43300-38X51
ROD ASSEMBLY,REAR BRAKE
€ 113.50
14
0832221068
ref: 14
08322-01067
WASHER
€ 2.00
15
0944009004
ref: 15
SPRING
€ 2.00
16
0920911002
ref: 16
PIN(11X18)
€ 2.00
17-1
0915006001
ref: 17-1
09150-06010
NUT
€ 3.50
17-2
0915006009
ref: 17-2
09150-06010
NUT (6MM)
€ 3.50
18
0920006039
ref: 18
PIN
€ 2.50
19
0832221068
ref: 19
08322-01067
WASHER
€ 2.00
20
0411120208
ref: 20
04111-2020A
PIN 20X20
€ 1.50
