HEADLAMP
SP250 1982 (Z) USA (E03)

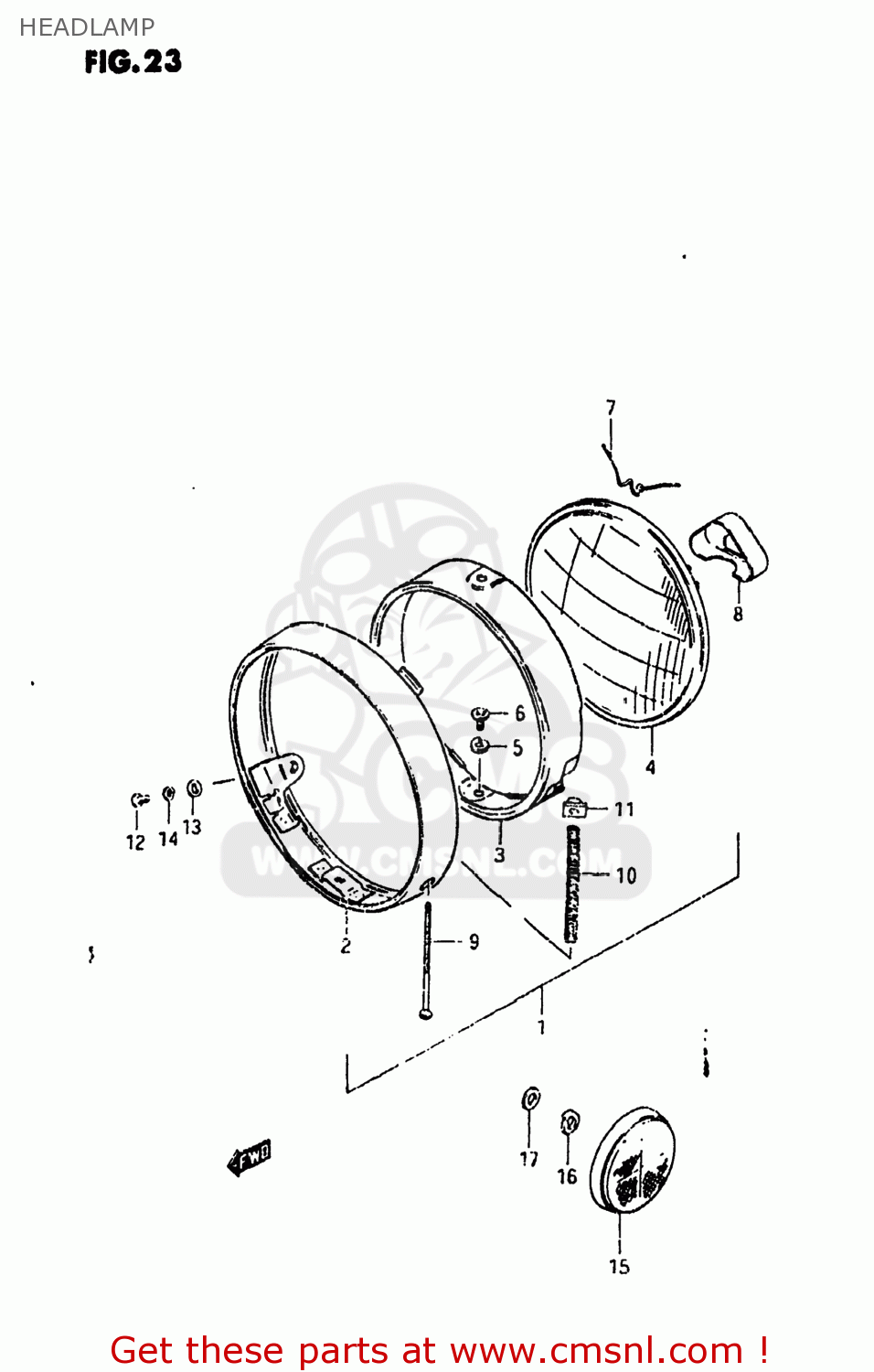

Headlamp diagram SP250 1982 (Z) USA (E03)
HEADLAMP SP250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510037130
ref: 1
HEADLAMP ASSEMBLY
€ 59.50
2
3511137130
ref: 2
RIM,HEADLAMP
€ 23.00
3
3512729610
ref: 3
RETAINER
€ 15.50
4
3512132410
ref: 4
LAMP UNIT
€ 62.00
5
0832121058
ref: 5
08321-0105A
LOCK WASHER
€ 2.00
6
3513629610
ref: 6
SCREW
€ 3.00
7
3512829611
ref: 7
SPRING,HEAD LAMP UNIT
€ 3.50
8
3517329610
ref: 8
COVER
€ 3.00
9
3515131610
ref: 9
SCREW
€ 4.00
10
3515433630
ref: 10
SPRING
€ 2.50
11
3515215611
ref: 11
NUT
€ 3.50
12
0211204128
ref: 12
02112-0412A
SCREW
€ 1.50
13
0832221048
ref: 13
08322-01047
WASHER
€ 2.00
14
0832121048
ref: 14
08321-0104A
LOCK WASHER
€ 2.00
15
3595030910
ref: 15
REFLEX REFLECTOR,FR
€ 43.50
16
0832121058
ref: 16
08321-0105A
LOCK WASHER
€ 2.00
17
0832221058
ref: 17
08322-01057
WASHER
€ 2.50
