FRONT WHEEL
SP400 1980 (T) USA (E03)

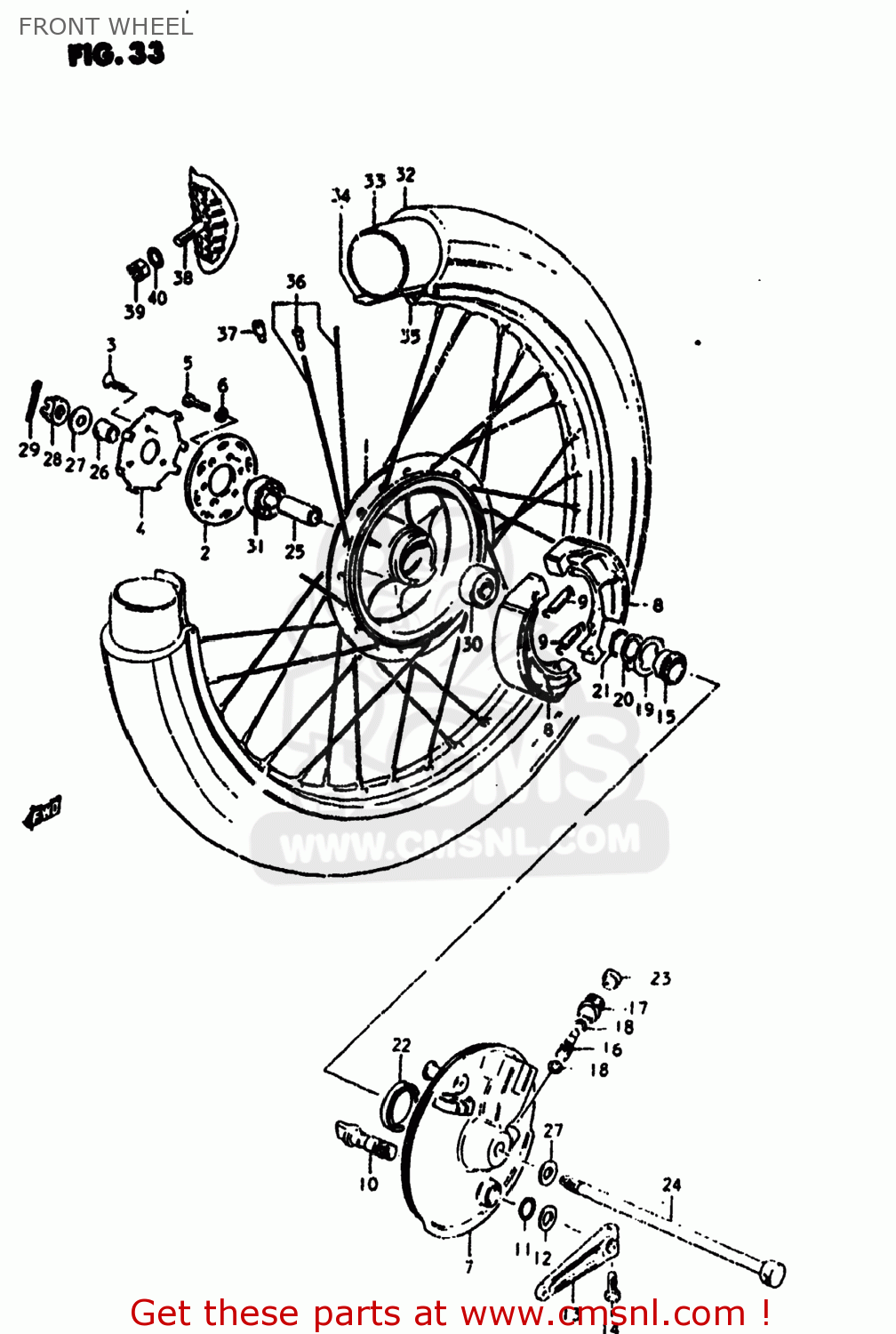

Front wheel diagram SP400 1980 (T) USA (E03)
FRONT WHEEL SP400 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411030500
ref: 1
DRUM,FRONT HUB
€ 0.00
2
5411230500
ref: 2
FLANGE,FR HUB,R
€ 17.00
3
0212206168
ref: 3
02122-06167
SCREW
€ 2.00
4
5415130500
ref: 4
RETAINER,FR HUB BEARING,R
€ 7.00
5
0110706168
ref: 5
01500-06167
BOLT, UPPER
€ 3.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
5421032421
ref: 7
54210-32422
PANEL,FRONT HUB
€ 51.00
8
5441032400
ref: 8
64400-02830
SHOE,BRAKE (MCA)
€ 35.00
9
5542041100
ref: 9
SPRING
€ 5.50
10
5444032402
ref: 10
CAM,FRONT BRAKE
€ 15.00
11
0928015001
ref: 11
09280-15003
O-RING,BOSS
€ 2.00
12
0916015001
ref: 12
09160-15048
WASHER (15X24X1.6)
€ 2.50
13
5445132400
ref: 13
54451-32401
LEVER,FRONT BRAKE CAM
€ 48.00
14
0110706258
ref: 14
01500-06257
BOLT
€ 2.00
15
5461130301
ref: 15
54611-30302
GEAR,SPEEDOMETER
€ 24.50
16
5462130300
ref: 16
PINION,SPEEDOMETER
€ 13.00
17
5463211020
ref: 17
54632-49200
BUSHING,SPEEDOMETER PINION
€ 6.50
18
0916005001
ref: 18
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
19
5466011031
ref: 19
DRIVER,SPEEDOMETER GEAR
€ 31.00
20
0916022001
ref: 20
WASHER(22.5X27X1)
€ 2.00
21
0833111229
ref: 21
08331-3122A
CIRCLIP
€ 2.00
22
0928526003
ref: 22
SEAL,OIL(26X38X4)
€ 22.00
23
0928906001
ref: 23
SEAL,OIL(6X10X3)
€ 4.00
24
6471143000
ref: 24
64711-43001
AXLE,REAR
€ 28.50
25
0918012041
ref: 25
09180-12144
SPACER (12.6X19X52)
€ 4.50
26
5474141100
ref: 26
SPACER,FR AXLE,R
€ 10.00
27
0832211128
ref: 27
08322-01127
WASHER
€ 2.00
28
0831441128
ref: 28
08314-4012A
NUT, REAR AXLE
€ 2.50
29
0411130308
ref: 29
04111-3030A
COTTER PIN
€ 1.50
30
0814362017
ref: 30
BEARING
€ 11.50
31
0812362017
ref: 31
08133-62017
BEARING, RH
€ 15.00
32
5510032410
ref: 32
TIRE,FRONT
€ 49.00
33
5520016510
ref: 33
TUBE
€ 32.50
34
5526116510
ref: 34
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
35
5531130500
ref: 35
55311-30501
RIM,FRONT WHEEL
€ 193.00
36
5532030500
ref: 36
SPOKE SET,FR
€ 51.50
37
5541130000
ref: 37
BALANCER,WHEEL (50G)
€ 4.50
38
6527028600
ref: 38
STOPPER,BEAD
€ 26.50
39
0831012088
ref: 39
08310-00087
NUT
€ 2.00
40
0832211088
ref: 40
08322-01087
WASHER
€ 2.00
