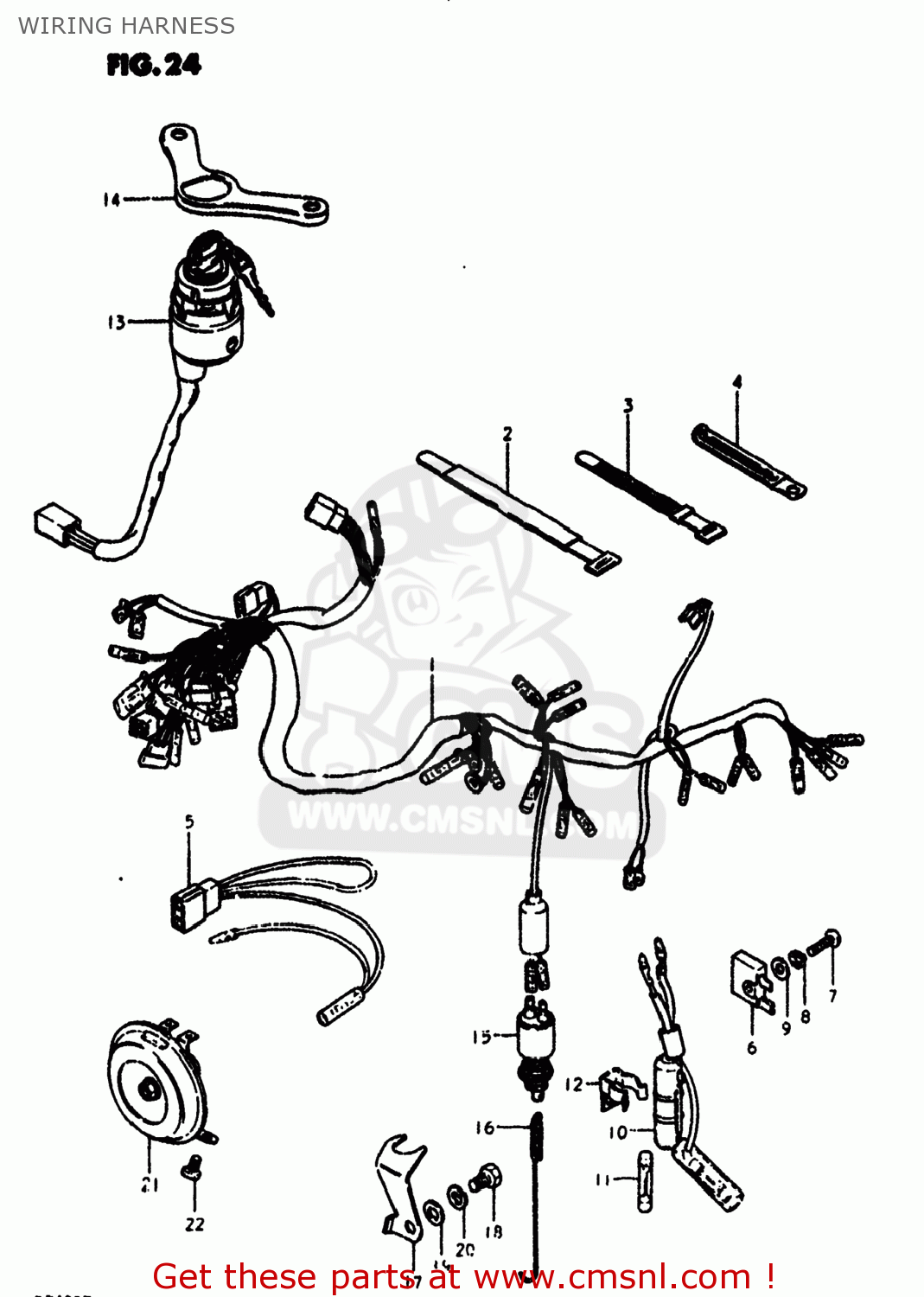

WIRING HARNESS

ref

part #

description

quantity

1

3661037130
ref: 1

HARNESS,WIRING

€ 73.00

2-1

0940711302
ref: 2-1
09407-18301

CLAMP

€ 6.00

2-2

0940718301
ref: 2-2

CLAMP

€ 6.00

3

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

4

0940406402
ref: 4
09404-06432

CLAMP

€ 2.50

5

3685337230
ref: 5

WIRE

€ 0.00

6

3280019063
ref: 6
32800-16A00

RECTIFIER ASSEMBLY

€ 10.50

7

0211205208
ref: 7
02112-05207

SCREW 5X20

€ 3.00

8

0832121058
ref: 8
08321-0105A

LOCK WASHER

€ 2.00

9

0832221058
ref: 9
08322-01057

WASHER

€ 2.50

10

3674015010
ref: 10
36740-15011

BOX ASSEMBLY,FUSE

€ 11.00

11

0948115001
ref: 11

FUSE(15A)

€ 3.00

12

3679125001
ref: 12

HOLDER,FUSE CASE

€ 3.50

13

3711025318
ref: 13
37110-25319

SWITCH ASSEMBLY,IGNITION

€ 60.00

14

3711548000
ref: 14
37115-36001

BRACKET,IGNITION SWITCH

€ 17.00

15

3761053011
ref: 15

SWITCH ASSY,BRAKE LAMP

€ 34.50

16

0944306019
ref: 16

SPRING

€ 3.50

17

4325132400
ref: 17

BRACKET,STOP LAMP SWITCH

€ 8.50

18

0110706108
ref: 18
01500-06107

BOLT

€ 2.00

19

0832221068
ref: 19
08322-01067

WASHER

€ 2.00

20

0832121068
ref: 20
08321-01067

LOCK WASHER

€ 2.50

21

3850032470
ref: 21
38500-32472

HORN ASSEMBLY

€ 32.50

22

0110706108
ref: 22
01500-06107

BOLT

€ 2.00
