REAR FENDER
SP400 1980 (T) USA (E03)

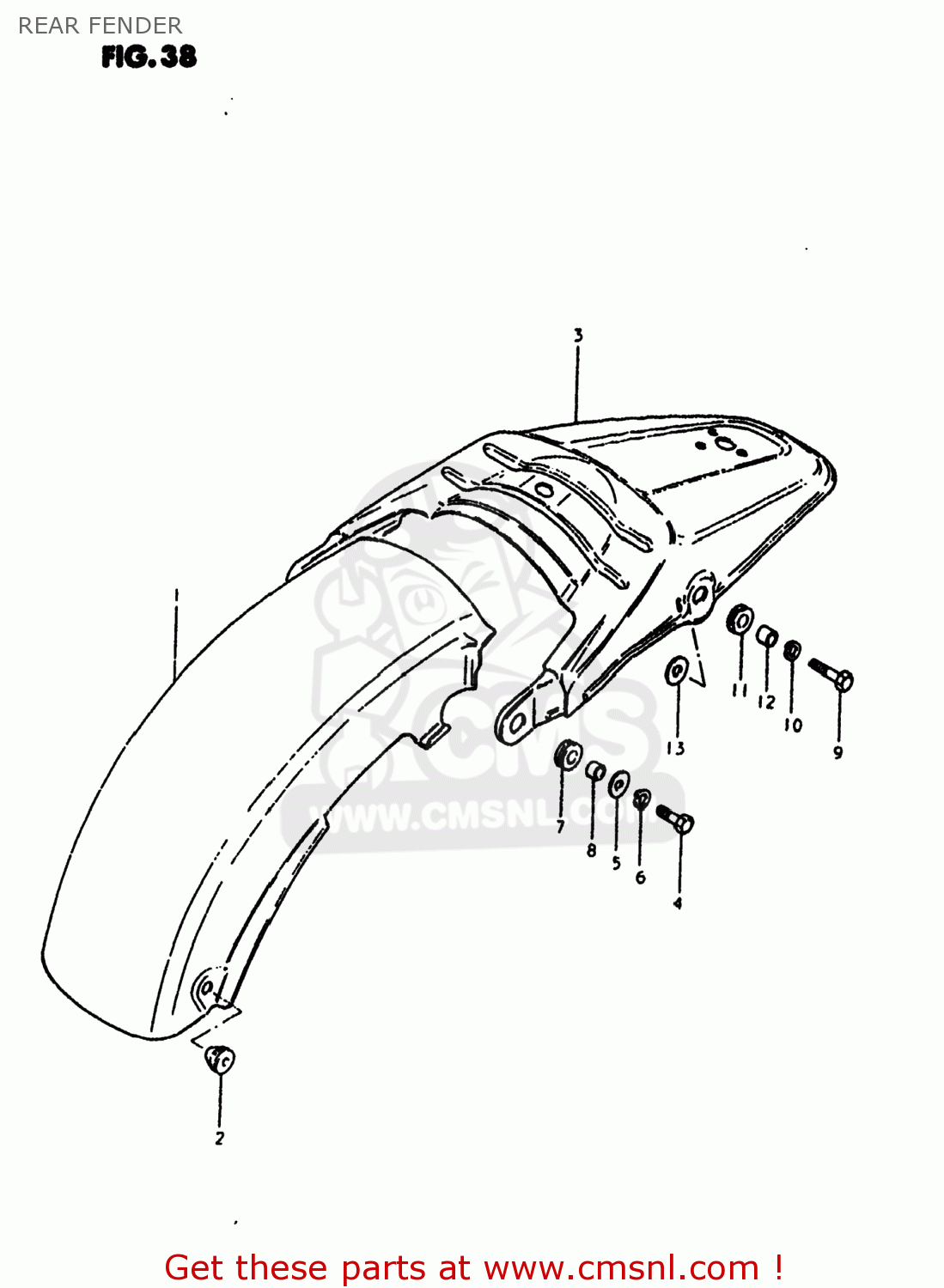

Rear fender diagram SP400 1980 (T) USA (E03)
REAR FENDER SP400 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311232401
ref: 1
FENDER,REAR
€ 0.00
2
6315932401
ref: 2
CUSHION,REAR FENDER,FRONT
€ 2.50
3
6311037100185
ref: 3
63110-37100-13L
FENDER,REAR
€ 88.00
4
0110706208
ref: 4
01500-06207
BOLT
€ 2.00
5
0916006027
ref: 5
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
0932008007
ref: 7
09320-08021
CUSHION
€ 4.00
8
0918006038
ref: 8
SPACER(6.1X9X7.5)
€ 2.00
9
0110708258
ref: 9
01500-08257
BOLT
€ 2.50
10
0832121088
ref: 10
08321-01087
LOCK WASHER
€ 2.00
11
0932009002
ref: 11
CUSHION
€ 4.00
12
0918008039
ref: 12
SPACER(8.2X10X8)
€ 2.50
13
0916008021
ref: 13
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
