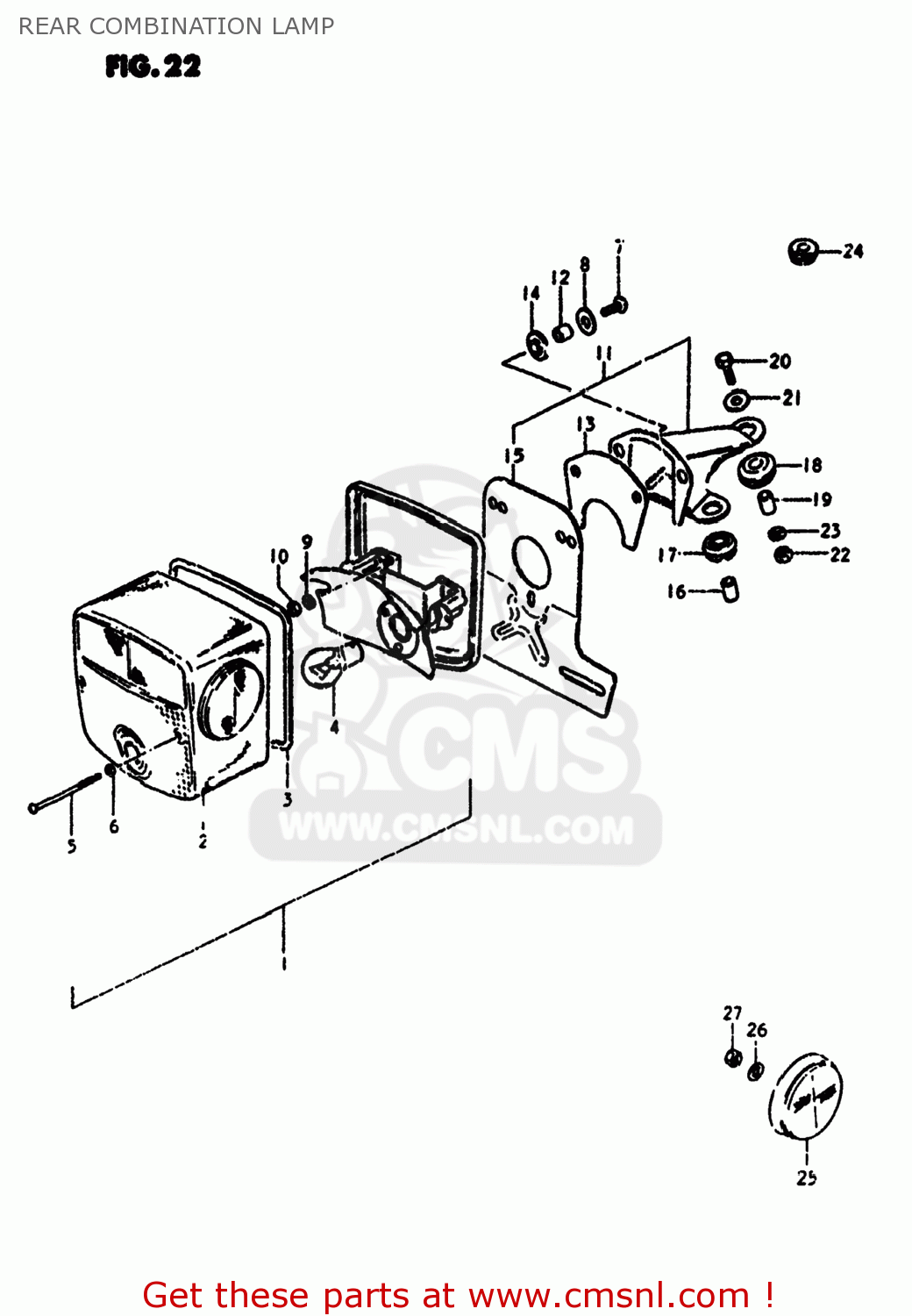

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3572032430
ref: 1

LAMP UNIT,REAR COMBINATION

€ 0.00

2

3571230512
ref: 2

LENS

€ 65.50

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0947106030
ref: 4

BULB(6V32/3CP,STANLEY)

€ 12.50

5

0912504002
ref: 5
02112-04558

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3572532410
ref: 7

TAPPING SCREW

€ 0.00

8

3572732410
ref: 8

WASHER,REAR COMBINATION LAMP

€ 0.00

9

0831011068
ref: 9
08310-00067

NUT

€ 2.50

10

0832121068
ref: 10
08321-01067

LOCK WASHER

€ 2.50

11

3573037131
ref: 11

BRACKET UNIT,TAIL LAMP

€ 0.00

12

3576637110
ref: 12

SPACER

€ 11.50

13

3576332410
ref: 13

CUSHION

€ 4.50

14

3576432410
ref: 14

CUSHION,REAR COMBINATION LAMP

€ 0.00

15

3592737131
ref: 15

BRACKET,LICENSE PLATE

€ 0.00

16

3576637120
ref: 16

SPACER

€ 2.50

17

3576532410
ref: 17

CUSHION,REAR COMBINATION LAMP

€ 3.00

18

3576544130
ref: 18

CUSHION,REAR COMBINATION LAMP

€ 6.50

19

3576637190
ref: 19

SPACER

€ 2.00

20

0110706308
ref: 20
01500-06307

BOLT

€ 2.50

21

0916006027
ref: 21
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

22

0831011068
ref: 22
08310-00067

NUT

€ 2.50

23

0832211068
ref: 23
08322-0106B

WASHER 6MM

€ 2.00

24

0930809001
ref: 24

GROMMET

€ 0.00

25

3595045010
ref: 25

REFLEX REFLECTOR,FR

€ 17.00

26

0832221058
ref: 26
08322-01057

WASHER

€ 2.50

27

0832121058
ref: 27
08321-0105A

LOCK WASHER

€ 2.00
