TURN SIGNAL LAMP
SP400 1980 (T) USA (E03)

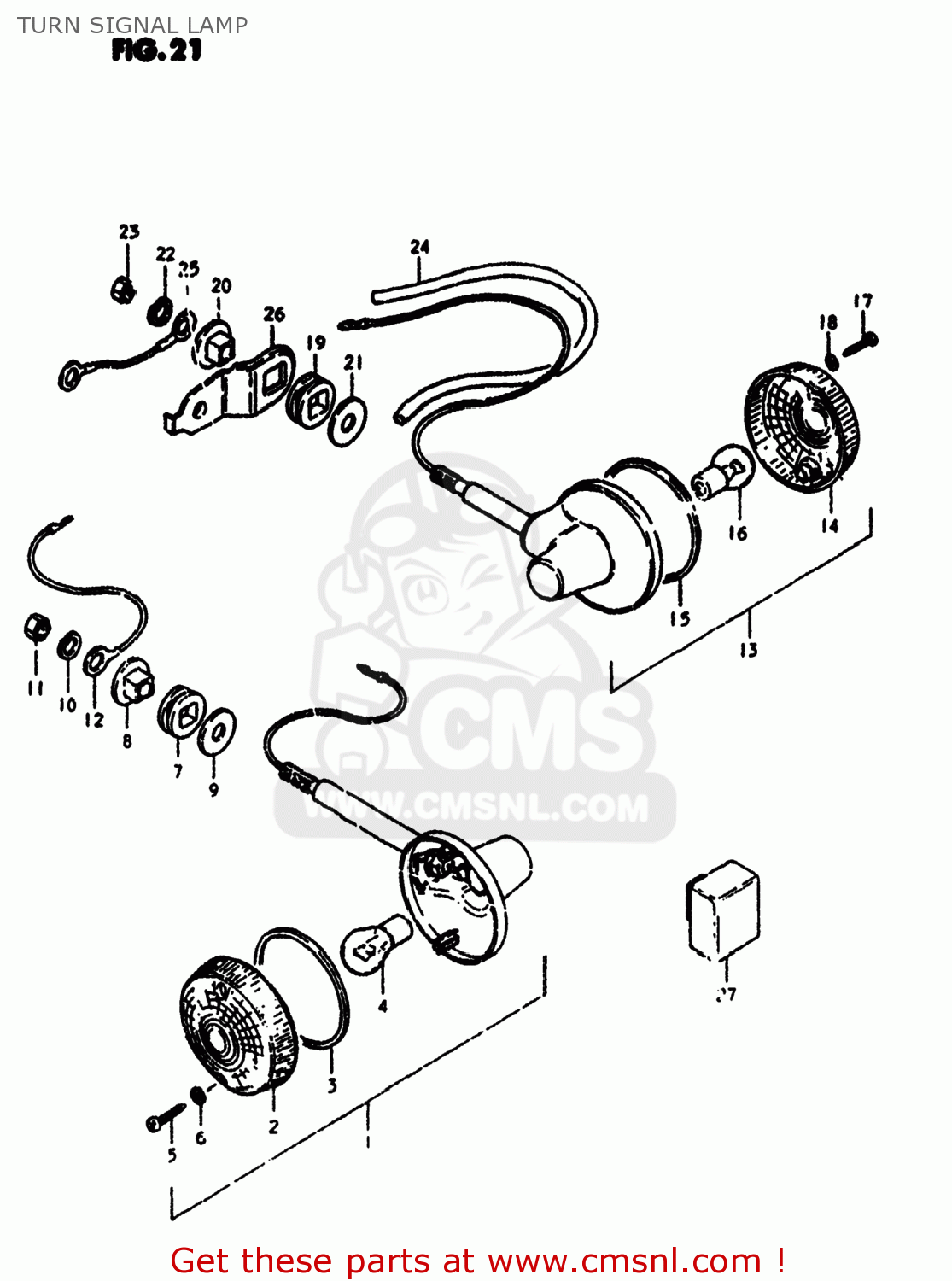

Turn signal lamp diagram SP400 1980 (T) USA (E03)
TURN SIGNAL LAMP SP400 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560130531
ref: 1
35601-39370-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 78.50
2
3561228620
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0947106011
ref: 4
BULB(6V17W,STANLEY,A4513A)
€ 9.50
5
3562347610
ref: 5
03211-04207
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3569032200
ref: 7
CUSHION
€ 38.50
8
3569532400
ref: 8
35695-32401
SPACER,TURN SIGNAL LAMP
€ 4.50
9
0916010006
ref: 9
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
10
0832121106
ref: 10
08321-0110A
LOCK WASHER
€ 3.00
11
0831011108
ref: 11
08310-00107
NUT
€ 2.50
12
3666033000
ref: 12
LEAD WIRE,EARTH
€ 5.00
13
3560332431
ref: 13
35603-32411-999
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 80.50
14
3561228620
ref: 14
LENS
€ 10.50
15
3561328620
ref: 15
GASKET (NAS)
€ 7.00
16
0947106011
ref: 16
BULB(6V17W,STANLEY,A4513A)
€ 9.50
17
3562347610
ref: 17
03211-04207
SCREW
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
€ 2.00
19
3569032200
ref: 19
CUSHION
€ 38.50
20
3569532400
ref: 20
35695-32401
SPACER,TURN SIGNAL LAMP
€ 4.50
21
0916010006
ref: 21
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
22
0832121108
ref: 22
08321-01107
LOCK WASHER
€ 2.00
23
0831011108
ref: 23
08310-00107
NUT
€ 2.50
24
3569332400
ref: 24
PROTECTOR, LEAD WIRE
€ 0.00
25
3686244000
ref: 25
LEAD WIRE,EARTH
€ 4.00
26
4158032401
ref: 26
BRACKET,REAR TURN SIGNAL
€ 8.00
27
3861048600
ref: 27
38610-05X50
RELAY,TURN SIGNAL
€ 46.50
