CAM CHAIN

SV1000 2005 (K5) USA (E03)

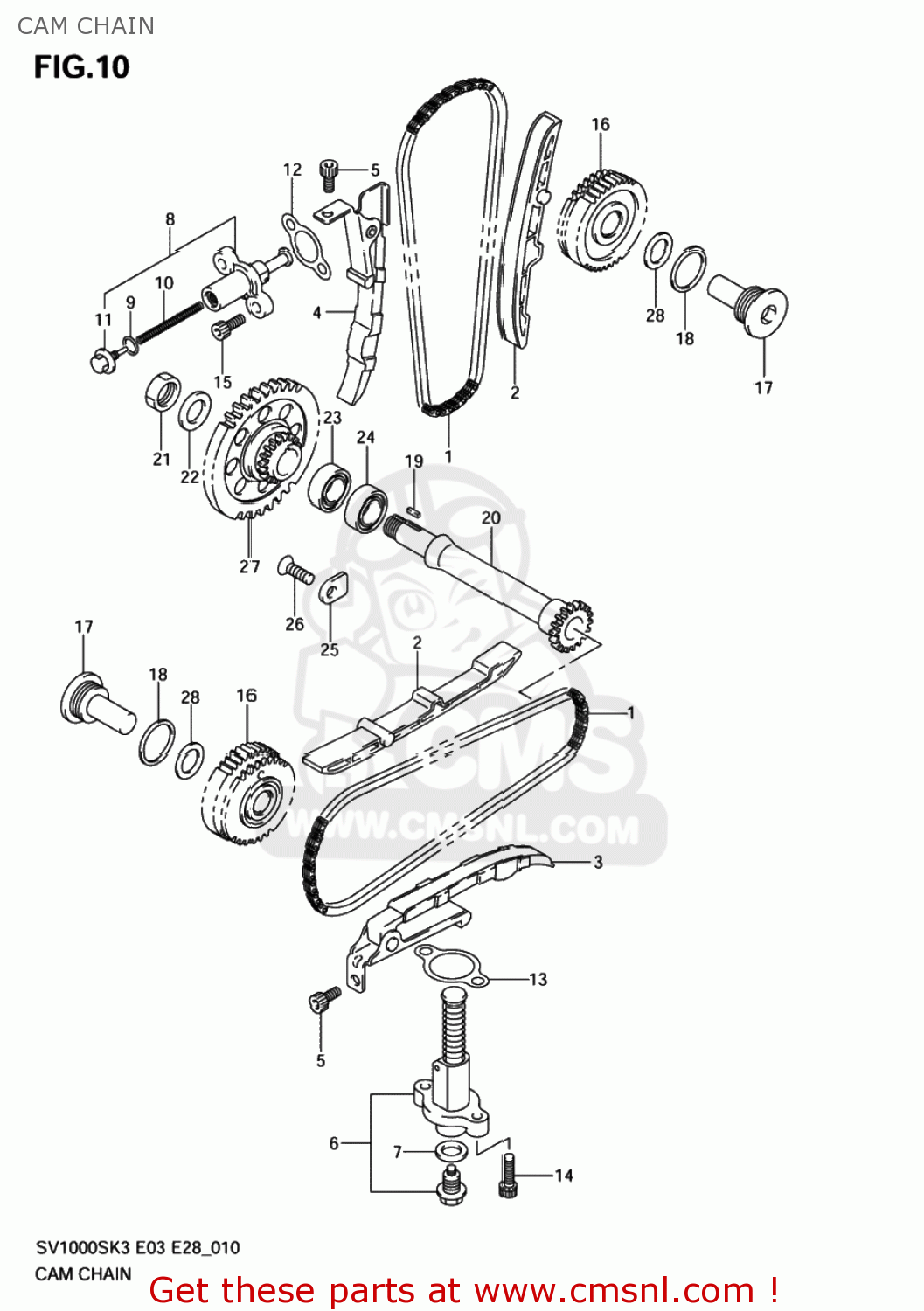

Cam chain diagram SV1000 2005 (K5) USA (E03)

CAM CHAIN SV1000 2005 (K5) USA (E03)

CAM CHAIN SV1000 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276023F00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 67.50

2

1277106G00
ref: 2

GUIDE,CAM CHAIN

€ 15.00

3

1281006G00
ref: 3

TENSIONER,CAM CHAIN FR

€ 41.00

4

1281506G00
ref: 4

TENSIONER,CAM CHAIN RR

€ 41.00

5

0712006123
ref: 5
07120-0612B

BOLT

€ 3.50

6

1283205A10
ref: 6

ADJUSTER ASSY,TENSIONER FR

€ 86.00

7

0916812018
ref: 7

GASKET(12X21X2) (NAS)

€ 2.00

8

1283030A01
ref: 8

ADJUSTER ASSY,TENSIONER

€ 54.50

9

1283202A00
ref: 9

O RING

€ 2.00

10

1283330A01
ref: 10

SPRING

€ 1.50

11

1283402A00
ref: 11

PLUG,ADJUSTER

€ 8.00

12

1283719B10
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.00

13

1283724A10
ref: 13

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

14

0713006253
ref: 14
07130-0625B

BOLT,CL.COVER

€ 3.00

15

0713006203
ref: 15
07130-0620B

BOLT,CRKCASE,R

€ 3.00

16

1275006G00
ref: 16

GEAR,CAM CHAIN IDLER NO.2

€ 452.50

17

1275502F01
ref: 17

SHAFT,IDLER NO.2

€ 34.00

18

0916826001
ref: 18

GASKET(26.5X30.5X1) (NAS)

€ 4.50

19

0942104004
ref: 19

KEY

€ 3.50

20

1271606G00
ref: 20

SHAFT,IDLER

€ 99.00

21

0914016001
ref: 21

NUT

€ 4.50

22

0918116212
ref: 22

SHIM(16X26X1.5)

€ 2.00

23

0811363030
ref: 23

BEARING

€ 15.50

24

0926225006
ref: 24

BEARING(25X47X8)

€ 24.00

25

2474120A00
ref: 25

RETAINER,COUNTER BEARING,R

€ 2.00

26

0912606011
ref: 26

SCREW(6X12)

€ 2.00

27-1

1273106G00
ref: 27-1
12731-06G01

SPROCKET,IDLER

€ 77.50

27-2

1273106G01
ref: 27-2

SPROCKET,IDLER NO.1

€ 77.50

28-1

0918115164
ref: 28-1

SHIM(15X24X0.9)

€ 3.00

28-2

0918115166
ref: 28-2

SHIM(15X24X1)

€ 4.00

28-3

0918115172
ref: 28-3

SHIM(15X24X1.1)

€ 3.00

28-4

0918115176
ref: 28-4

SHIM(15X24X1.2)

€ 3.00

28-5

0918115181
ref: 28-5

SHIM(15X24X1.3)

€ 3.00

28-6

0918115182
ref: 28-6

SHIM(15X24X1.4)

€ 3.00
