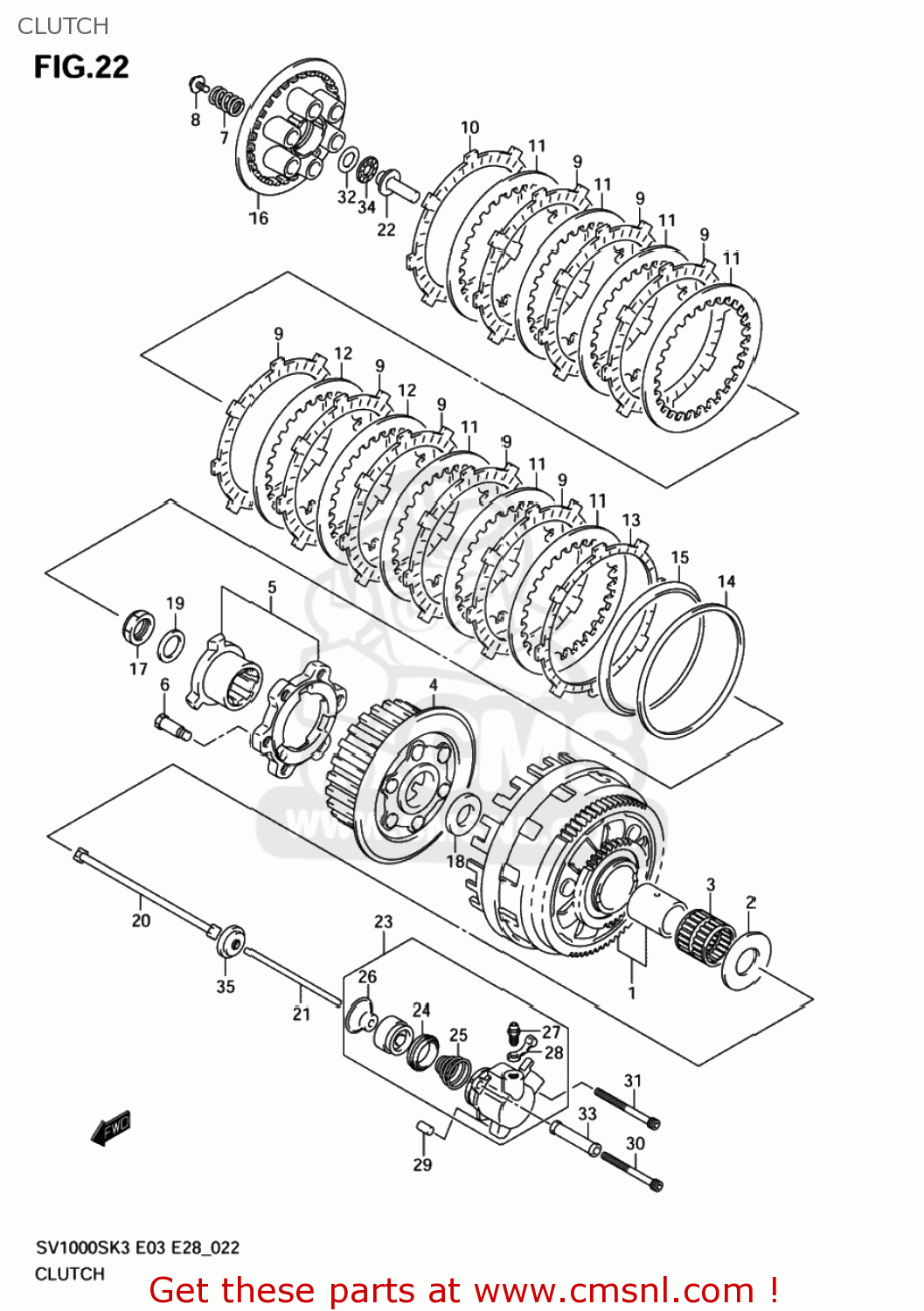

CLUTCH

ref

part #

description

quantity

1-1

2120016810
ref: 1-1

GEAR ASSY,PRI DRIVEN

€ 578.50

1-2

2120016820
ref: 1-2

GEAR ASSY,PRI DRIVEN

€ 578.50

2

0916025074
ref: 2

WASHER(25X52X2.5)

€ 5.00

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141016G00
ref: 4

HUB,CLUTCH SLEEVE

€ 158.00

5

2161002F20
ref: 5

CAM SET,CLUTCH

€ 209.50

6-1

2148102F11
ref: 6-1
21481-02F12

BOLT,CLUTCH SPRING SUPPORT

€ 9.50

6-2

2148102F12
ref: 6-2

BOLT,CLUTCH SPRING SUPPORT

€ 9.50

7

2141316G00
ref: 7

SPRING,CLUTCH

€ 8.00

8-1

2148202F11
ref: 8-1
21482-02F12

BOLT,CLUTCH SPRING

€ 3.50

8-2

2148202F12
ref: 8-2

BOLT,CLUTCH SPRING

€ 3.50

9

2144124F30
ref: 9

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 18.50

10

2144124F10
ref: 10

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 18.50

11

2145124F00
ref: 11

PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)

€ 7.50

12

2145124F10
ref: 12

PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)

€ 7.50

13

2144224F00
ref: 13

PLATE,CLUTCH DRIVE NO.3 (NAS)

€ 16.00

14

2147124F00
ref: 14

SEAT,WAVE WASHER

€ 12.00

15

2147206G00
ref: 15

WASHER,CLUTCH PLATE WAVE

€ 12.50

16

2146216G00
ref: 16

DISC,CLUTCH PRESSURE

€ 61.00

17

0915924010
ref: 17

NUT

€ 11.00

18

0916025076
ref: 18

WASHER(25X50X5.8)

€ 13.50

19

0916424006
ref: 19

WASHER

€ 4.00

20

2311027A00
ref: 20

ROD,CLUTCH

€ 17.00

21

2311126D00
ref: 21

ROD,CLUTCH PUSH,L

€ 14.00

22

2312131E00
ref: 22

PIECE,CLUTCH PUSH

€ 18.50

23-1

2316006G00
ref: 23-1
23160-06G02

CYLINDER COMP,

€ 92.50

23-2

2316006G01
ref: 23-2
23160-06G02

CYLINDER,CLUTC

€ 92.50

24

2316306B00
ref: 24

CUP

€ 5.50

25

2316405A00
ref: 25

SPRING,CLUTCH CYLINDER

€ 3.50

26

2316602F20
ref: 26

COVER,DUST

€ 13.00

27

5912101A00
ref: 27

BLEEDER

€ 8.50

28

5912201A00
ref: 28

CAP,BLEEDER

€ 4.50

29

0422108149
ref: 29

PIN

€ 2.50

30

0713006653
ref: 30
07130-0665B

BOLT

€ 4.00

31

0713006703
ref: 31
07130-0670B

BOLT

€ 4.00

32

0916015045
ref: 32

WASHER(15.5X28X1)

€ 4.00

33

2317106G00
ref: 33

SPACER,CL RLSE CYL

€ 6.50

34

0926315003
ref: 34

BEARING(15X28X2)

€ 7.00

35

0928306008
ref: 35

SEAL,OIL(6X34X10.5)

€ 13.00

all assemblies
