TAIL LAMP (SV1000SK5)
SV1000 2005 (K5) USA (E03)

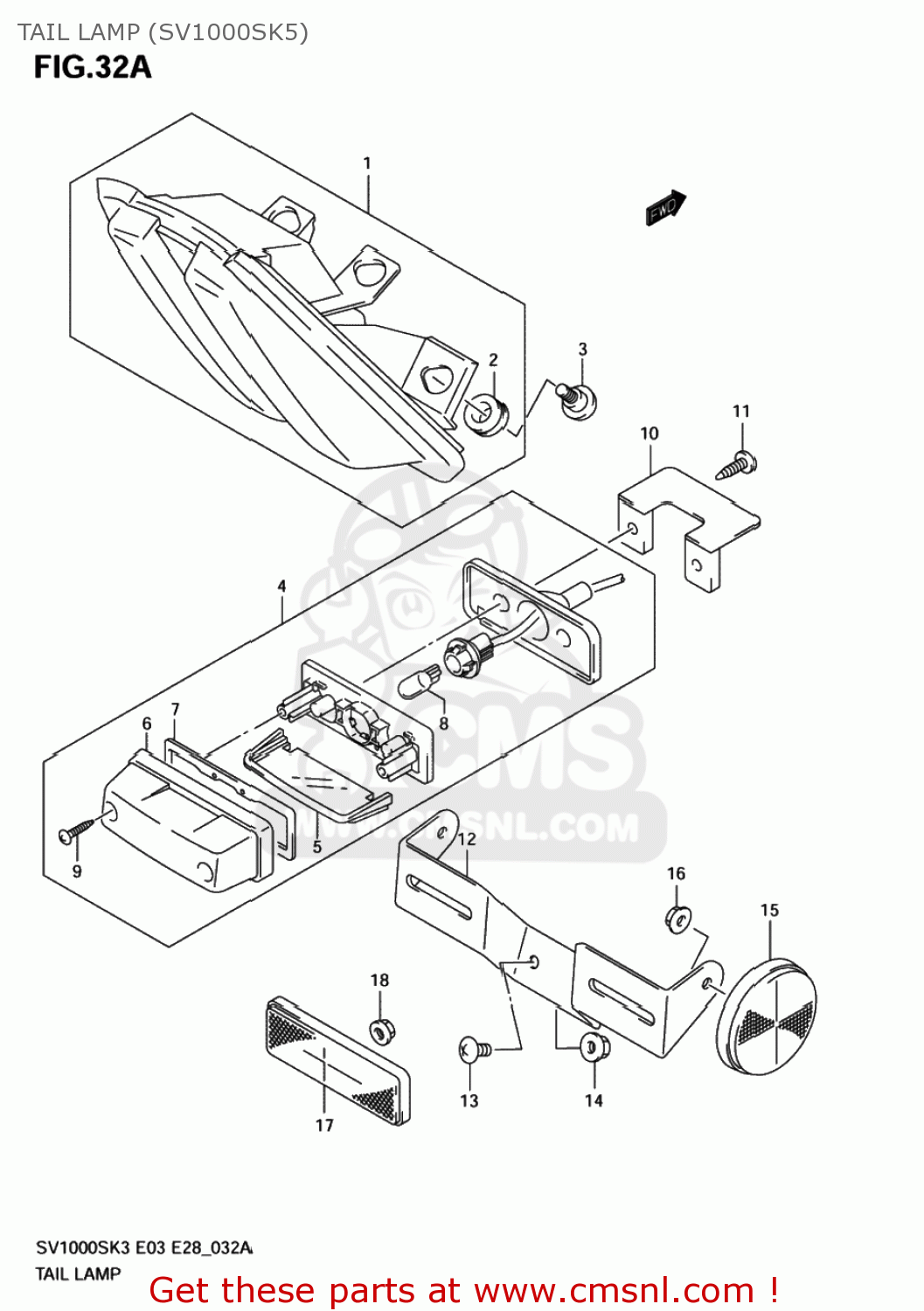

Tail lamp (sv1000sk5) diagram SV1000 2005 (K5) USA (E03)
TAIL LAMP (SV1000SK5) SV1000 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571016G30
ref: 1
35710-16G31
LAMP ASSY,RR COMBINATION
€ 68.00
2
0932010049
ref: 2
CUSHION
€ 2.00
3
0913906118
ref: 3
SCREW(6X22.5)
€ 3.50
4
3591016G10
ref: 4
LAMP ASSY,LICENSE
€ 49.00
5
3591216G00
ref: 5
LENS
€ 7.50
6
3591716G00
ref: 6
COVER
€ 7.00
7
3591316G00
ref: 7
GASKET (NAS)
€ 5.50
8
0947112216
ref: 8
BULB(12V5W)
€ 5.00
9
0321104163
ref: 9
03211-0416A
SCREW
€ 1.50
10
3592616G00
ref: 10
BRACKET,LICENSE
€ 7.00
11
0354105203
ref: 11
03541-0520A
SCREW
€ 2.50
12
3592717G30
ref: 12
BRACKET,LICENSE PLATE
€ 0.00
13
0214206163
ref: 13
02142-0616A
SCREW
€ 2.50
14
0831610063
ref: 14
08316-1006B
NUT
€ 2.50
15
3597014A20
ref: 15
REFLECTOR ASSY,RR SIDE
€ 11.00
16
0831610053
ref: 16
08316-1005A
NUT
€ 2.50
17
3597007F00
ref: 17
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 20.50
18
0831610053
ref: 18
08316-1005A
NUT
€ 2.50
