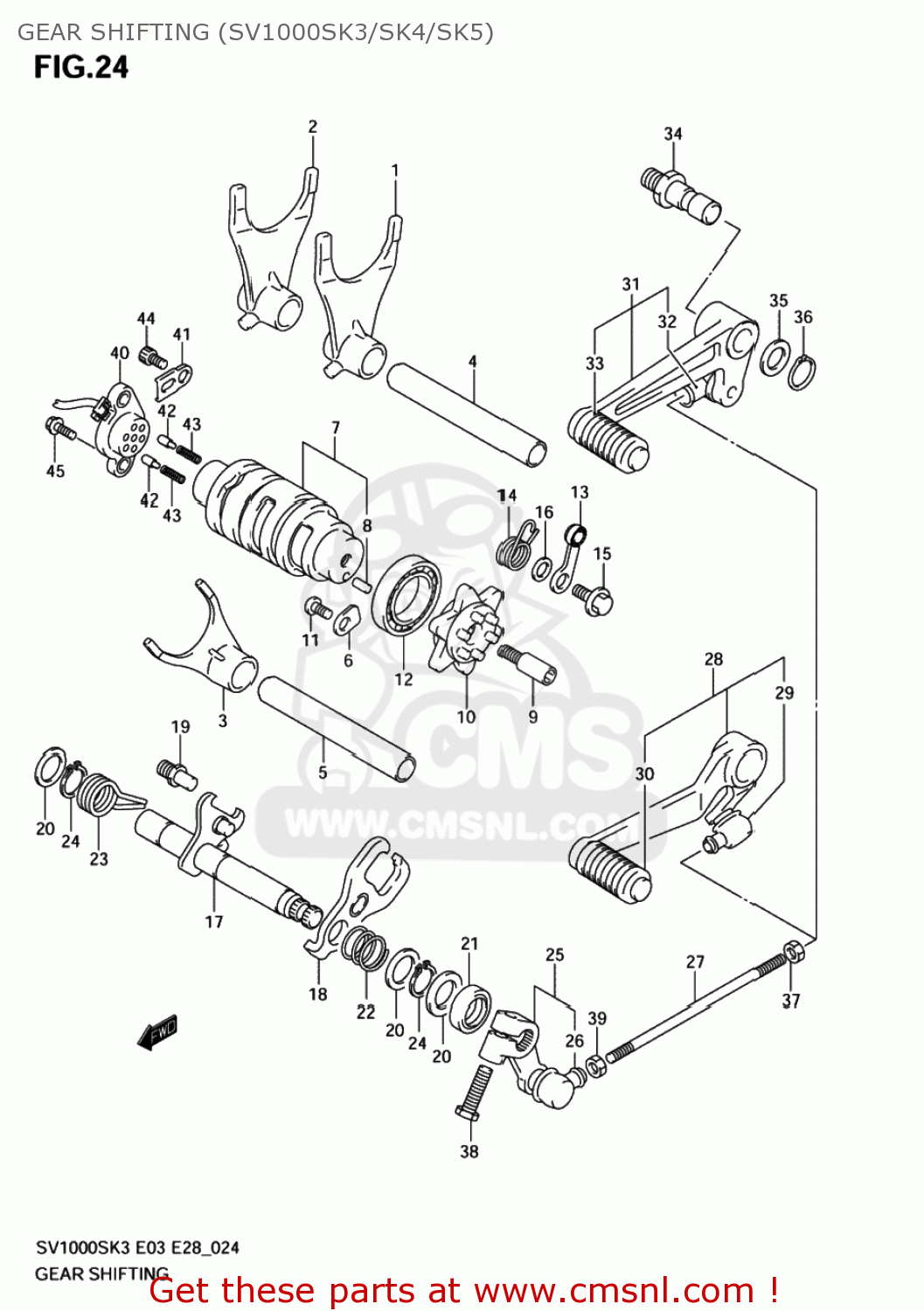

GEAR SHIFTING (SV1000SK3/SK4/SK5)

ref

part #

description

quantity

1

2521117E01
ref: 1

FORK,GEAR SHIFT

€ 64.50

2

2521135F00
ref: 2

FORK,GEAR SHIFT NO.1

€ 99.00

3

2523135F00
ref: 3

FORK,GEAR SHIFT NO.3

€ 108.50

4

2541102F20
ref: 4

SHAFT,GEAR SHIFT FORK

€ 16.00

5

2541102F20
ref: 5

SHAFT,GEAR SHIFT FORK

€ 16.00

6

2474121A00
ref: 6

RETAINER

€ 2.00

7

2531002F10
ref: 7

CAM,GEAR SHIFT

€ 198.00

8

0422104089
ref: 8

PIN

€ 1.50

9

2531212C00
ref: 9

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

10

2538113E00
ref: 10

PLATE,GEAR SHIFT CAM

€ 30.00

11

0912506110
ref: 11

BOLT(6X12)

€ 2.50

12

0811369050
ref: 12

BEARING

€ 36.00

13

2535006G00
ref: 13

STOPPER,SHIFT CAM

€ 19.00

14

2535538F00
ref: 14

SPRING,GEAR SHIFT CAM STOPPER

€ 3.00

15

0911106041
ref: 15

BOLT(6X14.3)

€ 3.00

16

0821106141
ref: 16

WASHER

€ 2.50

17

2551006G00
ref: 17
25510-06G10

SHAFT,GEAR SHI

€ 70.00

18

2551206G00
ref: 18

PLATE,GEAR SHIFT CAM DRIVE

€ 36.00

19

2567101011
ref: 19

STOPPER,GEAR SHIFT ARM

€ 3.00

20

0918114167
ref: 20

SHIM(14X22X1)

€ 3.50

21

0928314006
ref: 21

SEAL,OIL(14X22X6)

€ 6.50

22

0944017009
ref: 22

SPRING

€ 1.50

23

0944420001
ref: 23

SPRING

€ 5.00

24

0833131146
ref: 24
08331-3114A

CIRCLIP

€ 2.00

25-1

2552016G00
ref: 25-1

ARM,GEAR SHIFT LINK

€ 46.50

25-2

2552016G10
ref: 25-2

ARM,GEAR SHIFT LINK

€ 86.00

26

2552647000
ref: 26

COVER,DUST

€ 3.50

27-1

2552516G00
ref: 27-1

ROD,GEAR SHIFT LINK

€ 10.00

27-2

2552519F00
ref: 27-2

ROD,GEAR SHAFT LINK

€ 9.50

28

2560016G00
ref: 28

LEVER ASSY,GEAR SHIFT

€ 110.00

29

2552647000
ref: 29

COVER,DUST

€ 3.50

30

2565220C00
ref: 30

RUBBER,GEAR SHIFT PEDAL

€ 8.00

31

2560042F10
ref: 31

LEVER ASSY,GEAR SHIFT

€ 98.50

32

2552647000
ref: 32

COVER,DUST

€ 3.50

33

2565220C00
ref: 33

RUBBER,GEAR SHIFT PEDAL

€ 8.00

34

2561703F00
ref: 34
25617-03F10

SHAFT,GEAR SHIFT LEVER

€ 10.50

35

0916012011
ref: 35

WASHER(12.5X20X1)

€ 1.50

36

0833131126
ref: 36
08331-3112A

CIRCLIP,12 MM

€ 2.00

37

0914006025
ref: 37

NUT

€ 2.00

38

0150006253
ref: 38
01500-0625A

BOLT

€ 2.50

39

0831000067
ref: 39

NUT

€ 2.50

40

3773006G00
ref: 40

BASE ASSY,GEAR SHIFT TERMINAL

€ 130.00

41

3149745000
ref: 41

CLAMP,GENERATOR LEAD WIRE

€ 1.50

42

0920905011
ref: 42

PIN(5X15.5)

€ 2.00

43

0944004010
ref: 43

SPRING

€ 1.50

44

0713005103
ref: 44
07130-0510B

BOLT

€ 2.00

45

0712005163
ref: 45
07120-0516B

BOLT

€ 1.50
