HEADLAMP (SV1000SK3/SK4/SK5)
SV1000 2005 (K5) USA (E03)

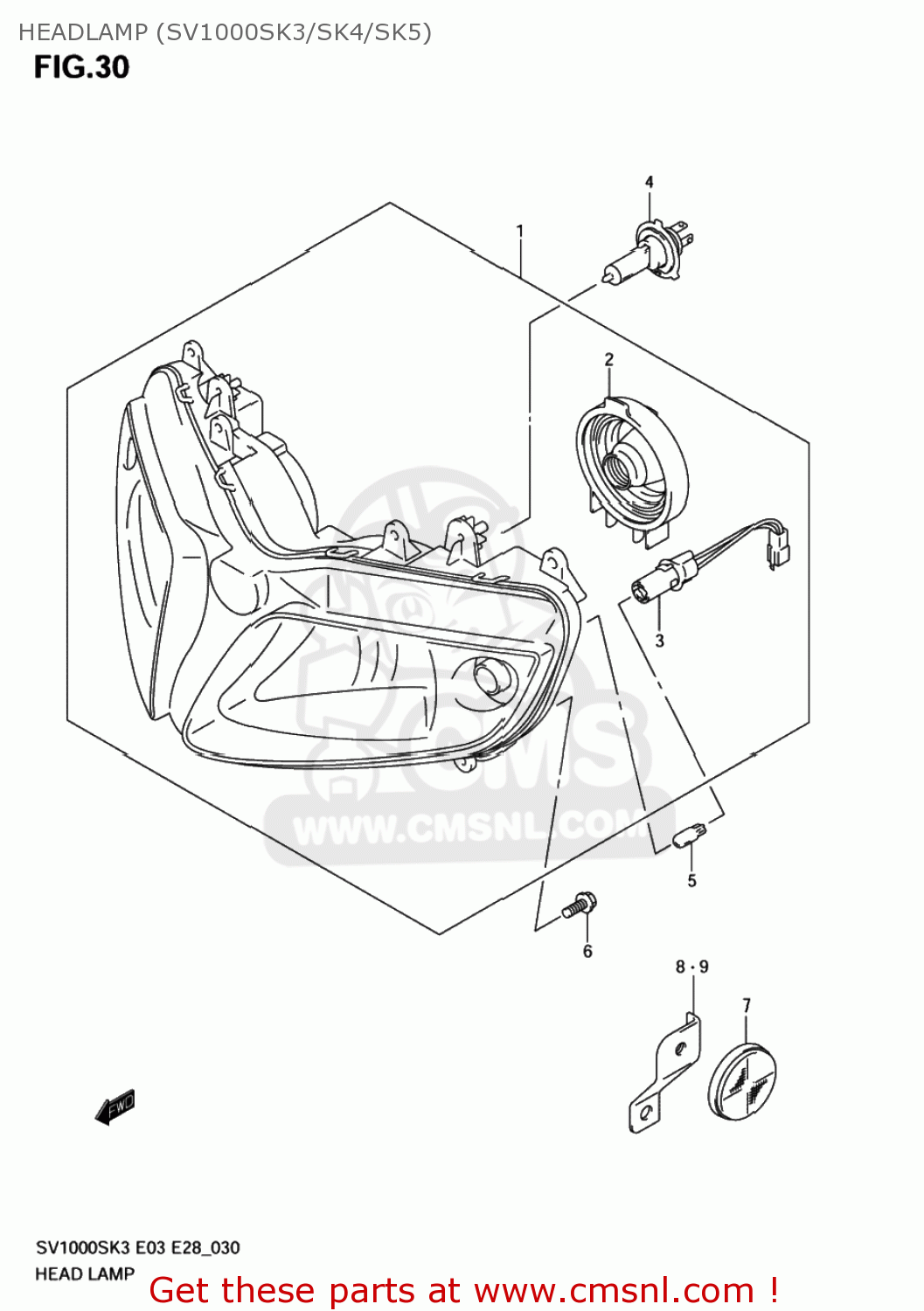

Headlamp (sv1000sk3/sk4/sk5) diagram SV1000 2005 (K5) USA (E03)
HEADLAMP (SV1000SK3/SK4/SK5) SV1000 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510016G30999
ref: 1
HEADLAMP ASSY
€ 563.00
2
3512577A00
ref: 2
COVER,SOCKET
€ 12.00
3
3611835F50
ref: 3
CORD ASSY
€ 20.50
4
0947112182
ref: 4
BULB(12V60/55W,H4)
€ 8.00
5
0947112216
ref: 5
BULB(12V5W)
€ 5.00
6
0216205163
ref: 6
02162-0516A
BOLT
€ 1.50
7
3595014A10
ref: 7
35950-14A11
REFLECTOR,REFLEX
€ 11.00
8
3595616G00
ref: 8
BRACKET,FR SIDE REFLECTOR,R
€ 4.50
9
3595716G00
ref: 9
BRACKET,FR SIDE REFLECTOR,L
€ 5.50
