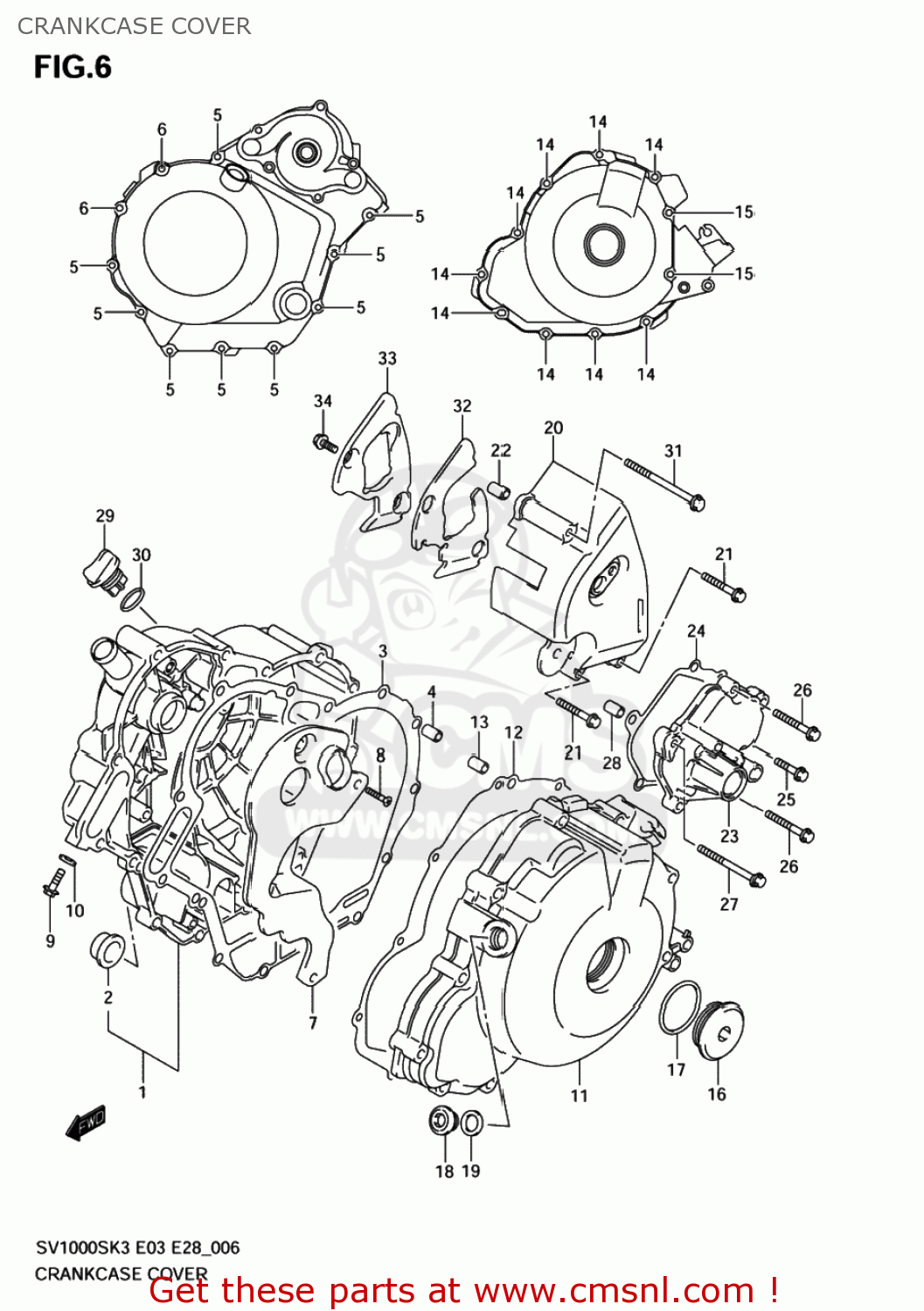

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134006G10
ref: 1-1
11340-06G20

COVER,CLUTCH

€ 308.50

1-2

1134006G20
ref: 1-2

COVER COMP,CLU

€ 308.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3-1

1148206G00
ref: 3-1
11482-06G10

GASKET,CLUTCH (NAS)

€ 19.50

3-2

1148206G10
ref: 3-2

GASKET,CLUTCH COVER (NAS)

€ 19.50

4

0421109149
ref: 4

PIN

€ 2.00

5

0910306213
ref: 5

BOLT(6X30)

€ 2.50

6

0910306257
ref: 6

BOLT(6X75)

€ 4.00

7

1134206G00
ref: 7

SEPARATOR,OIL

€ 36.50

8

0211206123
ref: 8
02112-0612A

SCREW

€ 1.50

9

0155006103
ref: 9
01550-0610A

BOLT

€ 2.50

10-1

0916806004
ref: 10-1

GASKET(6.2X11X1).2 (NAS)

€ 1.50

10-1

0916806004
ref: 10-1

GASKET(6.2X11X1).2 (NAS)

€ 1.50

10-2

0916806026
ref: 10-2

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

10-2

0916806026
ref: 10-2

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

11

1135102F51
ref: 11

COVER,MAGNETO

€ 343.00

12

1148302F10
ref: 12

GASKET,MAGNETO COVER (NAS)

€ 17.50

13

0421109149
ref: 13

PIN

€ 2.00

14

0910306214
ref: 14

BOLT(6X35)

€ 2.50

15

0910306225
ref: 15

BOLT(6X70)

€ 3.50

16

092593601620H
ref: 16

PLUG(SILVER)

€ 10.50

17

0928033004
ref: 17

O RING(D:3.1,ID:32.7)

€ 2.50

18

0924814005
ref: 18

PLUG,14X12

€ 5.00

19

0916814002
ref: 19
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

20

1136116G00
ref: 20

COVER,ENGINE SPROCKET

€ 127.00

21

0910306214
ref: 21

BOLT(6X35)

€ 2.50

22

0421109149
ref: 22

PIN

€ 2.00

23

1138106G00
ref: 23

COVER,GEAR SHIFT

€ 47.00

24

1148502F10
ref: 24

GASKET,GEAR SHIFT COVER (NAS)

€ 4.00

25

0910306126
ref: 25

BOLT(6X105)

€ 5.00

26

0154706253
ref: 26
01547-0625B

SCREW

€ 2.50

27

0154706353
ref: 27
01547-0635B

BOLT

€ 3.00

28

0421109149
ref: 28

PIN

€ 2.00

29-1

1197112C51
ref: 29-1

PLUG,OIL FILLER

€ 7.00

29-2

1197125D00
ref: 29-2

PLUG,ENGINE OIL FILLER

€ 5.50

30

0928017003
ref: 30

O RING(D:3.1,ID:16.8)

€ 2.00

31

0910306263
ref: 31

BOLT(6X80)

€ 2.50

32

1136216G00
ref: 32

DAMPER,ENG SPROCKET COVER

€ 13.50

33

1136316G00
ref: 33

PLATE,ENG SPROCKET COVER

€ 8.50

34

0910306172
ref: 34

BOLT(6X12)

€ 2.00
