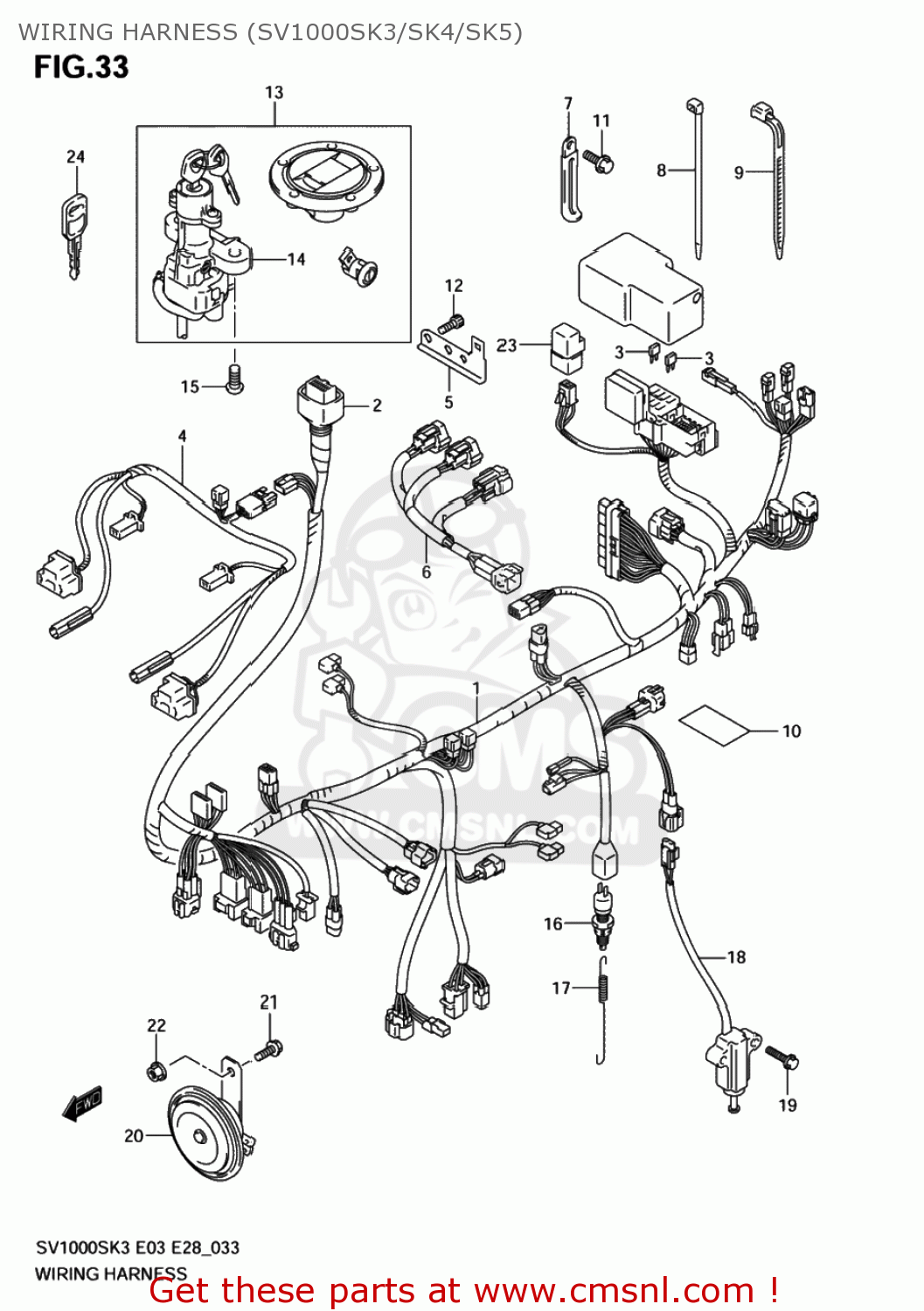

WIRING HARNESS (SV1000SK3/SK4/SK5)

ref

part #

description

quantity

1-1

3661016G30
ref: 1-1
36610-16GV3

HARNESS, WIRING NO.1

€ 593.00

1-2

3661016GF0
ref: 1-2

HARNESS,WIRING NO.1

€ 0.00

1-3

3661016GM0
ref: 1-3

HARNESS,WIRING NO.1

€ 691.50

2

3661833E00
ref: 2

COVER,SPEEDOMETER COUPLER

€ 5.50

3-1

0948110501
ref: 3-1

FUSE(10A)

€ 3.00

3-2

0948115501
ref: 3-2

FUSE(15A)

€ 1.00

4

3662016G10
ref: 4

HARNESS,WIRING NO.2

€ 166.00

5

3668716G00
ref: 5

HOLDER,COUPLER

€ 3.50

6

3685916G00
ref: 6

WIRE,INJECTOR LEAD

€ 135.50

7

0940406429
ref: 7

CLAMP(L:45)

€ 2.50

8

0940714407
ref: 8

CLAMP(L:145)

€ 4.00

9-1

0940711401
ref: 9-1

CLAMP(L:95)

€ 2.50

9-2

0940714403
ref: 9-2

CLAMP(L:125)

€ 2.50

9-3

0940718402
ref: 9-3

CLAMP(L:165)

€ 2.50

10

3661116G00
ref: 10

TAPE,WIRING HARNESS(28X50X0.13

€ 2.00

11

0155006103
ref: 11
01550-0610A

BOLT

€ 2.50

12

0713006103
ref: 12
07130-0610B

BOLT,VAC.PIPE

€ 2.50

13-1

3700016840
ref: 13-1

LOCK SET

€ 506.00

13-2

3700016820
ref: 13-2
37000-16840

LOCK SET

€ 506.00

13-3

3700016850
ref: 13-3

LOCK SET

€ 196.00

13-4

3700016830
ref: 13-4
37000-16850

LOCK SET

€ 196.00

14-1

3710016G00
ref: 14-1

LOCK ASSY,STEERING

€ 211.00

14-2

3710016G20
ref: 14-2
37100-16G00

LOCK ASSY,STEE

€ 211.00

15

0913908016
ref: 15

BOLT(8X20)

€ 3.50

16-1

3774024A00
ref: 16-1

SWITCH ASSY,STOP LAMP

€ 20.50

16-2

3774045D00
ref: 16-2
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

17-1

0944306005
ref: 17-1

SPRING

€ 6.00

17-2

0944306016
ref: 17-2

SPRING

€ 2.50

18-1

3784026X50
ref: 18-1

SWITCH ASSY,SIDE STAND WARNING

€ 100.50

18-2

3784016G00
ref: 18-2

SWITCH ASSY,SIDE STAND

€ 98.50

19-1

0910306211
ref: 19-1

BOLT(6X25)

€ 2.50

19-2

0155006257
ref: 19-2

BOLT

€ 2.50

20

3850016G00
ref: 20
38500-16G01

HORN ASSY

€ 58.50

21

0155008123
ref: 21
01550-0812A

BOLT

€ 3.50

22

0831610083
ref: 22
08316-1008B

NUT

€ 3.00

23

3874024X50
ref: 23

RELAY ASSY

€ 37.50

24

3714633E00
ref: 24

KEY,BLANK

€ 13.00
