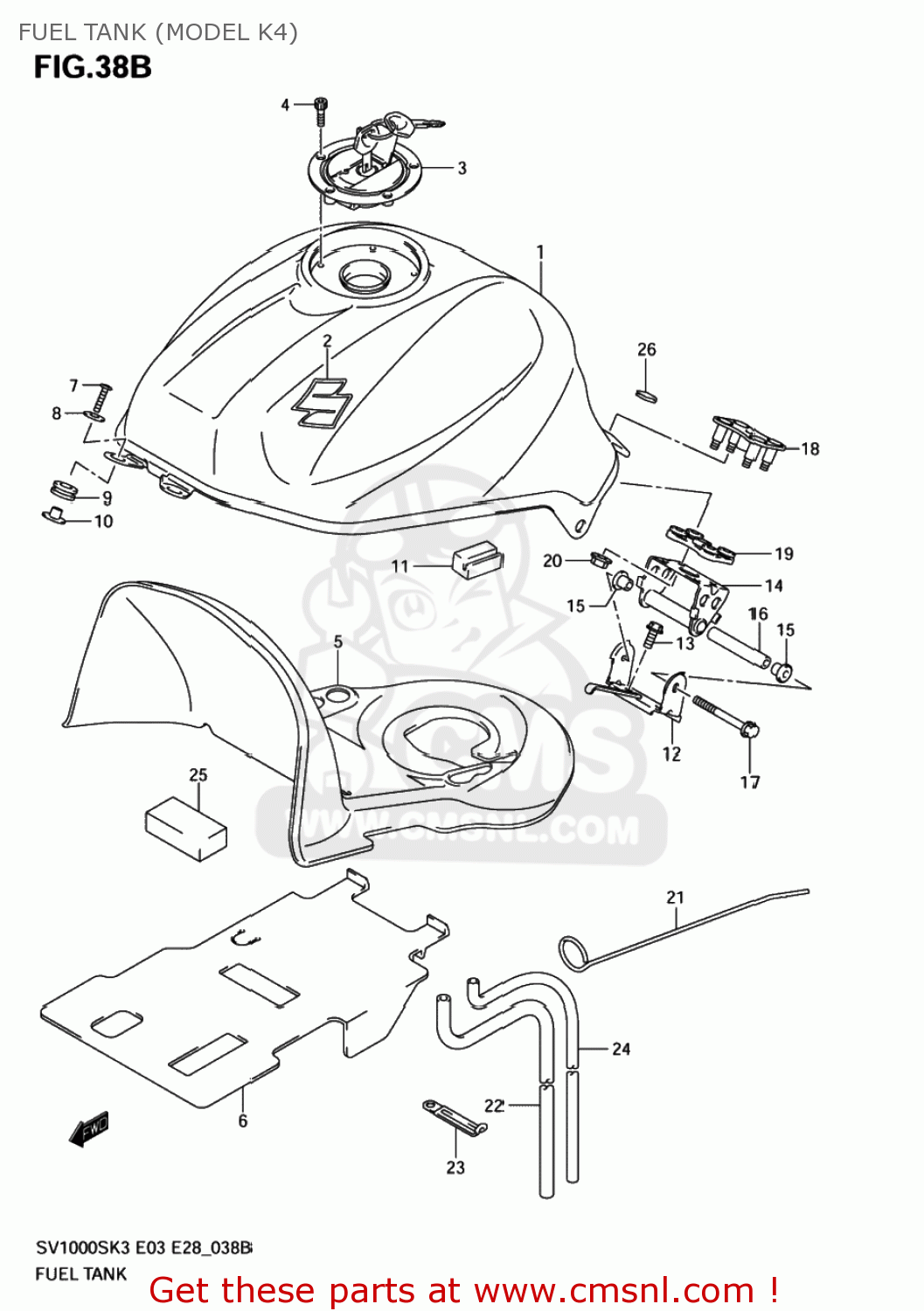

FUEL TANK (MODEL K4)

ref

part #

description

quantity

1-1

4410016G30YD8
ref: 1-1

TANK ASSY,FUEL(SILVER)

€ 0.00

1-2

4410016G30Y7H
ref: 1-2

TANK ASSY,FUEL(BLUE)

€ 0.00

1-3

4410016G30YU7
ref: 1-3

TANK ASSY,FUEL(RED)

€ 0.00

1-4

4410016G50YD8
ref: 1-4

TANK ASSY, FUEL (SILVER)

€ 0.00

1-5

4410016G50Y7H
ref: 1-5

TANK ASSY, FUEL (BLUE)

€ 0.00

1-6

4410016G50YU7
ref: 1-6

TANK ASSY, FUEL (RED)

€ 0.00

2-1

6811118G00ASL
ref: 2-1
68111-18G01-YGP

EMBLEM,"S"(YD8

€ 14.00

2-2

6811118G00M2S
ref: 2-2
68111-18G01-0AT

EMBLEM,"S"(Y7H

€ 14.00

2-3

6811118G00APJ
ref: 2-3
68111-18G01-0AT

EMBLEM,"S"(YU7

€ 14.00

3-1

4420016850
ref: 3-1

CAP SET,FUEL TANK

€ 155.50

3-2

4420016860
ref: 3-2

CAP SET,FUEL TANK

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4419116G00
ref: 5

SHIELD,FUEL TANK HEAT

€ 179.00

6

4427116G10
ref: 6

SHEET,HEAT SHIELD RUBBER

€ 50.50

7

0913906029
ref: 7

SCREW(6X25)

€ 5.00

8

0916006054
ref: 8

WASHER(6.5X22X1.6)

€ 2.00

9

4451116G00
ref: 9

CUSHION,FUEL TANK FR

€ 4.00

10

4451216G00
ref: 10

SPACER,FUEL TANK FR

€ 6.50

11

4454116G00
ref: 11

CUSHION,FUEL TANK SIDE

€ 9.00

12-1

4455016G10
ref: 12-1

BRACKET,FUEL T

€ 13.50

12-2

4455016G20
ref: 12-2

BRACKET,FUEL TANK NO.2

€ 0.00

13

0155008203
ref: 13
01550-0820A

BOLT

€ 3.00

14

4453016G10
ref: 14

BRACKET,FUEL TANK NO.1

€ 34.00

15

4454316G00
ref: 15

CUSHION,TANK RR BRACKET

€ 19.00

16

4456135F00
ref: 16

SPACER,FUEL TANK RR

€ 10.50

17

0910306060
ref: 17

BOLT(6X100)

€ 2.50

18

4457016G00
ref: 18

BRACKET,FUEL TANK RR UP

€ 12.50

19

4454216G00
ref: 19

CUSHION,FUEL TANK RR

€ 11.50

20

0831931063
ref: 20
08319-3106A

NUT

€ 2.50

21

4457416G00
ref: 21

STAY,FUEL TANK

€ 11.50

22

4442316G10
ref: 22

HOSE,WATER DRAIN

€ 9.50

23

0940406433
ref: 23

CLAMP(L:80)

€ 3.00

24

4442416G00
ref: 24
44424-18G00

HOSE,FUEL TANK

€ 13.50

25

4454516G00
ref: 25

CUSHION,FUEL TANK

€ 6.00

26

6824116G00
ref: 26

MOLDING

€ 4.50
