FRONT DAMPER (MODEL K5)

SV1000S 2004 (K4) USA (E03)

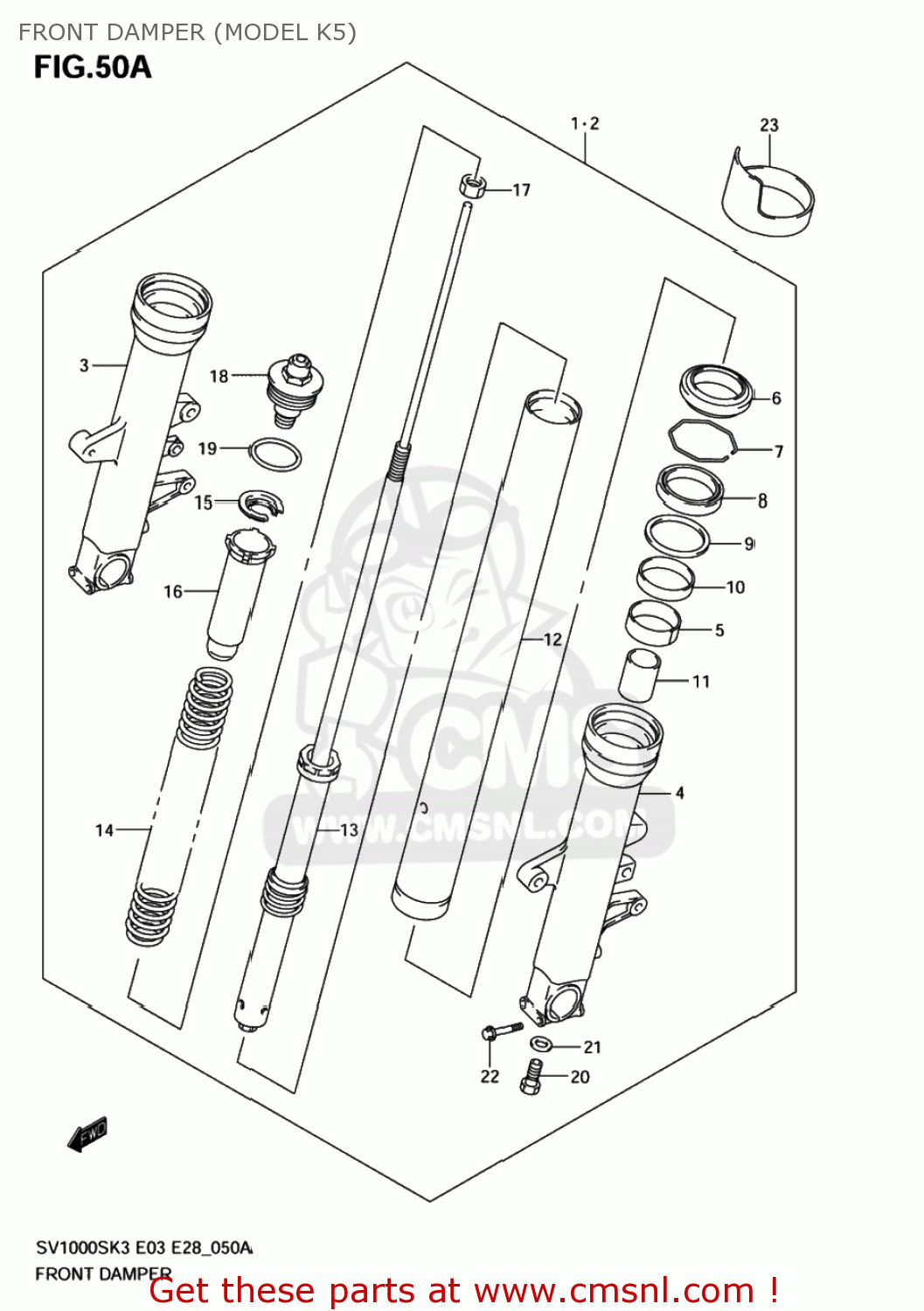

Front damper (model k5) diagram SV1000S 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K5) SV1000S 2004 (K4) USA (E03)
FRONT DAMPER (MODEL K5) SV1000S 2004 (K4) USA (E03)
FRONT DAMPER (MODEL K5) SV1000S 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5110316G60
ref: 1-1
DAMPER ASSY,FR FORK,R
€ 1,104.00
1-2
5110316G50
ref: 1-2
DAMPER ASSY,FR FORK,R
€ 803.50
2-1
5110416G60
ref: 2-1
DAMPER ASSY,FR FORK,L
€ 738.50
2-2
5110416G50
ref: 2-2
DAMPER ASSY,FR FORK,L
€ 802.50
3
5113016G50
ref: 3
TUBE,OUTER,R
€ 653.00
4
5114016G50
ref: 4
TUBE,OUTER,L
€ 705.50
5
5112137F00
ref: 5
BUSH,SLIDE
5112137F00
€ 21.50
6
5117342F00
ref: 6
SEAL,DUST
5117342F00
€ 21.00
7
5115627C00
ref: 7
RING,STOPPER
5115627C00
€ 3.00
8
5115342F00
ref: 8
SEAL,OIL
5115342F00
€ 20.00
9
5115827C00
ref: 9
WASHER
5115827C00
€ 4.00
10
5116737F00
ref: 10
BUSH,GUIDE
5116737F00
€ 16.00
11-1
5119516G60
ref: 11-1
PIECE,OIL LOCK
€ 27.50
11-2
5119516G20
ref: 11-2
PIECE,OIL LOCK
€ 61.00
12-1
5111016G60
ref: 12-1
TUBE,INNER
5111016G60
€ 536.50
12-2
5111016G10
ref: 12-2
TUBE,INNER
5111016G10
€ 596.50
13-1
5114616G60
ref: 13-1
CYLINDER
€ 464.00
13-2
5114616G00
ref: 13-2
CYLINDER
€ 450.50
14-1
5117116G60
ref: 14-1
SPRING,FR
5117116G60
€ 83.00
14-2
5117116G00
ref: 14-2
SPRING,FR
€ 71.50
15
5117216G00
ref: 15
GUIDE,SPRING
5117216G00
€ 8.50
16
5117616G00
ref: 16
SPACER
€ 25.50
17-1
5112916G60
ref: 17-1
NUT
€ 16.00
17-2
5112924F00
ref: 17-2
NUT
€ 8.50
18-1
5135116G60
ref: 18-1
CAP,FORK
€ 118.00
18-2
5135116G10
ref: 18-2
CAP,FORK
5135116G10
€ 118.00
19
5111716G00
ref: 19
O RING
5111716G00
€ 5.50
20
5114716G00
ref: 20
BOLT
5114716G00
€ 22.00
21
5114841310
ref: 21
GASKET (NAS)
5114841310
€ 2.50
22
5132840F30
ref: 22
BOLT
5132840F30
€ 5.50
23
5120116G00
ref: 23
PROTECTOR
5120116G00
€ 14.50
