HEADLAMP HOUSING (SV1000K5) NOT FOR U.S. MARKET

SV1000S 2004 (K4) USA (E03)

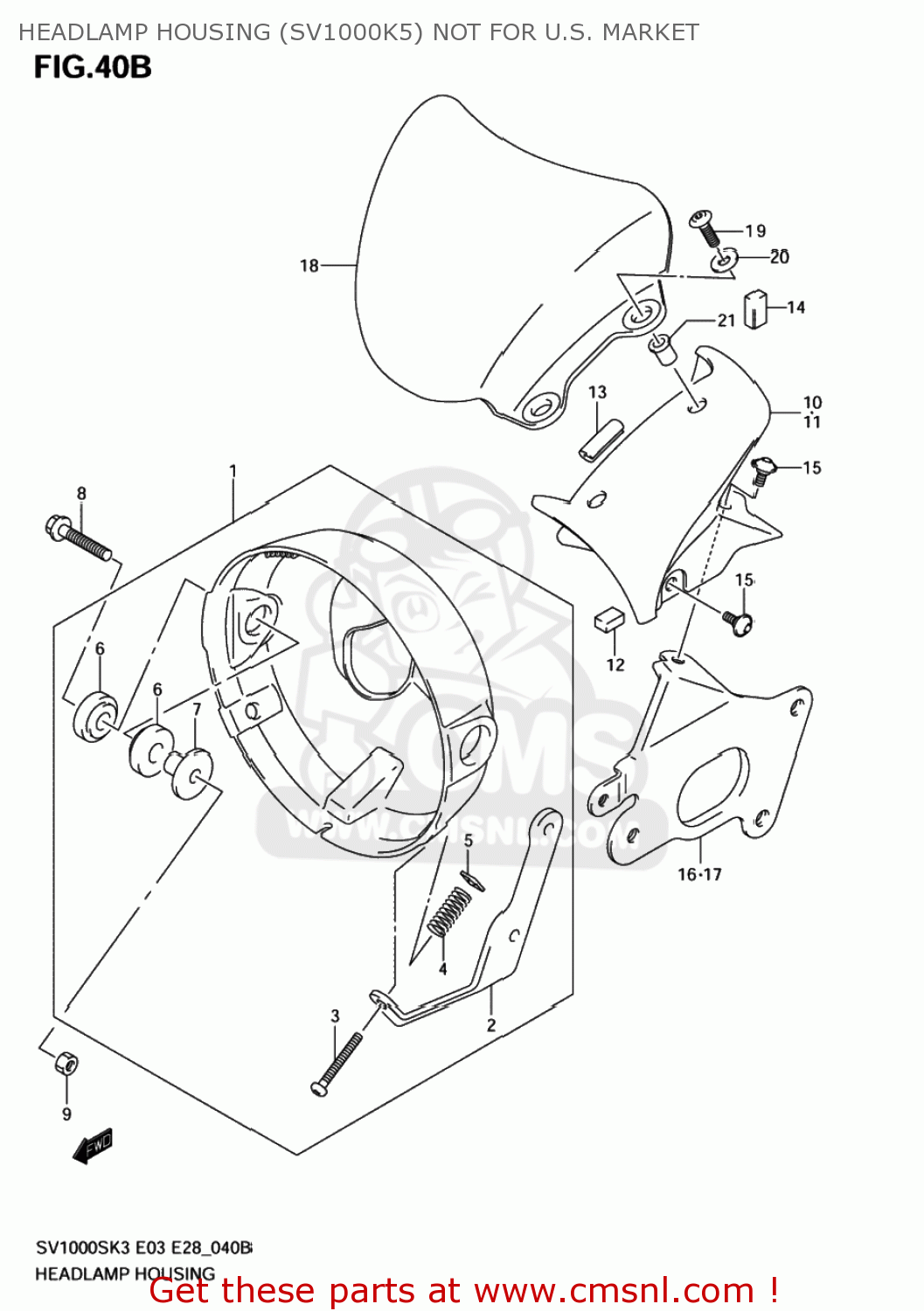

Headlamp housing (sv1000k5) not for u.s. market diagram SV1000S 2004 (K4) USA (E03)

HEADLAMP HOUSING (SV1000K5) NOT FOR U.S. MARKET SV1000S 2004 (K4) USA (E03)

HEADLAMP HOUSING (SV1000K5) NOT FOR U.S. MARKET SV1000S 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5180016GA0
ref: 1

HOUSING ASSY,HEADLAMP

€ 140.50

2

5181416GA0
ref: 2

PLATE,HEADLAMP HOUSING

€ 10.00

3

0912505128
ref: 3

SCREW(5X45)

€ 2.50

4

5183725D00
ref: 4

SPRING,HEADLAMP ADJUSTER

€ 4.00

5

5182525D00
ref: 5

NUT,HEADLAMP ADJUSTER

€ 3.50

6

0932012065
ref: 6

CUSHION

€ 3.00

7

0918008217
ref: 7

SPACER(8.6X12X21.3)

€ 3.50

8

0910308391
ref: 8

BOLT(8X35)

€ 3.00

9

0831000083
ref: 9
08310-0008A

NUT

€ 1.50

10-1

5181416G00YD8
ref: 10-1

COVER,LAMP HOUSING,R(SILVER)

€ 39.50

10-2

5181416G00YU7
ref: 10-2

COVER,HEADLAMP HSG,R

€ 38.50

10-3

5181416G00YAY
ref: 10-3

COVER,HEADLAMP HSG,R

€ 38.50

11-1

5181516G00YD8
ref: 11-1

COVER,LAMP HOUSING,L(SILVER)

€ 39.50

11-2

5181516G00YU7
ref: 11-2

COVER,HEADLAMP HSG,L

€ 50.00

11-3

5181516G00YAY
ref: 11-3

COVER,HEADLAMP HSG,L

€ 39.00

12

9214614G10
ref: 12

CUSHION,FR PANEL LID

€ 3.50

13

9463135F00
ref: 13

MOLDING

€ 3.00

14

9463222D00
ref: 14

TAPE

€ 6.00

15

0913905064
ref: 15

SCREW(5X13)

€ 2.50

16

5185016GB0
ref: 16

PLATE,HOUSING COVER,R

€ 20.50

17

5186016GB0
ref: 17

PLATE,HOUSING COVER,L

€ 19.00

18

5181616G00
ref: 18

COVER,METER

€ 87.00

19

0913905032
ref: 19

SCREW(5X18)

€ 2.50

20

0832201053
ref: 20
08322-0105A

WASHER

€ 2.50

21

0915905019
ref: 21

NUT

€ 5.50
