FRONT FENDER
SV1000S 2004 (K4) USA (E03)

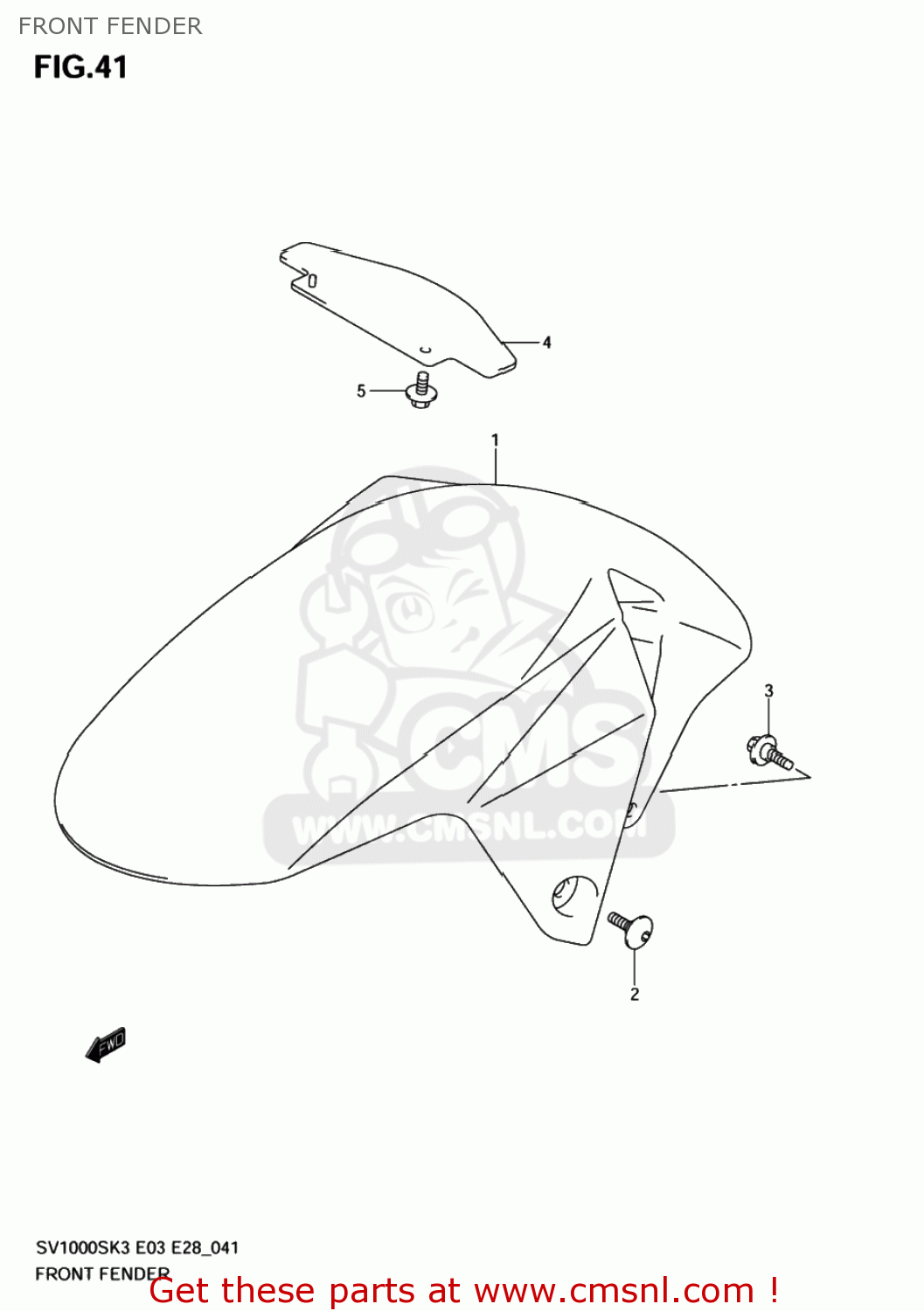

Front fender diagram SV1000S 2004 (K4) USA (E03)
FRONT FENDER SV1000S 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5311116G00YD8
ref: 1-1
53111-16G01-YD8
FENDER,FRONT
€ 136.50
1-2
5311116G00YC2
ref: 1-2
53111-16G01-YC2
FENDER,FRONT
€ 139.50
1-3
5311116G00YAV
ref: 1-3
53111-16G01-YAV
FENDER,FRONT(O
€ 91.00
1-4
5311116G0033J
ref: 1-4
FENDER,FRONT
€ 136.50
1-5
5311116G00Y7H
ref: 1-5
53111-16G01-Y7H
FENDER, FRONT (BLUE)
€ 135.50
1-6
5311116G00YU7
ref: 1-6
53111-16G01-YU7
FENDER,FRONT(R
€ 106.50
1-7
5311116G00YAY
ref: 1-7
53111-16G01-YAY
FENDER FRONT
€ 150.50
2
0913906121
ref: 2
SCREW(6X16)
€ 5.50
3
0912286005
ref: 3
SCREW(6X16)
€ 6.00
4
5318216G00
ref: 4
FENDER,FR UPPER
€ 9.50
5
0911106063
ref: 5
09111-06085
BOLT 6X14
€ 4.50
