AIR CLEANER
SV1000S 2007 (K7) USA (E03)

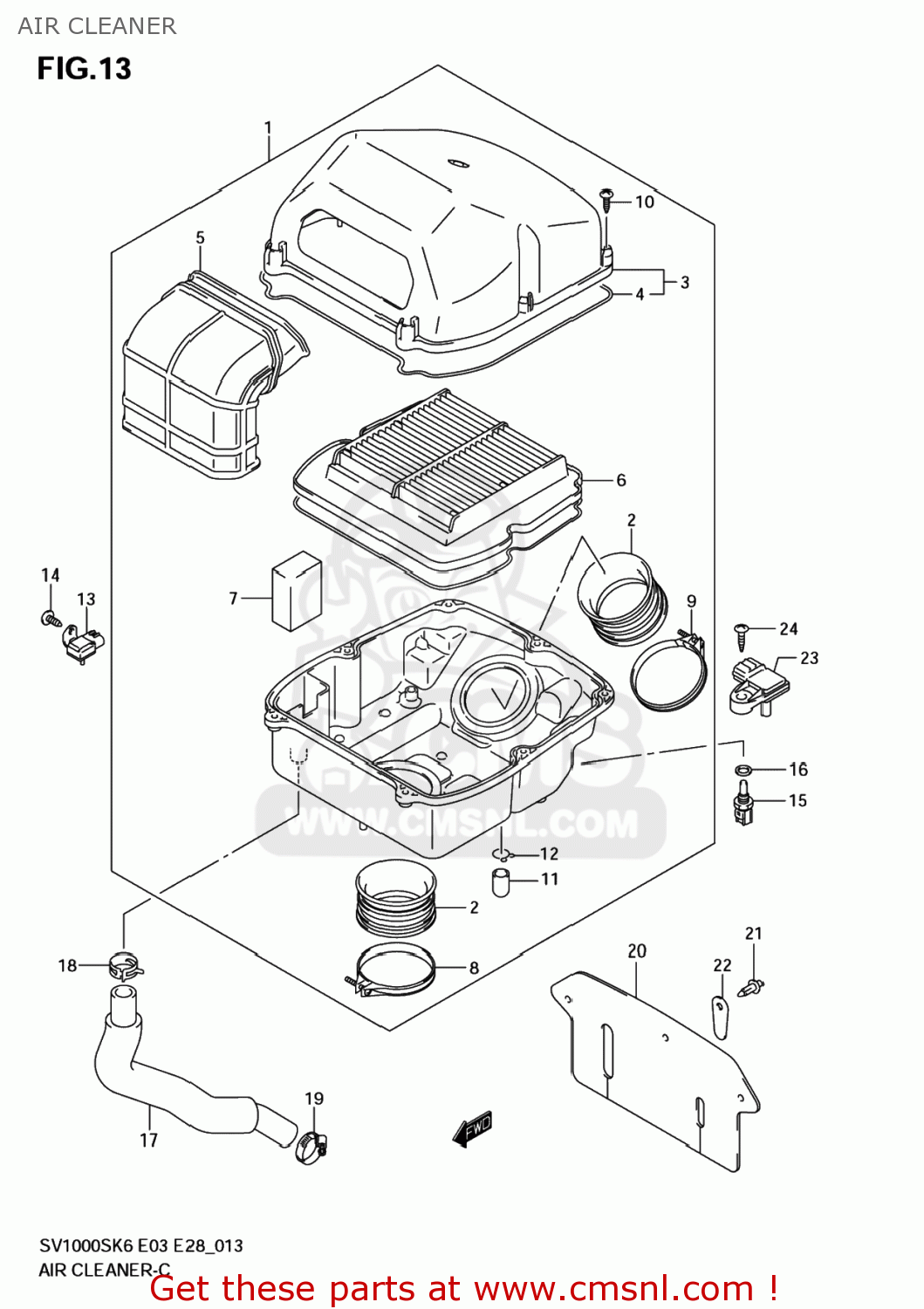

Air cleaner diagram SV1000S 2007 (K7) USA (E03)
AIR CLEANER SV1000S 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370016G20
ref: 1
CLEANER ASSY,AIR
€ 190.00
2
1388116G00
ref: 2
TUBE,OUTLET
€ 13.50
3
1374016G00
ref: 3
CAP,AIR CLEANER
€ 33.00
4
1374616G00
ref: 4
GASKET (NAS)
€ 8.50
5
1389116G20
ref: 5
TUBE,INLET
€ 41.50
6
1378016G00
ref: 6
FILTER
€ 28.00
7
1378816G00
ref: 7
FILTER,BREATHER
€ 13.50
8
1382616G00
ref: 8
CLAMP
€ 6.50
9
1382616G00
ref: 9
CLAMP
€ 6.50
10
0354105203
ref: 10
03541-0520A
SCREW
€ 2.50
11
1385941B10
ref: 11
PLUG
€ 5.50
12
0940114301
ref: 12
CLIP
€ 2.00
13
1562035F00
ref: 13
SENSOR,BOOST
€ 252.50
14
0354105123
ref: 14
03541-0512A
SCREW
€ 2.00
15
1365061B00
ref: 15
SENSOR,WATER TEMP
€ 60.00
16
0916812017
ref: 16
GASKET(12X17X1) (NAS)
€ 2.00
17
1385016G00
ref: 17
TUBE,BREATHER
€ 28.50
18
0940120405
ref: 18
CLIP
€ 3.00
19
0940228511
ref: 19
CLAMP
€ 8.50
20
1373916G00
ref: 20
GUARD,WATER
€ 22.50
21
0940906317
ref: 21
CLIP
€ 2.50
22
1373816G00
ref: 22
PLATE,WATER GUARD
€ 4.50
23
1562016G10
ref: 23
SENSOR,BOOST
€ 183.50
24
0354105253
ref: 24
03541-0525B
SCREW
€ 2.50
