WIRING HARNESS (SV1000) (NOT FOR US MARKET)

SV1000S 2007 (K7) USA (E03)

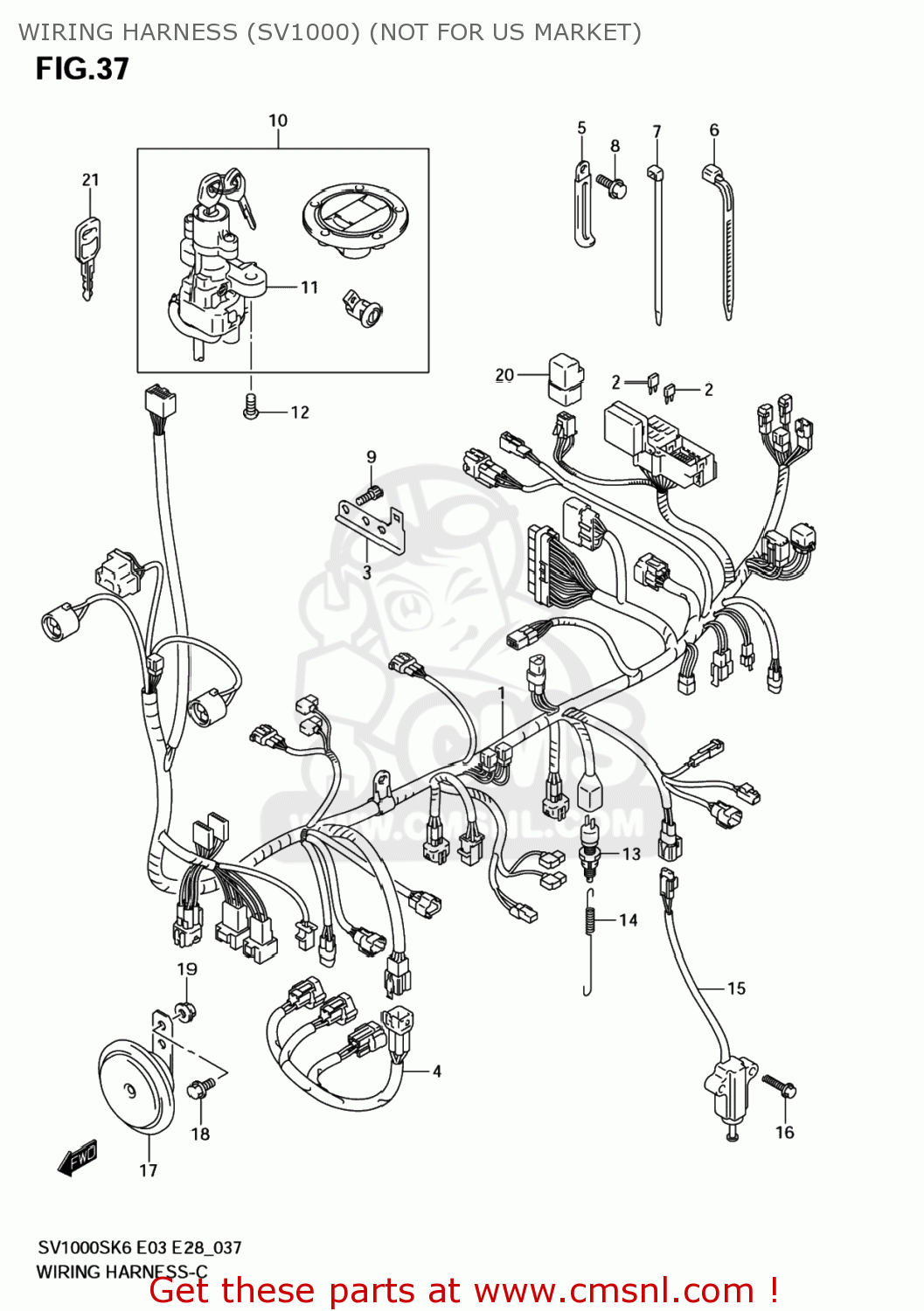

Wiring harness (sv1000) (not for us market) diagram SV1000S 2007 (K7) USA (E03)

WIRING HARNESS (SV1000) (NOT FOR US MARKET) SV1000S 2007 (K7) USA (E03)

WIRING HARNESS (SV1000) (NOT FOR US MARKET) SV1000S 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661016GJ0
ref: 1

HARNESS,WIRING

€ 0.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3668716G00
ref: 3

HOLDER,COUPLER

€ 3.50

4

3685916G00
ref: 4

WIRE,INJECTOR LEAD

€ 135.50

5-1

0940406429
ref: 5-1

CLAMP(L:45)

€ 2.50

5-2

0940408207
ref: 5-2

CLAMP(L:80)

€ 3.00

6-1

0940711401
ref: 6-1

CLAMP(L:95)

€ 2.50

6-2

0940718402
ref: 6-2

CLAMP(L:165)

€ 2.50

7

0940714407
ref: 7

CLAMP(L:145)

€ 4.00

8

015500612B
ref: 8

BOLT

€ 2.50

9

071300610B
ref: 9

BOLT

€ 2.50

10

3700016850
ref: 10

LOCK SET

€ 196.00

11

3710016G00
ref: 11

LOCK ASSY,STEERING

€ 211.00

12

0913908016
ref: 12

BOLT(8X20)

€ 3.50

13

3774045D00
ref: 13
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

14

0944306016
ref: 14

SPRING

€ 2.50

15

3784016G00
ref: 15

SWITCH ASSY,SIDE STAND

€ 98.50

16

0155006257
ref: 16

BOLT

€ 2.50

17

3850016G00
ref: 17
38500-16G01

HORN ASSY

€ 58.50

18

015500812B
ref: 18

BOLT

€ 3.50

19

083161008B
ref: 19

NUT

€ 3.00

20

3874024X50
ref: 20

RELAY ASSY

€ 37.50

21

3714633E00
ref: 21

KEY,BLANK

€ 13.00
