REAR SWINGING ARM
SV1000S 2007 (K7) USA (E03)

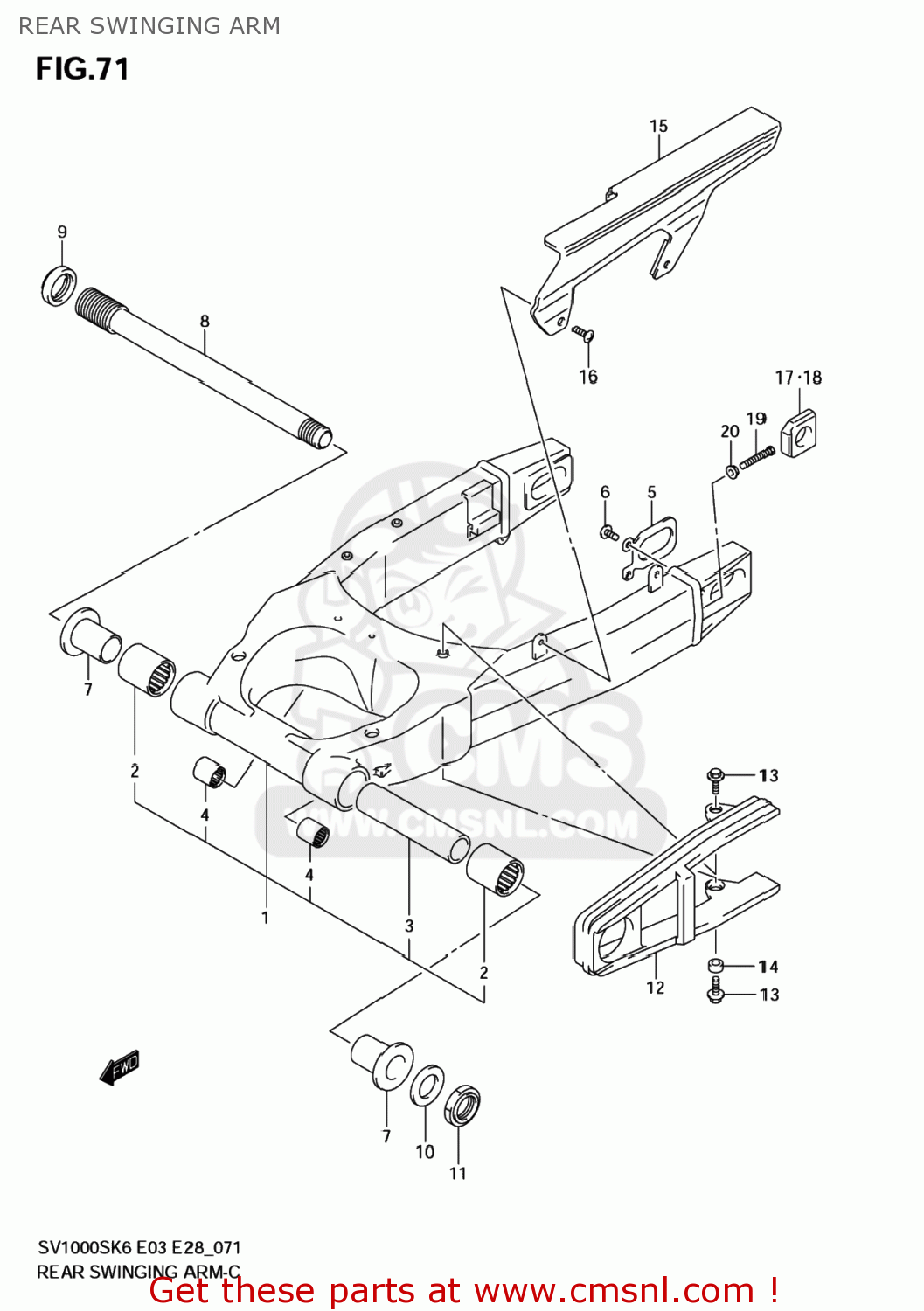

Rear swinging arm diagram SV1000S 2007 (K7) USA (E03)
REAR SWINGING ARM SV1000S 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100016G30YAP
ref: 1-1
SWINGINGARM ASSY,RR
€ 844.00
1-2
6100016G40YAP
ref: 1-2
SWINGINGARM ASSY,RR
€ 1,236.00
2
0926330053
ref: 2
BEARING(30X40X30)
€ 54.00
3-1
6128133E10
ref: 3-1
61281-33E20
SPACER,REAR SWING PIVOT,CENTER
€ 26.00
3-2
6128133E20
ref: 3-2
SPACER,RR SWGARM PIVOT CTR
€ 26.00
4
0926317039
ref: 4
BEARING(17X24X20)
€ 18.00
5
6112433E00
ref: 5
PLATE,RR SWING ARM BRKT
€ 3.50
6
0912506073
ref: 6
SCREW(6X16)
€ 3.00
7
6125116G00
ref: 7
SPACER,RR SWGARM PIVOT BEARING
€ 26.50
8
6121116G00
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 74.00
9
6121440C31
ref: 9
NUT,RR SWGARM PIVOT BOLT
€ 16.50
10
0916025070
ref: 10
WASHER(25.2X42X3.2)
€ 4.50
11
0915925001
ref: 11
09159-25003
NUT
€ 29.00
12
6127316G00
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
€ 34.00
13
0911606192
ref: 13
BOLT(6X20)
€ 2.00
14
0918006299
ref: 14
SPACER(6.5X12X5.5)
€ 2.50
15
6131016G00
ref: 15
CASE,CHAIN
€ 44.00
16
0911306001
ref: 16
BOLT(6X16)
€ 3.00
17
6144540F00
ref: 17
ADJUSTER,CHAIN,R
€ 31.00
18
6144640F00
ref: 18
ADJUSTER,CHAIN,L
€ 31.00
19
0910008287
ref: 19
BOLT(8X50)
€ 3.00
20-1
0831610083
ref: 20-1
08316-1008B
NUT
€ 3.00
20-2
083161008B
ref: 20-2
NUT
€ 3.00
