HEADLAMP (SV1000S)

SV1000S 2007 (K7) USA (E03)

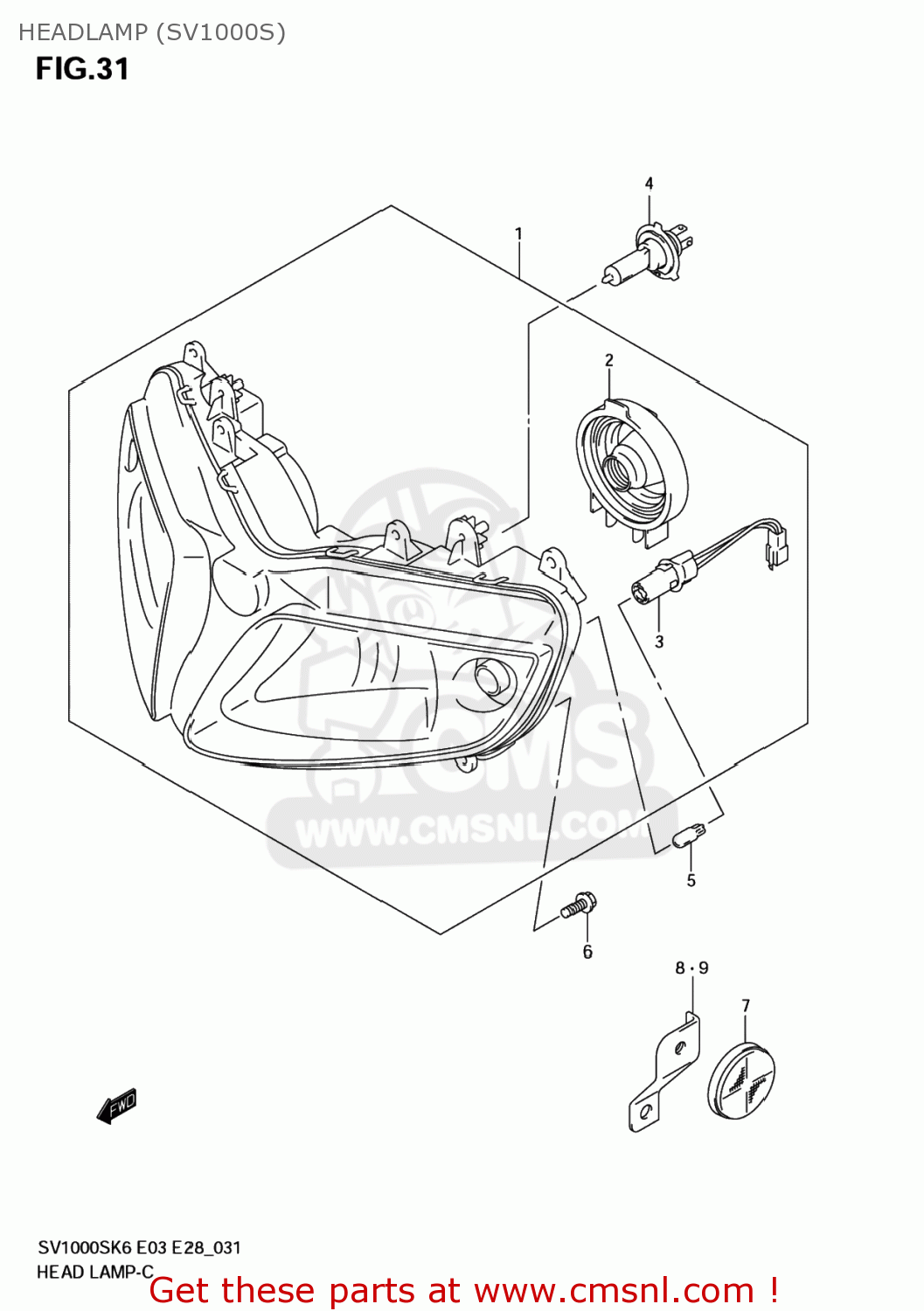

Headlamp (sv1000s) diagram SV1000S 2007 (K7) USA (E03)

HEADLAMP (SV1000S) SV1000S 2007 (K7) USA (E03)

HEADLAMP (SV1000S) SV1000S 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510016G30999
ref: 1

HEADLAMP ASSY

€ 563.00

2

3512577A00
ref: 2

COVER,SOCKET

€ 12.00

3

3611835F50
ref: 3

CORD ASSY

€ 20.50

4

0947112182
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112216
ref: 5

BULB(12V5W)

€ 5.00

6

021620516B
ref: 6

SCREW

€ 1.50

7

3595014A10
ref: 7
35950-14A11

REFLECTOR,REFLEX

€ 11.00

8

3595616G00
ref: 8

BRACKET,FR SIDE REFLECTOR,R

€ 4.50

9

3595716G00
ref: 9

BRACKET,FR SIDE REFLECTOR,L

€ 5.50
