FRAME

SV1000S 2007 (K7) USA (E03)

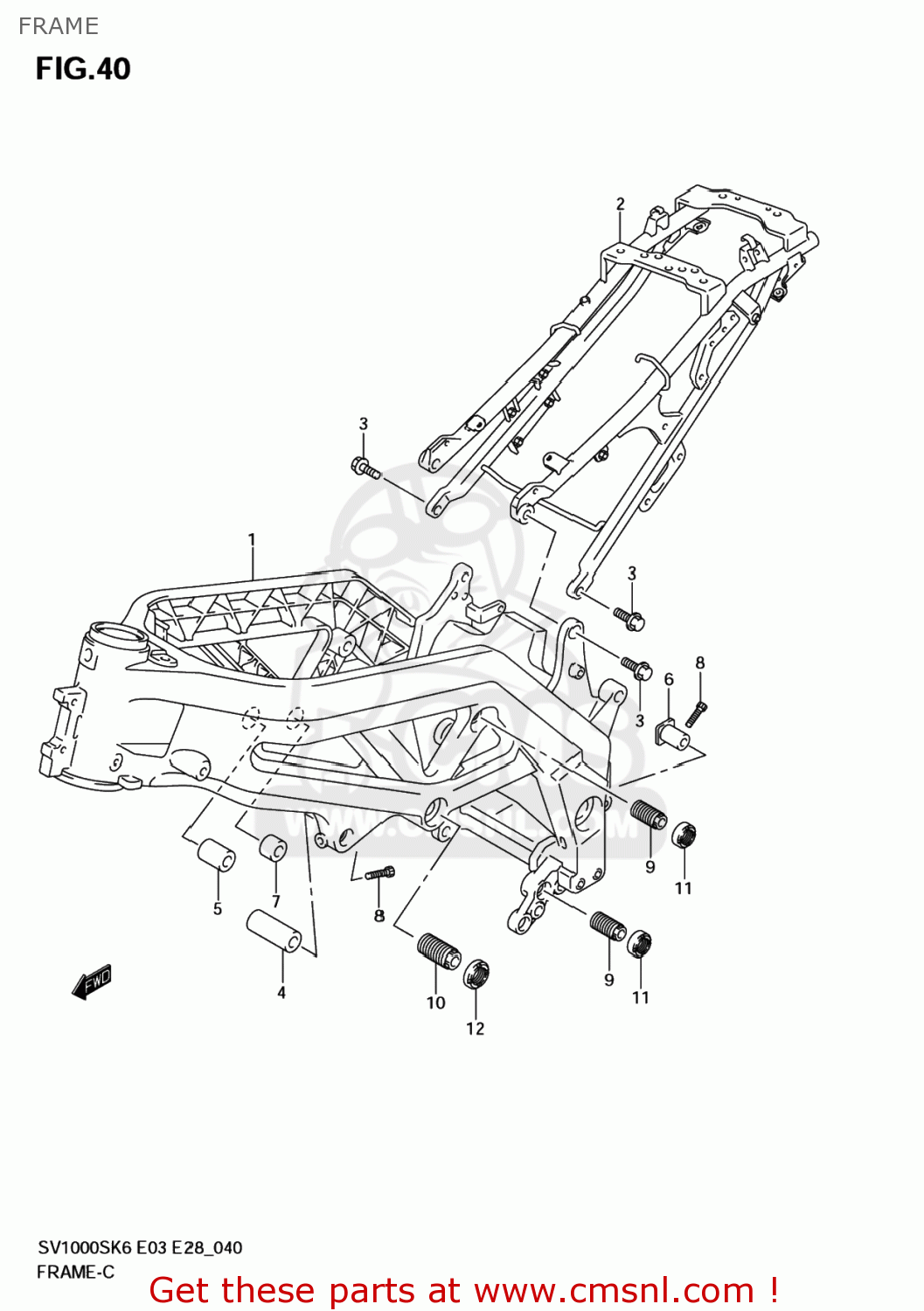

Frame diagram SV1000S 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110016G11YAP
ref: 1-1

FRAME(BLACK)

€ 1,636.50

1-2

4110016G20YAP
ref: 1-2

FRAME(BLACK)

€ 1,636.50

4120016G31YAP
ref: 2

RAIL,SEAT(BLACK)

€ 694.00

4123318G00
ref: 3

BOLT,SEAT RAIL

€ 7.50

4119802F00
ref: 4

SPACER,ENG HEAD MTG FR,L

€ 31.50

4194102F00
ref: 5

SPACER,ENG HEAD MTG RR,R

€ 20.00

4194119F01
ref: 6

SPACER,MOUNTING RR UPR,R

€ 25.00

4194216G00
ref: 7

SPACER,ENG HEAD MTG CTR,R

€ 11.50

0910608170
ref: 8

BOLT(8X32)

€ 3.00

4192116G00
ref: 9

BOLT,CASE LWR & RR HEAD ADJ

€ 10.50

4192316G00
ref: 10

BOLT,CRANK CASE ADJUST CTR

€ 19.00

4192233E00
ref: 11

NUT,CRANK CASE ADJUST BOLT

€ 18.50

4192219F00
ref: 12
41922-19F20

NUT,CRANKCASE ADJUST

€ 12.00
