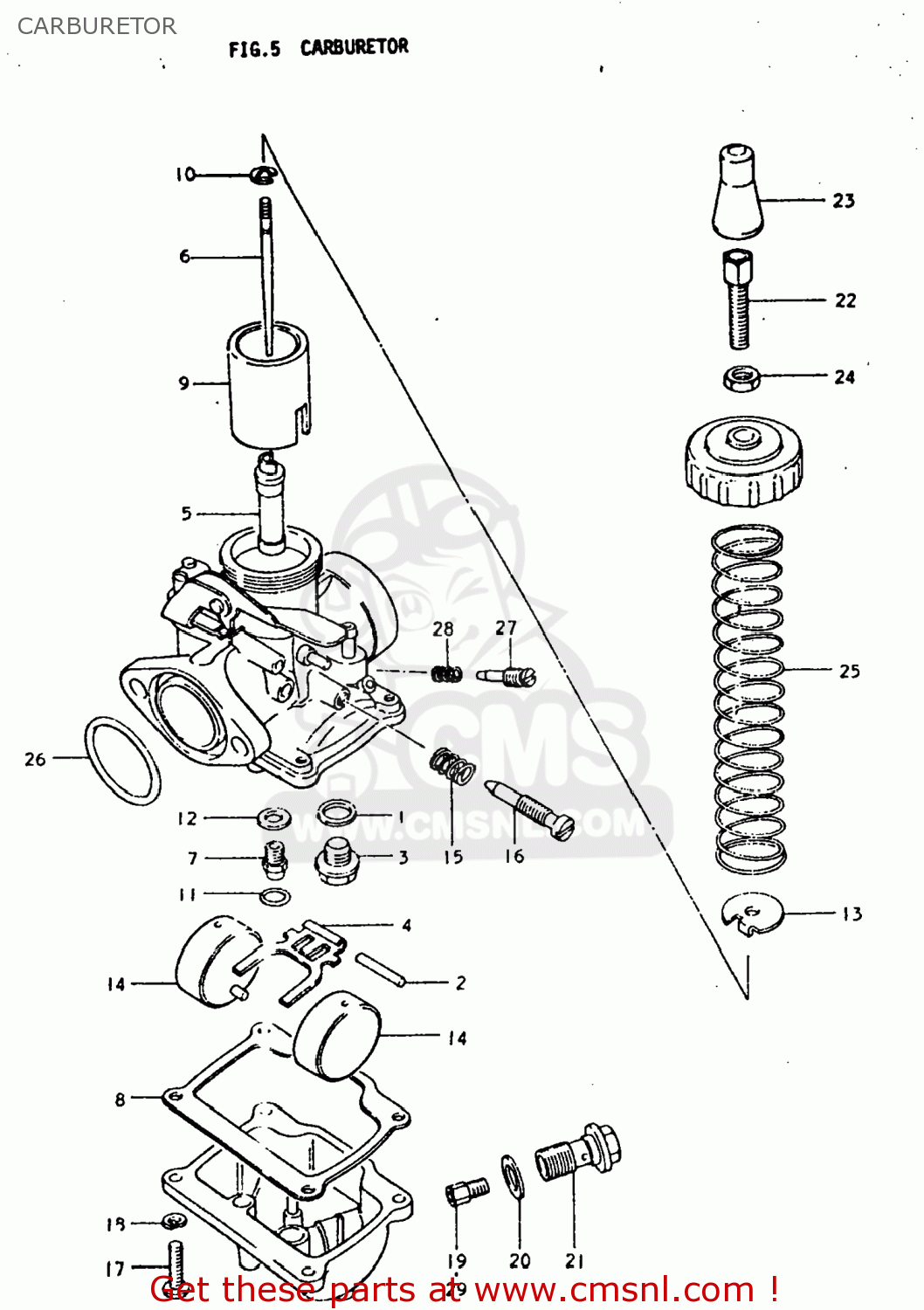

CARBURETOR

ref

part #

description

quantity

0

1320029110
ref: 0

CARBURETOR ASSEMBLY

€ 120.50

1

1339258600
ref: 1

GASKET,VALVE SEAT (NAS)

€ 2.00

2-1

1325411010
ref: 2-1

PIN,FLOAT

€ 3.00

2-2

1325435013
ref: 2-2
13254-01010

PIN,FLOAT

€ 3.00

3

1337028010
ref: 3
13370-48051

VALVE ASSEMBLY,NEEDLE

€ 59.50

4

1325328010
ref: 4

ARM,FLOAT

€ 3.00

5

0949400080
ref: 5

JET,NEEDLE

€ 5.50

6

1338329110
ref: 6

NEEDLE JET

€ 4.00

7

0949217002
ref: 7
09492-17006

JET

€ 7.50

8

1325111010
ref: 8

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

9

1355129110
ref: 9

VALVE,THROTTLE

€ 16.00

10

1339410010
ref: 10

CLIP

€ 4.50

11

1329428010
ref: 11

O RING

€ 6.50

12

1338203110
ref: 12

WASHER

€ 2.50

13

1358128010
ref: 13

SEAT,THROTTLE VALVE SPRING

€ 6.50

14

1325218620
ref: 14

FLOAT

€ 27.50

15

1326803110
ref: 15

SPRING,THROTTLE SCREW

€ 3.50

16

1326728110
ref: 16

SCREW,THROTTLE STOP

€ 6.00

17

0211104168
ref: 17
02112-0416A

SCREW

€ 1.00

18

0832121048
ref: 18
08321-0104A

LOCK WASHER

€ 2.00

19

0949126003
ref: 19

JET,MAIN(130)

€ 9.00

20

1333297010
ref: 20

WASHER

€ 3.00

21-1

1333328010
ref: 21-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 7.50

21-2

1333329110
ref: 21-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 7.50

22

1357722600
ref: 22

ADJUSTER,CABLE

€ 6.00

23

1368116601
ref: 23

CAP

€ 7.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1357397010
ref: 25
13573-30900

SPRING, THROTTLE VALVE

€ 6.00

26

1329528010
ref: 26

O RING

€ 3.50

27

1326915010
ref: 27

SCREW,PILOT AIR

€ 10.50

28

1326801010
ref: 28

SPRING

€ 3.50

29-1

0949125004
ref: 29-1
09491-25009

JET

€ 5.50

29-2

0949127005
ref: 29-2
09491-27015

JET

€ 10.50

29-3

0949128002
ref: 29-3
09491-28009

JET

€ 6.50

29-4

0949129002
ref: 29-4

JET,MAIN(145)

€ 8.00
