CHAIN CASE

TC185 1974 (L) USA (E03)

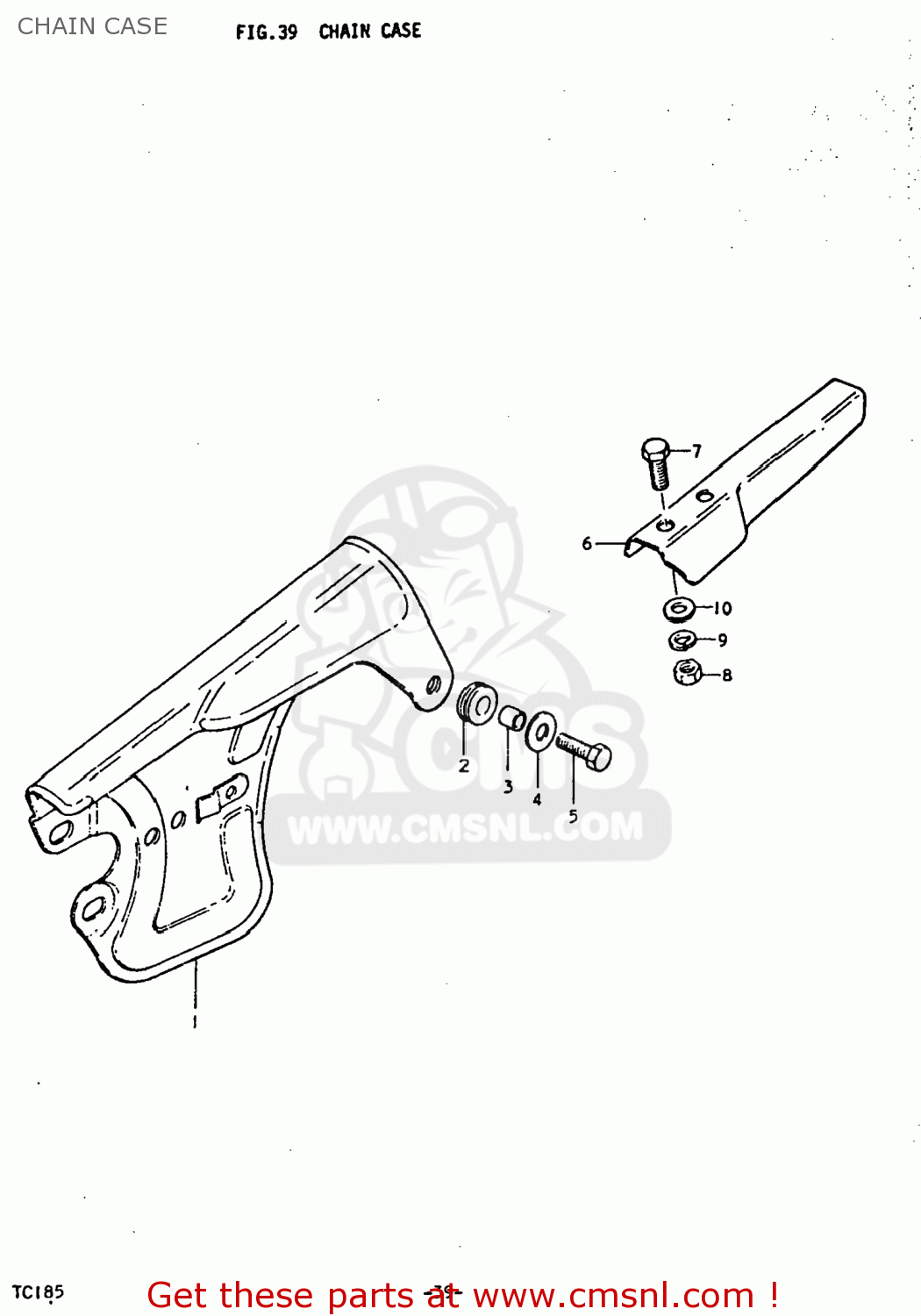

Chain case diagram TC185 1974 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6131028100
ref: 1-1

CASE,CHAIN

€ 16.00

1-2

6131028000126
ref: 1-2
61310-28000-019

CASE,CHAIN

€ 79.50

1-3

CASE,CHAIN

€ 79.50

0932008007
ref: 2
09320-08021

CUSHION

€ 4.00

0918007005
ref: 3
09180-06259

SPACER (7X9X7)

€ 2.50

0916006027
ref: 4
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

0111206128
ref: 5
01500-06127

BOLT

€ 2.00

6133130000
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 5.50

0111206108
ref: 7
01500-06107

BOLT

€ 2.00

0831111068
ref: 8
08310-00067

NUT

€ 2.50

0832121068
ref: 9
08321-01067

LOCK WASHER

€ 2.50

0832221068
ref: 10
08322-01067

WASHER

€ 2.00
