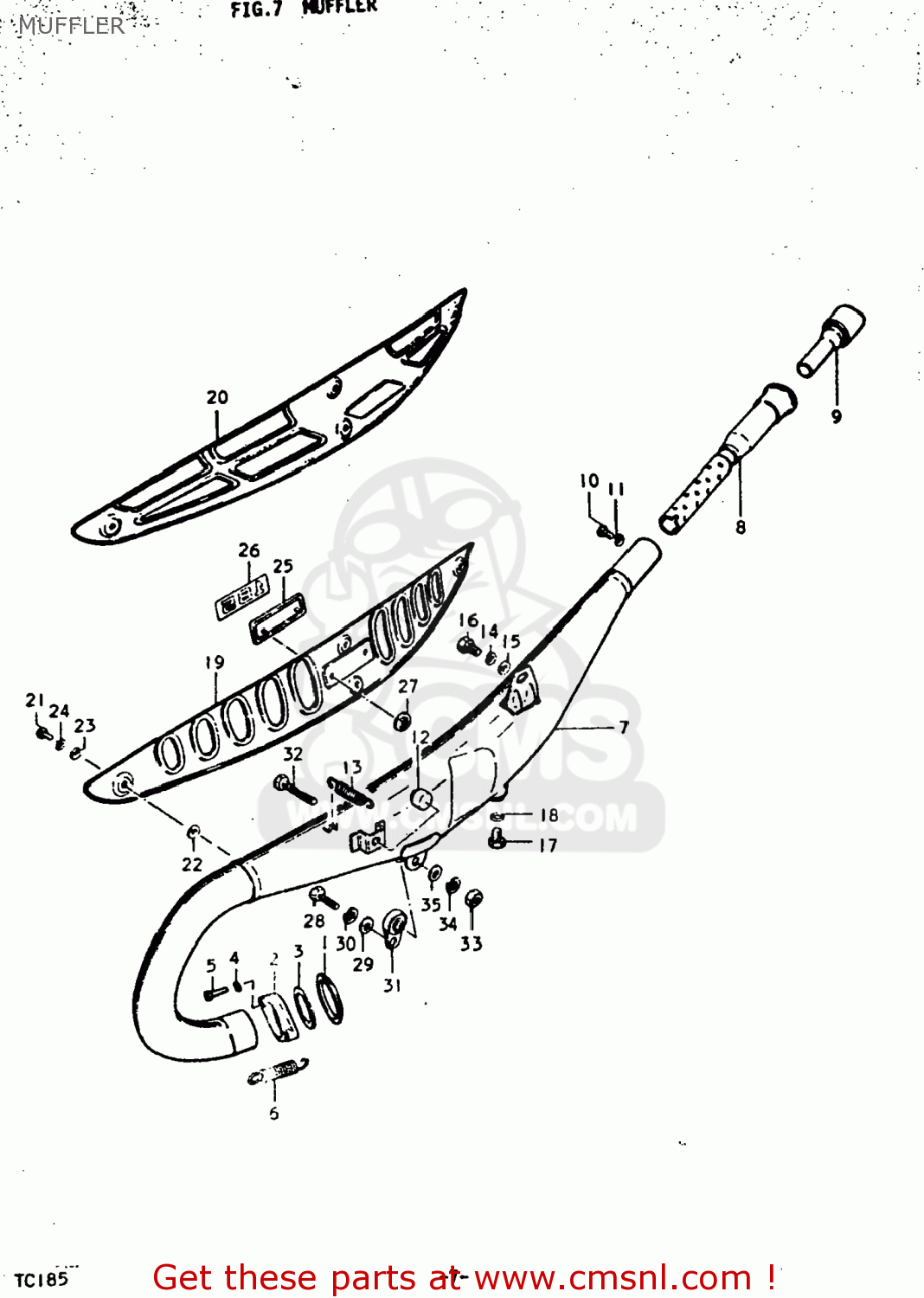

MUFFLER

ref

part #

description

quantity

1

1418128080
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 10.50

2

1418228000
ref: 2

CLAMP,EXHAUST PIPE

€ 11.50

3

1418428010
ref: 3
14184-28011

CUSHION,EXHAUST PIPE

€ 4.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

0111206258
ref: 5
01500-06257

BOLT

€ 2.00

6

0944311002
ref: 6

SPRING

€ 4.50

7

1430129630
ref: 7
14301-29650-H01

MUFFLER ASSEMBLY

€ 114.00

8

1481029603
ref: 8

ARRESTER,SPARK

€ 36.00

9

1485027600
ref: 9

TUBE,MUFFLER CLEAN OUT

€ 24.50

10

0912806013
ref: 10

SCREW(6X8)

€ 1.50

11

0832121068
ref: 11
08321-01067

LOCK WASHER

€ 2.50

12

0932110002
ref: 12

CUSHION(11.5X22X20)

€ 2.00

13

0944311002
ref: 13

SPRING

€ 4.50

14

0832121088
ref: 14
08321-01087

LOCK WASHER

€ 2.00

15

0916008013
ref: 15
09160-08120

WASHER (8.5X18X2)

€ 2.50

16

0112208168
ref: 16
01500-0816B

BOLT

€ 2.00

17

0910010004
ref: 17

BOLT 10X9

€ 1.00

18

0916810002
ref: 18

GASKET(10X14X3.6) (NAS)

€ 2.00

19

1478129600
ref: 19
14781-29610

COVER,MUFFLER

€ 35.50

20

1478129610
ref: 20

COVER,MUFFLER

€ 35.50

21

0211206108
ref: 21
02112-06107

SCREW

€ 1.50

22

0916806005
ref: 22
09168-06105

GASKET 6.2X12X1.5 (MCA)

€ 2.00

23

0832211068
ref: 23
08322-0106B

WASHER 6MM

€ 2.00

24

0832121068
ref: 24
08321-01067

LOCK WASHER

€ 2.50

25

1479929600
ref: 25

EMBLEM,MUFFLER COVER

€ 0.00

26

1479929601
ref: 26

EMBLEM,MUFFLER COVER

€ 4.00

27

0914803004
ref: 27
09148-03011

NUT

€ 2.00

28-1

0112208208
ref: 28-1
01500-08207

BOLT

€ 3.00

28-2

0112208168
ref: 28-2
01500-0816B

BOLT

€ 2.00

29

0832221088
ref: 29
08322-01087

WASHER

€ 2.00

30

0832121088
ref: 30
08321-01087

LOCK WASHER

€ 2.00

31

1477016440
ref: 31
14700-40810

DAMPER,MUFFLER SUPPORT

€ 28.00

32

0112208358
ref: 32
01500-0835B

** SUPERSEEDED

€ 3.50

33

0831211088
ref: 33
08310-00087

NUT

€ 2.00

34

0832121088
ref: 34
08321-01087

LOCK WASHER

€ 2.00

35

0832211088
ref: 35
08322-01087

WASHER

€ 2.00

all assemblies
