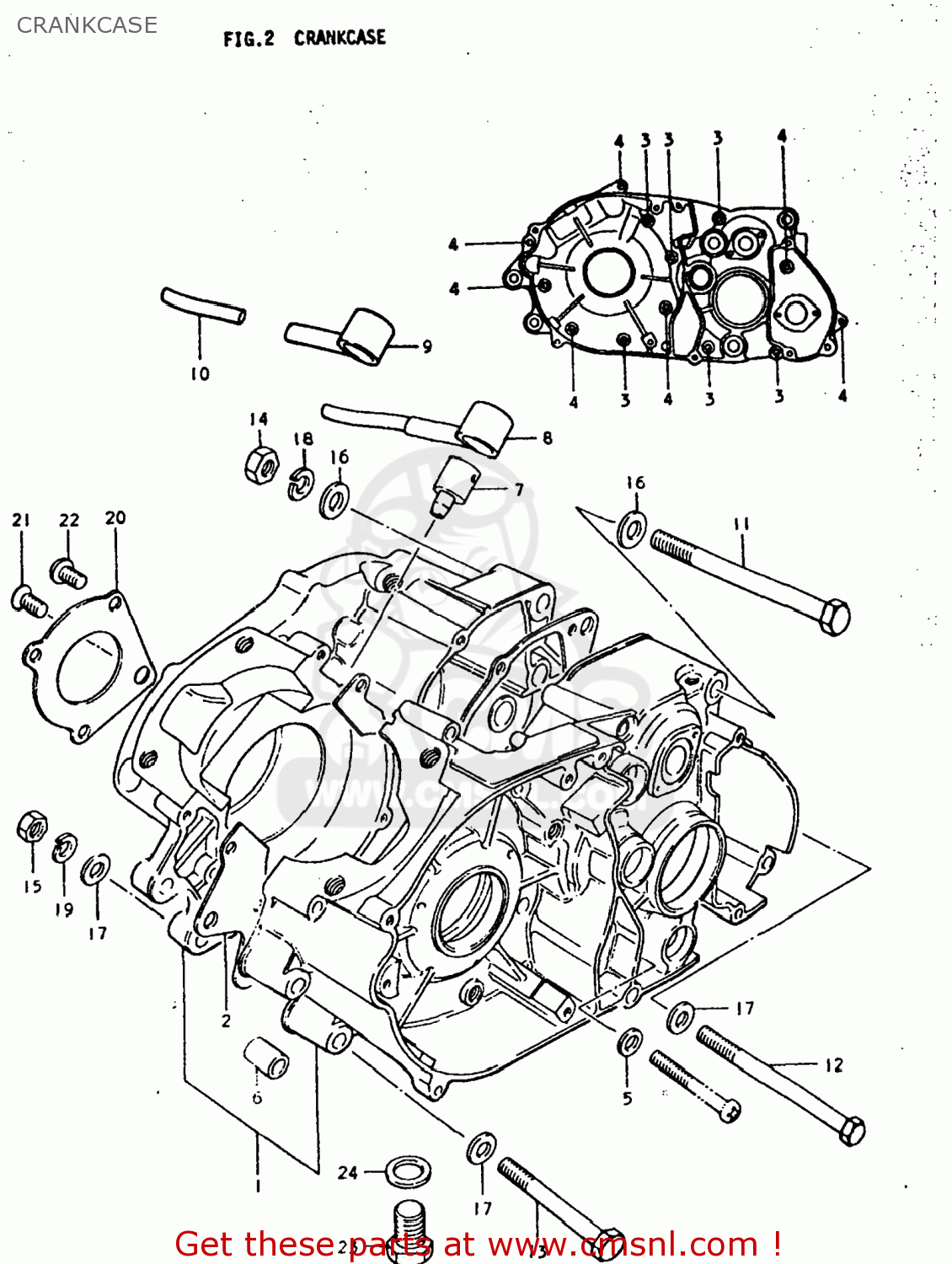

CRANKCASE

ref

part #

description

quantity

1-1

1130029821
ref: 1-1
11300-29830

CRANKCASE SET

€ 255.50

1-2

1130029830
ref: 1-2

CRANKCASE SET

€ 255.50

2

1148129100
ref: 2

GASKET,CRANKCASE (MCA)

€ 7.00

3

0211206657
ref: 3

SCREW

€ 2.00

4

0211206458
ref: 4
02112-06457

SCREW (6X45)

€ 2.00

5

0832211068
ref: 5
08322-0106B

WASHER 6MM

€ 2.00

6

0920613001
ref: 6
04211-13189

PIN

€ 2.50

7

2482109000
ref: 7
24821-09001

PLUG,TRANSMISSION BREATHER

€ 5.50

8

2482226000
ref: 8
24822-20000

PLUG,BREATHER

€ 19.00

8

2482226000
ref: 8
24822-20000

PLUG,BREATHER

€ 19.00

9

2482220000
ref: 9

GASKET (NAS)

€ 16.00

10

0934403020
ref: 10
09351-35653-600

HOSE

€ 5.50

11

0910010060
ref: 11
09116-10032

BOLT 10X120

€ 3.50

12

0910008078
ref: 12

BOLT 8X120

€ 4.50

13

0112208708
ref: 13
01500-0870B

BOLT

€ 2.50

14

0831212108
ref: 14
08310-00107

NUT

€ 2.50

15

0831211088
ref: 15
08310-00087

NUT

€ 2.00

16

0832211108
ref: 16
08322-01107

WASHER

€ 2.50

17

0832211088
ref: 17
08322-01087

WASHER

€ 2.00

18

0832121088
ref: 18
08321-01087

LOCK WASHER

€ 2.00

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20-1

1252129100
ref: 20-1
12521-29102

PLATE,OIL RESERVOIR

€ 5.50

20-1

1252129100
ref: 20-1
12521-29102

PLATE,OIL RESERVOIR

€ 5.50

20-2

1252129102
ref: 20-2

PLATE,OIL RESERVOIR

€ 5.00

21

0212206128
ref: 21
02122-06127

SCREW

€ 3.00

22

0211206128
ref: 22
02112-06127

SCREW 6X12

€ 2.00

23

0924714007
ref: 23
09247-14025

PLUG

€ 3.50

24

0916814004
ref: 24

GASKET(14X19.2X2) (NAS)

€ 2.50
