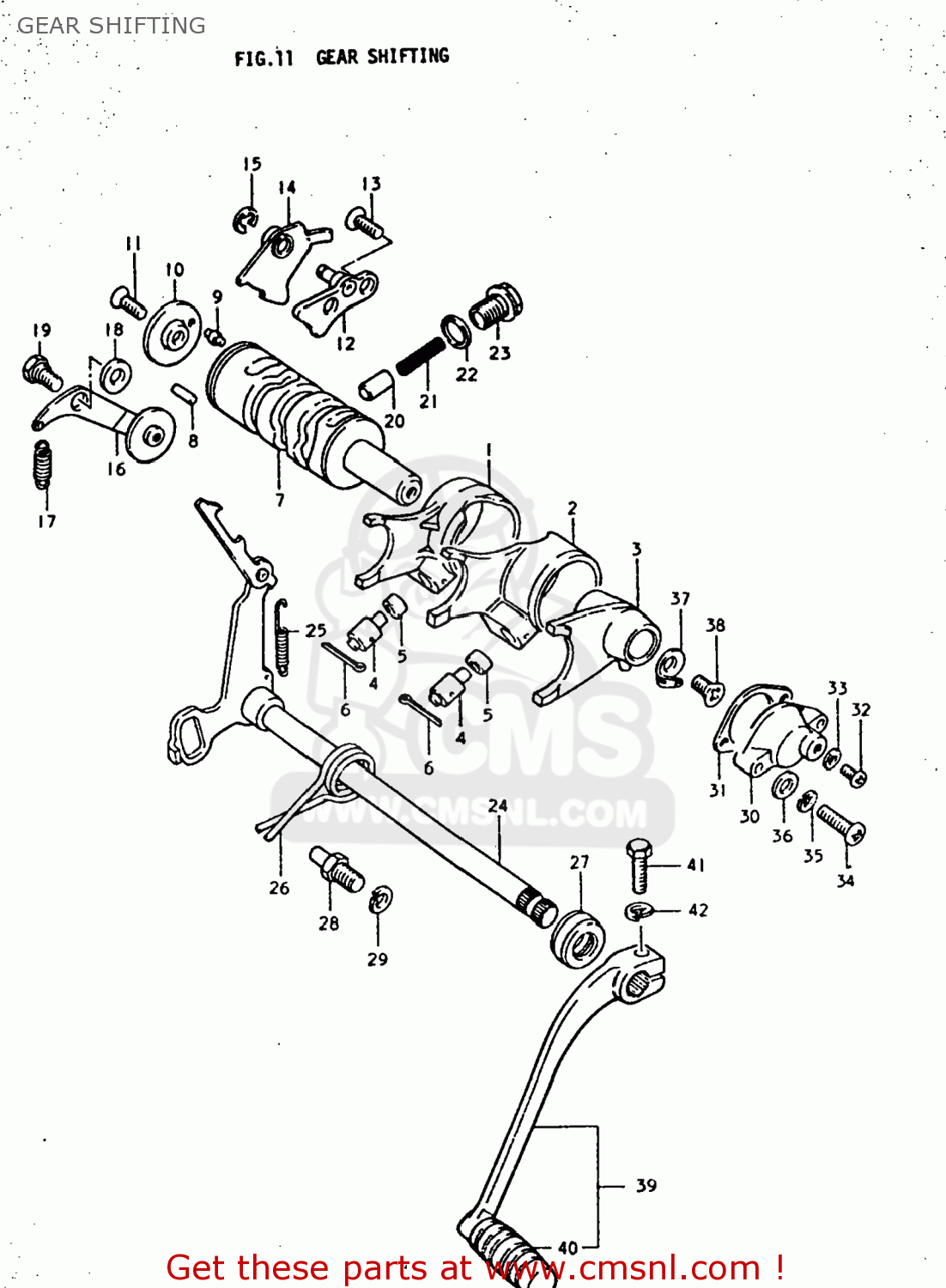

GEAR SHIFTING

ref

part #

description

quantity

1

2521129100
ref: 1

FORK,GEAR SHIFT NO.1

€ 13.50

2

2522129100
ref: 2

FORK,GEAR SHIFT NO.2

€ 19.50

3

2581129100
ref: 3

FORK, REDUCTION GEAR.

€ 22.00

4-1

0920910003
ref: 4-1

PIN

€ 8.50

4-2

0920910002
ref: 4-2

PIN

€ 8.50

5

0918006004
ref: 5
09180-06086

SPACER

€ 2.50

6

0411125208
ref: 6
04111-2520A

PIN 25X20

€ 2.00

7-1

2531129100
ref: 7-1

CAM,GEAR SHIFT

€ 0.00

7-2

2531129101
ref: 7-2

CAM,GEAR SHIFT

€ 0.00

8

0926104002
ref: 8

ROLLER(4X13.8)

€ 1.50

9

0920904012
ref: 9

PIN

€ 2.50

10

2532228030
ref: 10

RETAINER,GEAR SHIFT CAM DR PIN

€ 6.50

11

0212206208
ref: 11
02122-0620A

SCREW

€ 2.00

12

2534012101
ref: 12

GUIDE,GEAR SHIFT CAM

€ 11.50

13

0212206168
ref: 13
02122-06167

SCREW

€ 2.00

14-1

2537012100
ref: 14-1
25370-12101

PAWL,GEAR SHIFTING CAM

€ 5.50

14-2

2537012101
ref: 14-2

PAWL,GEAR SHIFT CAM STOPPER

€ 5.50

15

0833211058
ref: 15
08332-1105A

E RING

€ 1.50

16

2535028001
ref: 16

STOPPER,GEAR SHIFT CAM

€ 12.00

17

0944307014
ref: 17

SPRING

€ 2.00

18

0916006022
ref: 18

WASHER(6.5X16X2.3)

€ 1.50

19

0911106003
ref: 19

BOLT(6X16.1)

€ 1.50

20

2535118000
ref: 20
25351-39300

STOPPER,GEAR SHIFTING

€ 5.00

21

0944005018
ref: 21

SPRING

€ 14.00

22

0916814004
ref: 22

GASKET(14X19.2X2) (NAS)

€ 2.50

23

2535211000
ref: 23
25352-11010

BOLT,GEAR SHAFT CAM STOPPER

€ 4.50

24

2551029100
ref: 24

SHAFT,GEAR SHIFT

€ 47.00

25

0944306008
ref: 25

SPRING

€ 2.00

26

0944426008
ref: 26

SPRING

€ 4.50

27

0928512002
ref: 27
09285-12006

OIL SEAL

€ 7.00

28

2567119000
ref: 28

STOPPER,GEAR SHIFT ARM

€ 5.50

29

0832121108
ref: 29
08321-01107

LOCK WASHER

€ 2.00

30

3772126000
ref: 30

BODY,GEAR SHIFT SWITCH

€ 10.50

31

3771226000
ref: 31

3771226000

32

0211103048
ref: 32
02112-03047

SCREW

€ 2.00

33

0832221038
ref: 33
08322-01037

WASHER

€ 2.00

34

0211104208
ref: 34
02112-0420A

SCREW

€ 1.00

35

0832121048
ref: 35
08321-0104A

LOCK WASHER

€ 2.00

36

0832221048
ref: 36
08322-01047

WASHER

€ 2.00

37

3771105101
ref: 37

CONTACT,GEAR SHIFT SWITCH

€ 4.00

38

0212206128
ref: 38
02122-06127

SCREW

€ 3.00

39-1

2560029100
ref: 39-1
25600-29101

LEVER ASSEMBLY,GEAR SHIFTING

€ 26.00

39-2

2560029101
ref: 39-2

LEVER ASSEMBLY,GEAR SHIFTING

€ 26.00

40

2565216500
ref: 40

RUBBER,GEAR SHIFT PEDAL

€ 4.00

41

0111206208
ref: 41
01500-06207

BOLT

€ 2.00

42

0832121068
ref: 42
08321-01067

LOCK WASHER

€ 2.50

all assemblies
