LEFT HANDLE SWITCH
TC185 1974 (L) USA (E03)

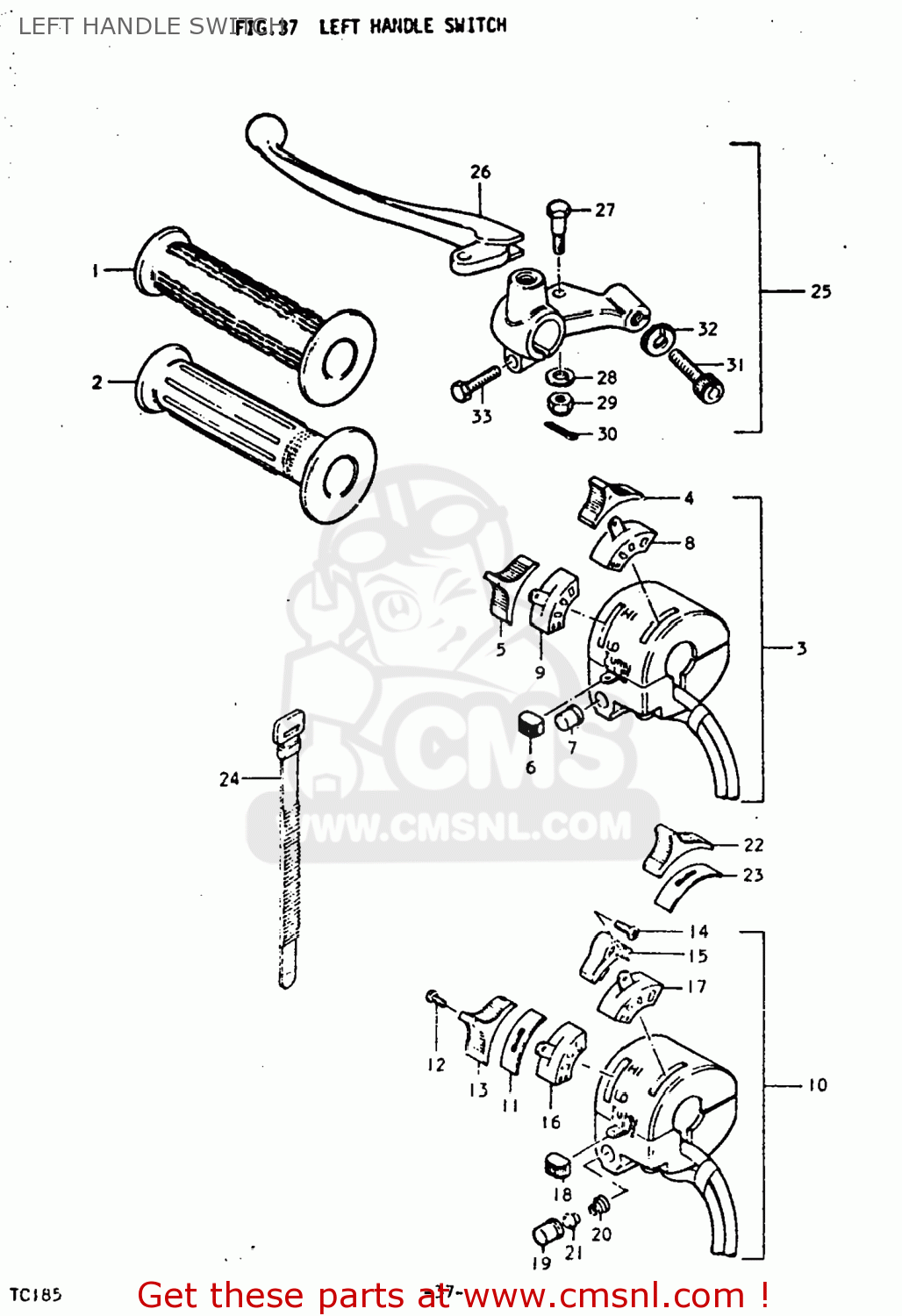

Left handle switch diagram TC185 1974 (L) USA (E03)
LEFT HANDLE SWITCH TC185 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721115110
ref: 1
GRIP
€ 30.00
2
5721128600
ref: 2
GRIP,L
€ 10.00
3-1
5770029150
ref: 3-1
SWITCH ASSEMBLY,HANDLE
€ 44.00
3-2
5770029151
ref: 3-2
SWITCH ASSEMBLY,HANDLE
€ 44.00
4
5771228051
ref: 4
KNOB,HANDLE SWITCH
€ 3.00
5
5771328050
ref: 5
KNOB,HANDLE SWITCH,UPPER
€ 4.00
6
5774228050
ref: 6
KNOB,HANDLE SWITCH
€ 3.50
7
5775128050
ref: 7
BUTTON, HORN
€ 2.50
8
5773029150
ref: 8
BLOCK, LIGHTING SWITCH SILDIN (L,ML,M)
€ 2.50
8
5773029150
ref: 8
BLOCK, LIGHTING SWITCH SILDIN (L,ML,M)
€ 2.50
9-1
5753028050
ref: 9-1
SLIDING BLOCK, DIMMER SWITCH
€ 37.00
9-2
5753028051
ref: 9-2
SLIDING BLOCK, DIMMER SWITCH
€ 37.00
10
3740029610
ref: 10
SWITCH ASSEMBLY,HANDLE,LEFT
€ 19.00
11
5771928050
ref: 11
37422-28450
PLATE,DIMMER KNOB
€ 2.50
12
0322103088
ref: 12
03221-03083
SCREW, DIMMER
€ 2.00
13
5771328050
ref: 13
KNOB,HANDLE SWITCH,UPPER
€ 4.00
14
0323103108
ref: 14
SCREW
€ 2.00
15
3741428660
ref: 15
KNOB
€ 2.50
16
5753028051
ref: 16
SLIDING BLOCK, DIMMER SWITCH
€ 37.00
17
5773029151
ref: 17
BLOCK, LIGHTING
€ 0.00
18
5774228050
ref: 18
KNOB,HANDLE SWITCH
€ 3.50
19
5775128050
ref: 19
BUTTON, HORN
€ 2.50
20
5776128050
ref: 20
SPRING,BUTTON
€ 3.50
21
3752228050
ref: 21
PLATE,HORN BUTTON
€ 1.50
22
5771228052
ref: 22
KNOB,HANDLE SWITCH
€ 3.50
23
5771428051
ref: 23
37412-28450
PLATE,LIGHTING KNOB
€ 3.50
24
0940712402
ref: 24
CLAMP(L:120)
€ 3.00
25-1
5750018610
ref: 25-1
LEVER ASSEMBLY
€ 45.00
25-1
5750018610
ref: 25-1
LEVER ASSEMBLY
€ 45.00
25-2
5750026012
ref: 25-2
57500-30501
LEVER ASSEMBLY
€ 45.00
26
5762031010
ref: 26
57620-45010
LEVER,CLUTCH
€ 35.00
27
5743111010
ref: 27
57431-11013
BOLT,LEVER
€ 6.00
28
0832121068
ref: 28
08321-01067
LOCK WASHER
€ 2.50
29
5743311010
ref: 29
NUT,LEVER FITTNG
€ 5.50
30
0411116158
ref: 30
04111-1620A
COTTER PIN
€ 2.00
31
5744111010
ref: 31
ADJUSTER,CABLE
€ 8.00
32
5744211010
ref: 32
NUT,CABLE ADJUSTER
€ 4.00
33
0111206208
ref: 33
01500-06207
BOLT
€ 2.00
