AIR CLEANER (MODEL V)

TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

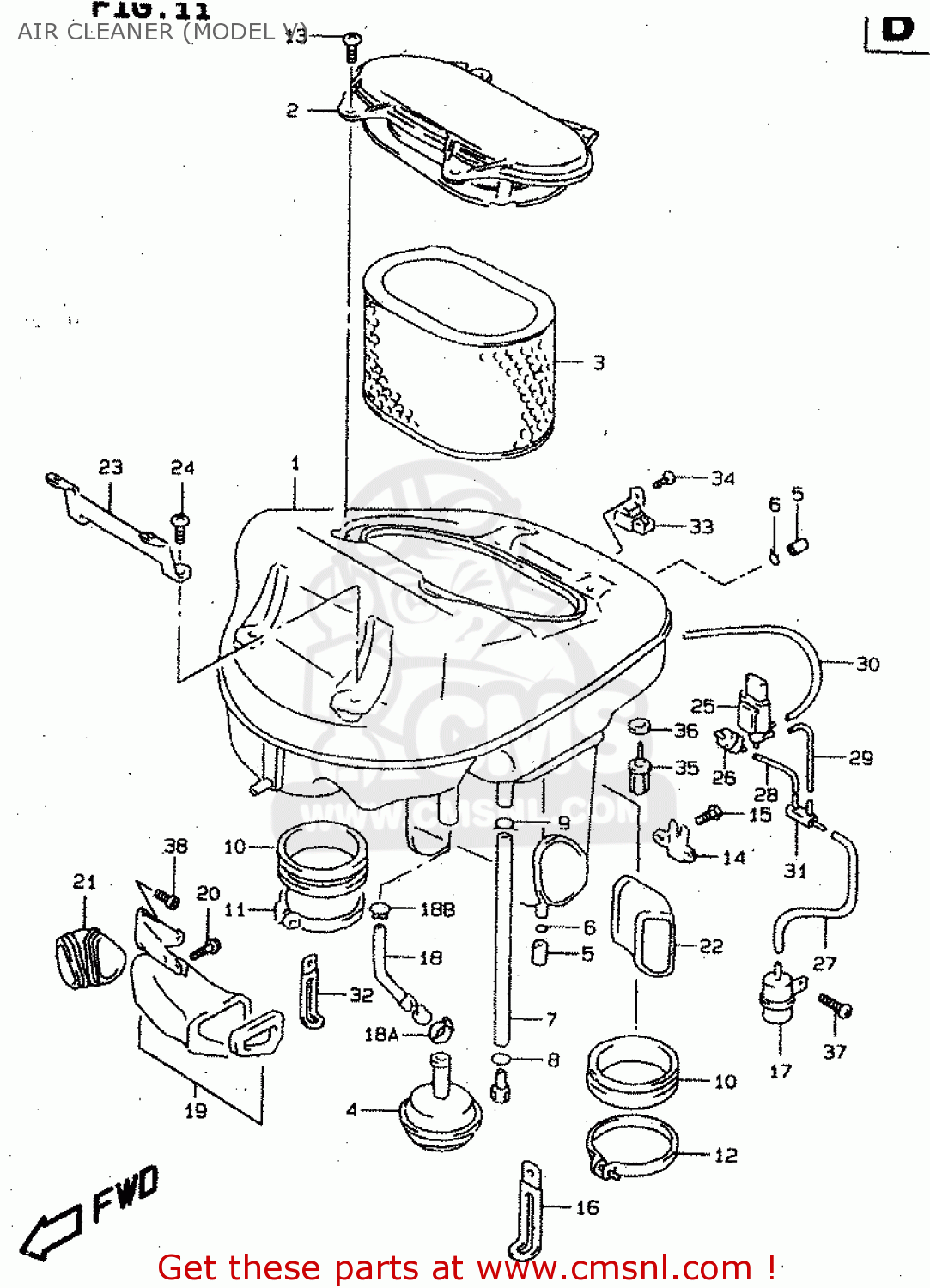

Air cleaner (model v) diagram TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

AIR CLEANER (MODEL V) TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)
AIR CLEANER (MODEL V) TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)
AIR CLEANER (MODEL V) TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1370002F00
ref: 1
CLEANER ASSY,AIR
€ 318.00
1
1370002F10
ref: 1
E18, E39
CLEANER ASSEMBLY,AIR
1370002F10
€ 318.00
2
1374002F00
ref: 2
CAP,AIR CLEANER
1374002F00
€ 30.00
3
1378002F00
ref: 3
FILTER,AIR CLEANER
1378002F00
€ 34.50
4
1389502F00
ref: 4
DIAPHRAGM,CONT VALVE
€ 46.00
5
1385941B10
ref: 5
PLUG
1385941B10
€ 5.50
5
1385941B10
ref: 5
E18, E39
PLUG
1385941B10
€ 5.50
6
0940114301
ref: 6
CLIP
0940114301
€ 2.00
6
0940114301
ref: 6
E18, E39
CLIP
0940114301
€ 2.00
7
1387011218
ref: 7
TUBE,DRAIN
€ 7.00
8
0940111101
ref: 8
CLIP
0940111101
€ 2.50
9
0940113409
ref: 9
CLIP
0940113409
€ 2.50
10
1388102F00
ref: 10
TUBE,OUTLET
1388102F00
€ 15.00
11
1382602F00
ref: 11
CLAMP
1382602F00
€ 7.50
12
1382602F00
ref: 12
CLAMP
1382602F00
€ 7.50
13
0214205123
ref: 13
SCREW 5X12
0214205123
€ 1.50
14
1811602F00
ref: 14
BRACKET,SOLENOID VALVE
€ 4.00
15
0214205103
ref: 15
SCREW
0214205103
€ 2.50
16
0940406432
ref: 16
<-09404-06206
CLAMP(L:65)
0940406432
€ 2.50
17
1371502F00
ref: 17
CHAMBER,VACUUM
1371502F00
€ 20.50
18
1385102F00
ref: 18
TUBE,BREATHER
€ 28.00
18A
0940228511
ref: 18A
CLAMP
0940228511
€ 8.50
18B
0940114403
ref: 18B
CLIP
€ 3.00
19
1389002F00
ref: 19
DUCT,AIR CLEANER
1389002F00
€ 56.50
20
0158006123
ref: 20
BOLT
€ 2.00
21
1389202F00
ref: 21
BOOT,AIR INLET,R
1389202F00
€ 16.00
22
1389302F00
ref: 22
BOOT,AIR INLET,L
1389302F00
€ 14.50
23
1398002F00
ref: 23
BRACKET,AIR CLEANER
€ 8.50
24
0214206123
ref: 24
SCREW 6X12
0214206123
€ 2.00
25
1811570G10
ref: 25
VALVE ASSY,3WAY SOLENOID
€ 73.50
26
9556978040
ref: 26
VALVE,CHECK
€ 24.00
27
0935540805600
ref: 27
L:600->260
HOSE(4X8X600)
0935540805600
€ 9.00
28
0935540805600
ref: 28
L:600->40
HOSE(4X8X600)
0935540805600
€ 9.00
29
0935540805600
ref: 29
L:600->70
HOSE(4X8X600)
0935540805600
€ 9.00
30
0935540805600
ref: 30
L:600->380
HOSE(4X8X600)
0935540805600
€ 9.00
31
0936704009
ref: 31
JOINT
0936704009
€ 4.00
32
0940406433
ref: 32
CLAMP(L:80)
0940406433
€ 3.00
33
1562002F00
ref: 33
SENSOR,BOOST
€ 280.50
34
0214205103
ref: 34
SCREW
0214205103
€ 2.50
35
1365061B00
ref: 35
SENSOR,WATER TEMP
1365061B00
€ 60.00
36
0916812016
ref: 36
GASKET(12.2X21X0.8) (NAS)
0916812016
€ 2.50
37
0214205123
ref: 37
SCREW 5X12
0214205123
€ 1.50
38
0158006163
ref: 38
BOLT
0158006163
€ 2.50
