SPEEDOMETER (MODEL V)

TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

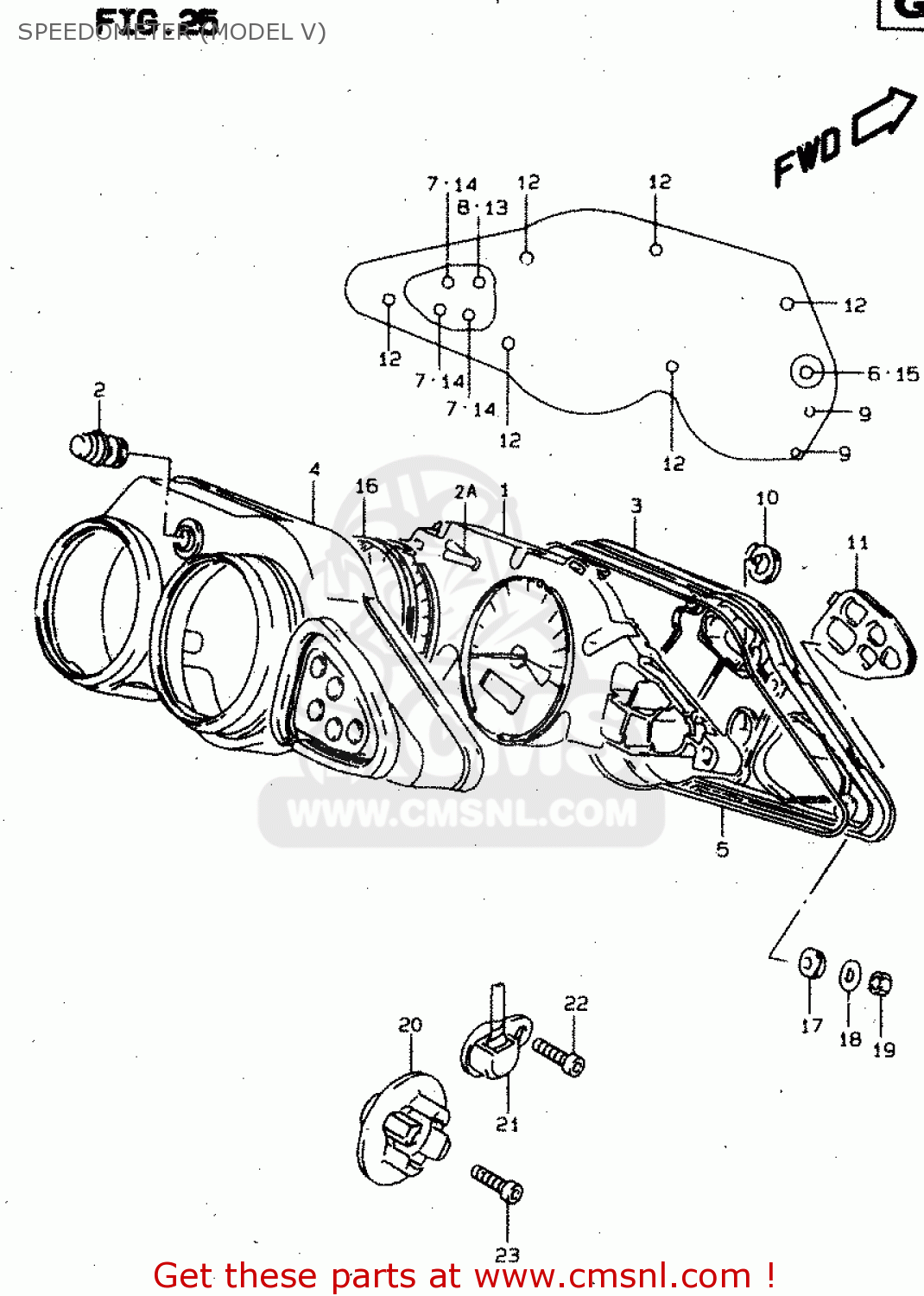

Speedometer (model v) diagram TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

SPEEDOMETER (MODEL V) TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

SPEEDOMETER (MODEL V) TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3411902F20
ref: 1

SPEEDOMETER(MILE/KILO)

€ 718.00

1

3411902F10
ref: 1
E4, E18, E22, E24, E

SPEEDOMETER(KILO)

€ 718.00

2

3412402F00
ref: 2

SWITCH,GUM

€ 9.50

2A

3412302F00
ref: 2A

LEVER

€ 5.50

3

3413002F00
ref: 3

CASE ASSEMBLY

€ 77.50

4

3415002F00
ref: 4

VISOR

€ 103.50

5

3415302F00
ref: 5

GASKET (NAS)

€ 9.50

6

3417271E70
ref: 6

SOCKET,BULB

€ 7.50

7

3417319D00
ref: 7

SOCKET

€ 17.00

8

3417319D70
ref: 8

SOCKET

€ 12.00

9

3418333DC0
ref: 9

SCREW(4X14)

€ 3.00

10

3419802F00
ref: 10

BLIND,CAP

€ 12.00

11

3419802F10
ref: 11

BLIND

€ 12.50

12

0321104203
ref: 12

SCREW

€ 1.50

13

0947112085
ref: 13

BULB(12V3W,WB371,T7)

€ 3.00

14

0947112100
ref: 14

BULB(12V1.7W,WB372,T7)

€ 2.00

15

0947112189
ref: 15

BULB(14V,0.84W)

€ 4.50

16

3418802F00
ref: 16

CUSHION

€ 5.00

17

3499643410
ref: 17

CUSHION,METER

€ 3.00

18

0916005037
ref: 18

WASHER(5.5X16X1.2)

€ 1.50

19

0831000053
ref: 19

NUT

€ 2.50

20

3498142E00
ref: 20

ROTOR,SPEED

€ 16.00

21

3499033E10
ref: 21

SENSOR,SPEED

€ 112.50

22

0712005103
ref: 22

BOLT

€ 2.00

23

0713008203
ref: 23

BOLT

€ 3.00
