REAR FENDER (MODEL W/X)

TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

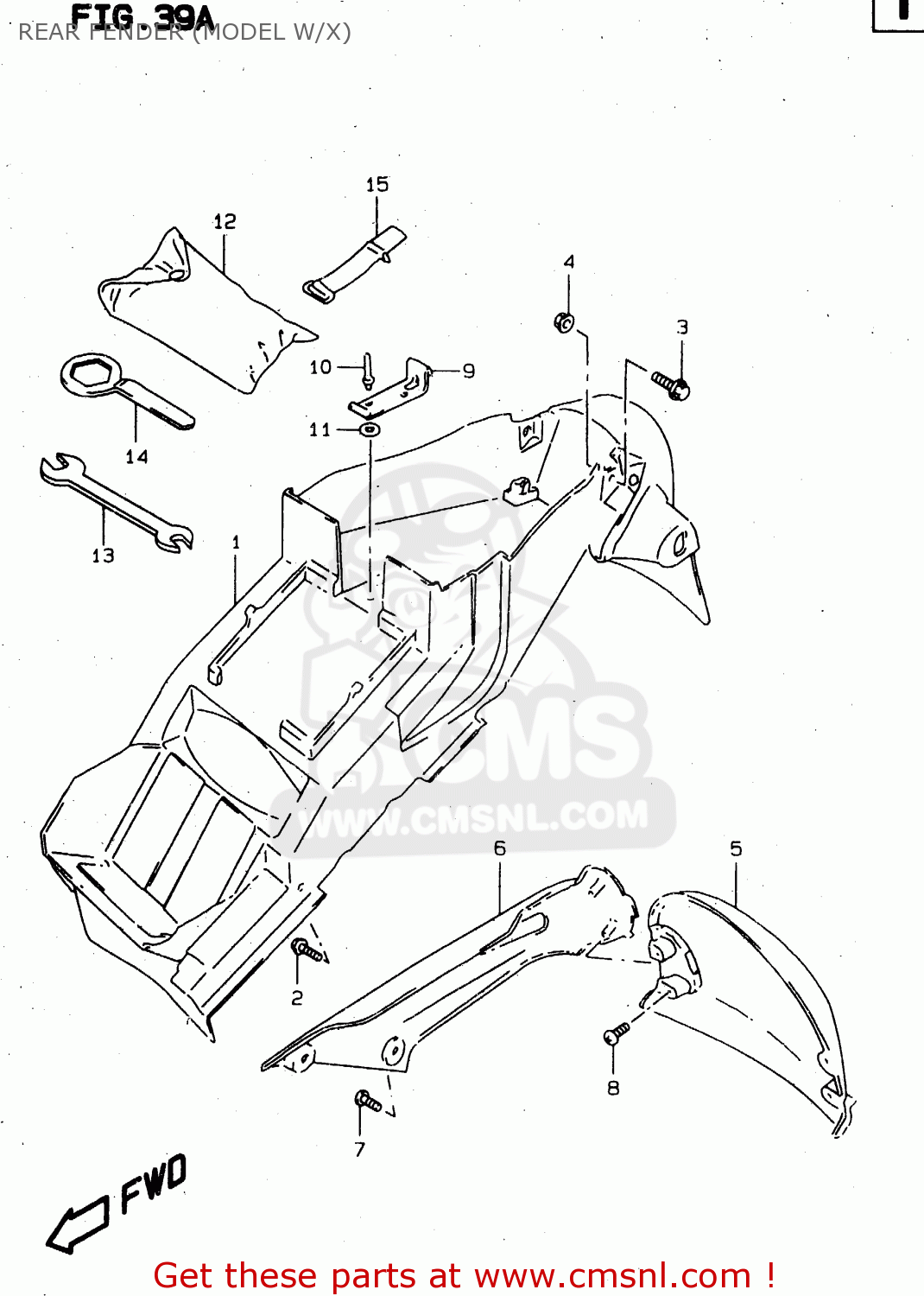

Rear fender (model w/x) diagram TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

6311102F00
ref: 1

FENDER,RR

€ 92.50

0911106061
ref: 2

BOLT 6X16.5

€ 2.50

0911606144
ref: 3

BOLT 6X16

€ 2.50

0831610063
ref: 4

NUT

€ 2.50

6311202F00
ref: 5
E18, E22, E24

FENDER,RR LOW CTR

€ 39.00

6311302F00
ref: 6
E18, E22, E24

FENDER,RR LOW,R

€ 44.00

0912266004
ref: 7
E18, E22, E24

SCREW (6X14)

€ 2.00

0354105163
ref: 8
E18, E22, E24

SCREW

€ 1.50

6346602F00
ref: 9

HOLDER,TOOL

€ 7.50

0922904020
ref: 10

RIVET

€ 2.50

0832201043
ref: 11

WASHER

€ 5.00

0980021008
ref: 12

TOOL ASSY

€ 74.50

0981300027
ref: 13

OPEN SPANNER(8X10)

€ 3.00

0981700034
ref: 14

RING SPANNER(36)

€ 16.50

4743502F00
ref: 15

BAND,TOOL

€ 7.00
