HANDLEBAR

TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

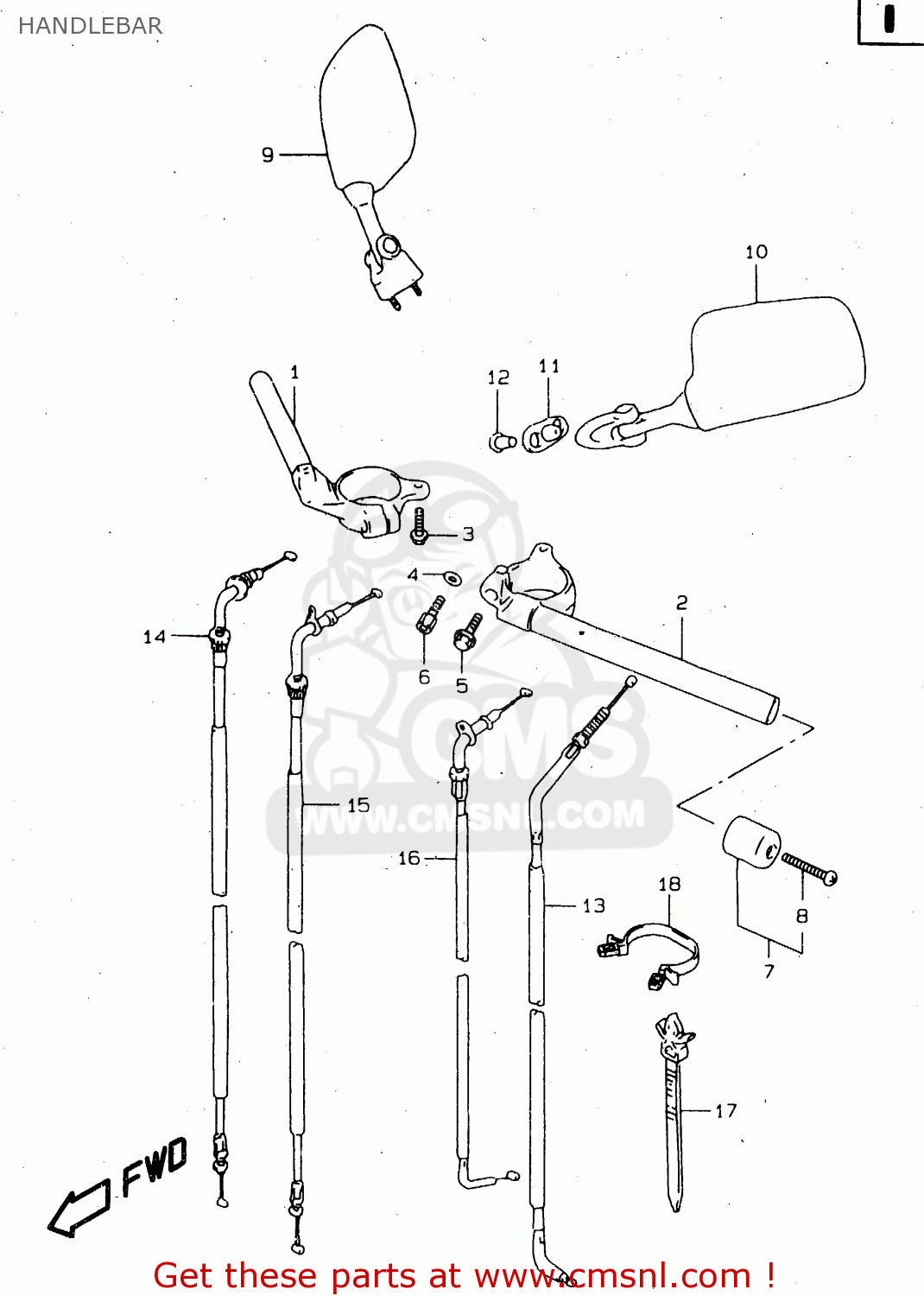

Handlebar diagram TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

HANDLEBAR TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

HANDLEBAR TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5611102F00
ref: 1

HANDLEBAR,R

€ 152.50

2

5615102F00
ref: 2

HANDLEBAR,L

€ 145.50

3

0155006163
ref: 3

BOLT

€ 2.50

4

0832201083
ref: 4
MODEL V/W

WASHER

€ 1.50

5

0910308269
ref: 5
MODEL V/W

BOLT(8X30)

€ 2.50

6

5612102F00
ref: 6
MODEL V/W

BOLT,HANDLEBAR,L

€ 9.00

6

0910308269
ref: 6
MODEL X

BOLT(8X30)

€ 2.50

7

5620004821
ref: 7

BALANCER SET,HANDLEBAR

€ 42.50

8

0212206603
ref: 8

SCREW

€ 3.00

9

5650022D11
ref: 9

MIRROR ASSY,RR VIEW,R

€ 247.50

10

5660022D11
ref: 10

MIRROR ASSY,RR VIEW,L

€ 218.00

11

9457622D00
ref: 11

CUSHION,RR VIEW MIRRORR

€ 6.00

12

5661917C00
ref: 12

NUT,RR VIEW MIRROR

€ 8.00

13

5820002F00
ref: 13

CABLE ASSY,CLUTCH

€ 33.00

14

5830002F00
ref: 14
MODEL V

CABLE ASSY,THROTTLE NO.1

€ 38.50

14

5830002F01
ref: 14
MODEL W/X

CABLE ASSY,THROTTLE NO.1

€ 38.50

15

5830002F10
ref: 15
MODEL V

CABLE ASSY,THROTTLE NO.2

€ 21.50

15

5830002F11
ref: 15
MODEL W/X

CABLE ASSY,THROTTLE NO.2

€ 21.50

16

5841002F00
ref: 16

CABLE,STARTER

€ 30.50

17

0940711402
ref: 17
MODEL V

CLAMP(L:90)

€ 2.50

18

0940324302
ref: 18
MODEL W/X

CLAMP

€ 0.00
