LABEL (MODEL W/X)

TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

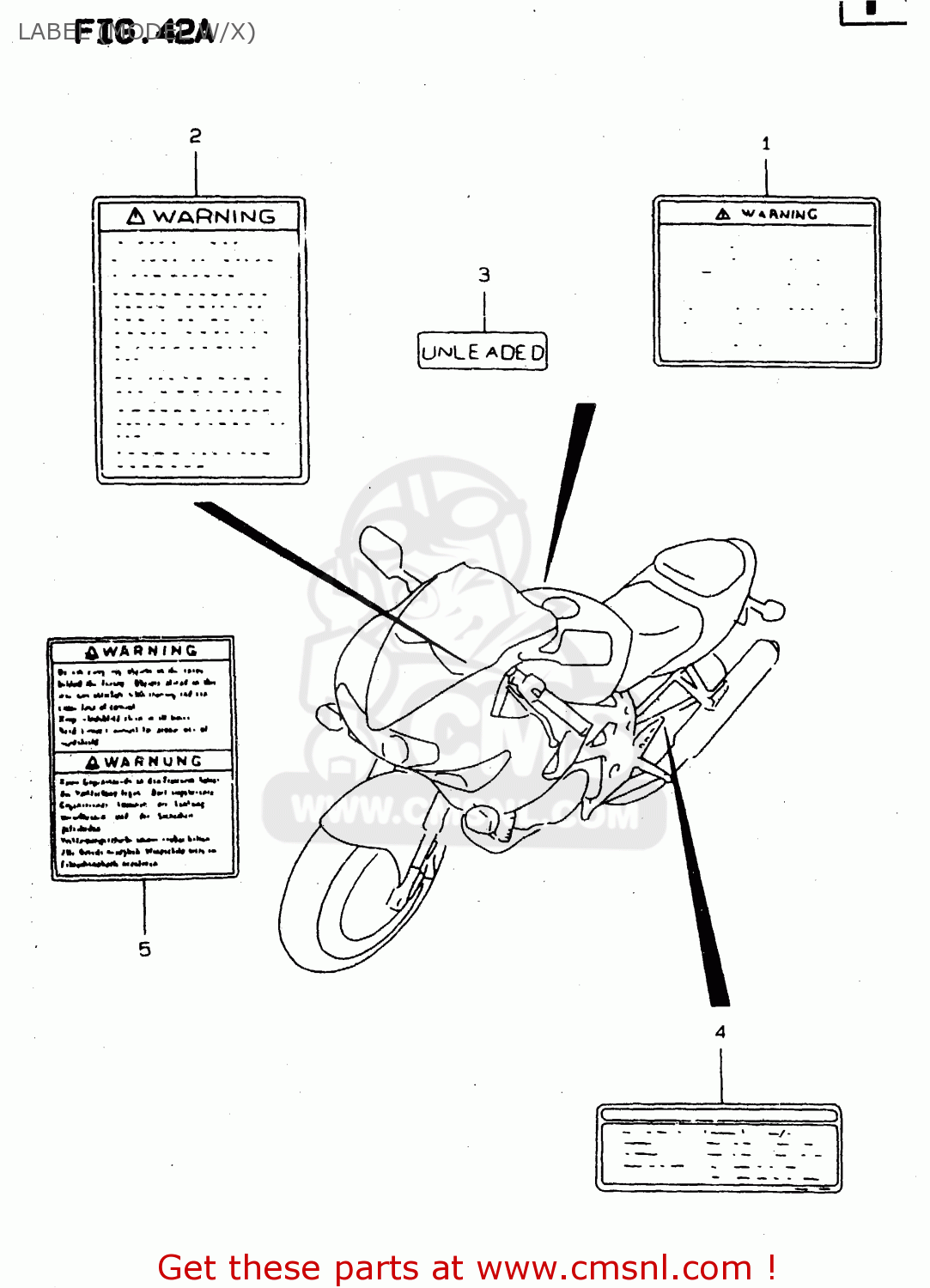

Label (model w/x) diagram TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

LABEL (MODEL W/X) TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

LABEL (MODEL W/X) TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6831933E00
ref: 1

LABEL (WARNING SAFETY),E

€ 8.00

1

6831933E20
ref: 1
E18, E22, E34

LABEL,WARNING

€ 8.00

1

6831933E30
ref: 1
E4, E18, E34

LABEL,WARNING

€ 8.50

1

6831933E40
ref: 1
E18, E34

LABEL,WARNING

€ 8.00

1

6831933E50
ref: 1
E34

LABEL,WARNING

€ 8.00

1

6831933E70
ref: 1
E25, E34

LABEL,WARNING

€ 5.50

2

6861248B00
ref: 2

LABEL (WARNING SCREEN)

€ 6.50

2

6861248B20
ref: 2
E18, E22

LABEL (WARNING,SCREEN)

€ 6.50

2

6861248B10
ref: 2
E4, E34

LABEL (WARNING SCREEN)

€ 6.50

3

6862317D00
ref: 3
E2

LABEL,CAUTION

€ 4.00

3

8693273060
ref: 3
E24

LABEL,FUEL CAUTION

€ 4.00

4

6833202F20
ref: 4

LABEL,TIRE INFORMATION

€ 6.50

5

6861321E10
ref: 5

LABEL,WARNING STEERING

€ 8.50

5

6861321E00
ref: 5
E4, E34

LABEL,WARNING STEERING

€ 7.50

6

9901102F52042
ref: 6
MODEL V/W

O.M. TL1000S W

€ 16.50

6

9901102F53042
ref: 6
MODEL X, DRAWING NOT

MANUAL, OWNER'S

€ 29.50
