FRONT CALIPERS

TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

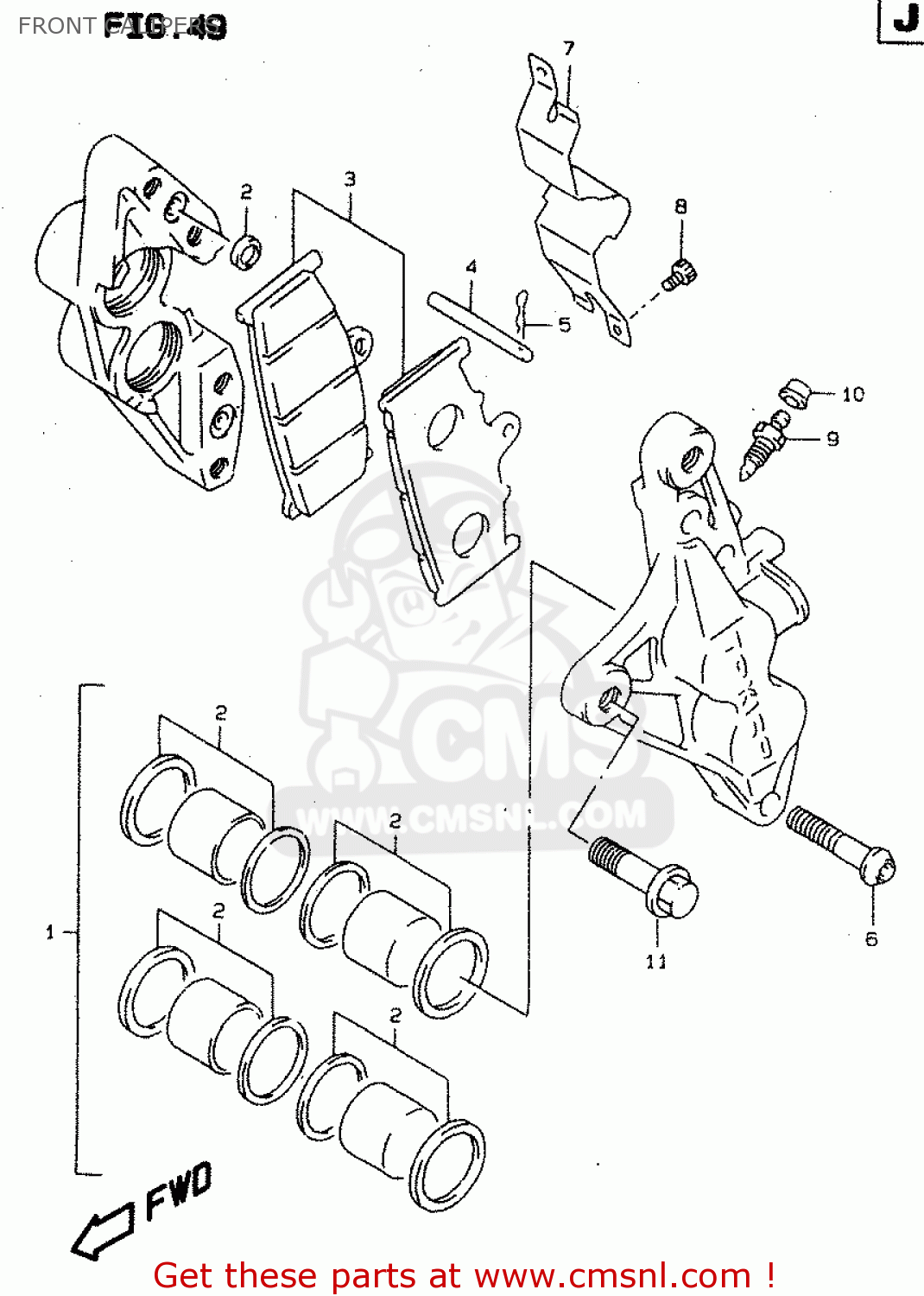

Front calipers diagram TL1000S 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

5910034E00
ref: 0

CALIPER ASSY,FR,R

€ 621.00

5930034E00
ref: 0

CALIPER ASSY,FR,L

€ 531.50

5930034810
ref: 1

PISTON SET

€ 82.00

5930034820
ref: 2

SEAL SET,PISTON

€ 37.00

5930034830
ref: 3

PAD SET (NAS)

€ 43.00

6914145000
ref: 4

PIN,PAD

€ 6.50

6914245000
ref: 5

CLIP,PAD PIN

€ 4.50

5914534E00
ref: 6

BOLT,HOUSING

€ 8.00

5915222D01
ref: 7

COVER,CALIPER DUST,R

€ 15.00

5915122D01
ref: 7

COVER,CALIPER DUST,L

€ 15.00

5915322D00
ref: 8

SCREW

€ 4.50

5912118410
ref: 9

BLEEDER

€ 8.00

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

0910310296
ref: 11

BOLT(10X30)

€ 6.00
